TS12-N Square Audio Intercom
The **Verkada TS12** is an audio-only intercom with a durable, all-metal form factor and high-power audio output, designed for clear communication in environments with loud ambient noise.
SKU TS12-N-R2B-HW
Total MSRP$2,398
Hardware $1,199 + 3-year cloud license $1,199
Cloud license term
Hardware$1,199
Software · 3-yr cloud license$1,199
Total MSRP$2,398
Authorized Verkada reseller · cloud licensing configured at checkout
Overview
The Verkada TS12 is an audio-only intercom with a durable, all-metal form factor and high-power audio output, designed for clear communication in environments with loud ambient noise.
- Engineered for 95 dB SPL output at 1m at 1kHz to cut through background noise; reaches up to 110 dB when connected to an external speaker via audio line-out or amp-out
- Two-way, full duplex audio with echo cancellation and noise suppression, using 4 omnidirectional digital MEMS microphones with beamforming and a 3m / 130° pickup range
- Stainless steel body with IK10 and IP69 ratings, capable of withstanding heavy impact and rugged environmental conditions
- Ideal for camera-restricted areas like classrooms or bathrooms, providing secure, reliable communication without video

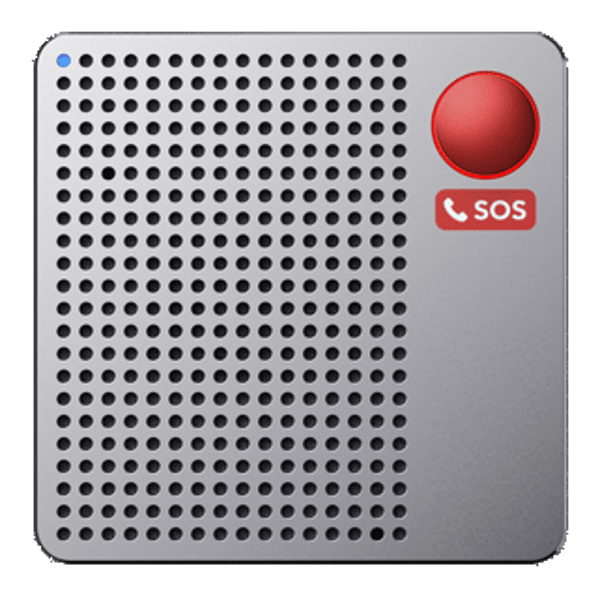

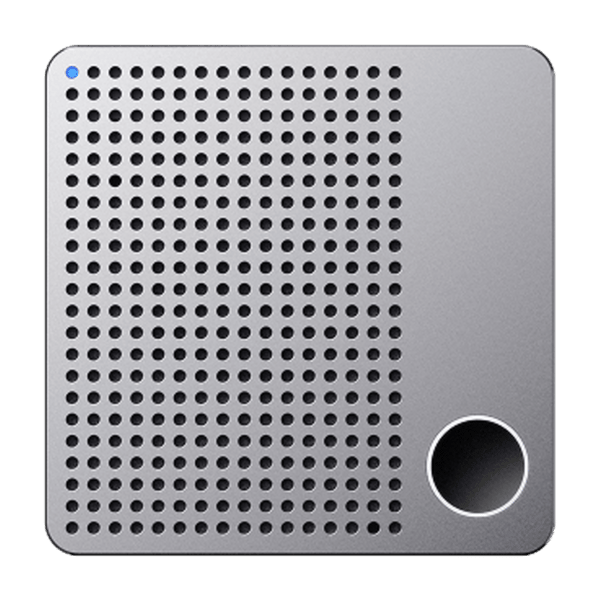

- Available in three variations: TS12-N (black button), TS12-N-RB (raised red emergency button), and TS12-N-R2B (both black and red buttons)
- Powered over PoE/PoE+/PoE++ with 32GB onboard storage and a 10-year warranty
Specifications
- Audio output
- 8W speaker; 95dB SPL at 1m / 3.3ft
- Audio streaming
- Two-way, full duplex with echo cancellation and noise suppression
- Audio input
- 4 omnidirectional digital MEMS microphones
- Inputs / outputs
- 2x dry inputs; 1x dry relay, 30VDC @ 1A (resistive load); 1x RS-485 interface; 1x power output, 12V @ 250mA; 1x audio line output (1Vrms) or amp output (16W into 4Ω or 8W into 8Ω)
- Power input
- IEEE 802.3af PoE / IEEE 802.3at PoE+ / IEEE 802.3bt PoE++
- Power consumption
- 37-57V, 0.35-0.23A
- Connectivity
- Ethernet: 10/100/1000Mbps RJ-45 cable connector for Network/PoE connection
- Rating
- IK10, IP69
- Onboard storage
- 32GB
- Construction
- Aluminum, steel, polycarbonate
- Tamper detection
- Yes
- Operating temperature
- PoE: -4°F – 122°F / -20°C – 50°C; PoE+/PoE++: -40°F – 122°F / -40°C – 50°C
- Dimensions (TS12-N)
- 5in / 128mm (H) x 5in / 128mm (W) x 2.2in / 55mm (D)
- Weight
- 1.8lb / 0.8kg
- Phone system receivers
- SIP, VoIP, PSTN, Microsoft Teams
- Compliance & safety
- FCC Part 15B Class B, ICES-003 Class B, CE, UKCA, RCM, UL/IEC 62368-1, CSA NO22.2 62368-1
- Warranty
- 10 years
