Intercoms · TD63

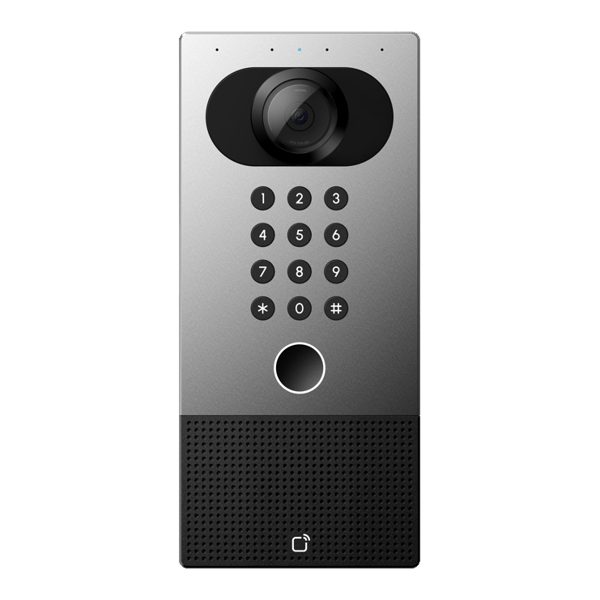

TD63 Video Intercom Keypad
The **Verkada TD63** is a versatile, all-in-one video intercom that combines video intercom, access control, and security camera capabilities in a single durable form factor built for outdoor deployments and harsh environments.
SKU TD63-HW
Total MSRP$3,398
Hardware $2,199 + 3-year cloud license $1,199
Cloud license term
Hardware$2,199
Software · 3-yr cloud license$1,199
Total MSRP$3,398
Authorized Verkada reseller · cloud licensing configured at checkout
Overview
The Verkada TD63 is a versatile, all-in-one video intercom that combines video intercom, access control, and security camera capabilities in a single durable form factor built for outdoor deployments and harsh environments.
- Combined video intercom, access control, and security camera functionality in one device, with a 12-button keypad for customized PIN access and multi-factor authentication
- 5MP camera resolution (2688 x 1944) with Wide Dynamic Range, IR LEDs, and a 130° horizontal field of view for a clear visual of high-traffic entryways day and night
- Sharp audio from four omnidirectional digital MEMS microphones, a DSP, and a 90dB speaker, delivering noise suppression and echo cancellation on every call
- Built-in card reader supports HF, LF, NFC, and Bluetooth LE credentials, plus Verkada Pass app, Apple Wallet, and Android NFC mobile credentials
- IP66 weather and IK08 impact ratings with a removable lens cover so the intercom withstands strong impact and inclement weather
- Keypad can be configured as a directory, letting visitors reach specific departments or offices by dialing a 1-3 digit call code
- 512GB onboard storage with up to 30 days SQ onboard retention, plus a 10-year warranty
Specifications
- Sensor resolution
- 5MP (2688 x 1944)
- Image sensor
- 1/2.8" Progressive CMOS
- Lens type
- Fixed
- Aperture
- F2.2
- Focal length
- 2.12mm
- Field of view
- Horizontal: 130°, Vertical: 100°, Diagonal: 160°
- IR range
- 15m / 50ft in low light
- Audio input
- 4 omnidirectional digital MEMS microphones
- Audio output
- 4W speaker; 90dB SPL at 1m / 3.3ft
- Power input
- IEEE 802.3af PoE, IEEE 802.3at PoE+ (extended temperature range)
- Power consumption
- 37-57V, 0.62-0.40A
- Connectivity
- Ethernet: 10/100/1000Mbps RJ-45 cable connector for Network/PoE connection
- Operating temperature
- -4°F – 122°F / -20°C – 50°C (802.3af PoE); -40°F – 122°F / -40°C – 50°C (802.3at PoE+)
- Rating
- IK08, IP66
- Onboard storage
- 512GB
- Maximum SQ onboard retention
- 30 days
- Inputs / outputs
- 3x dry inputs, 2x dry relays 30VDC @ 1A (resistive load), 1x RS-485 port
- Tamper detection
- Yes
- Construction
- Aluminum, steel, polycarbonate
- Dimensions
- Height: 10.4in / 263mm, Width: 4.7in / 118mm, Depth: 1.3in / 33mm
- Weight
- 2.8lb / 1.3kg
- Low frequency card compatibility
- HID Prox II 26-Bit (H10301), 37–Bit Wiegand HID H10304, 37–Bit Wiegand HID H10302, HID 35–Bit Corporate 1000
- High frequency card compatibility
- Verkada DESFire EV3, MiFare / DESFire NFC Card Serial Number
- Mobile credential compatibility
- Verkada Pass app, Apple Wallet, Android NFC
- Compliance & safety
- FCC Part 15B Class B, ICES-003 Class B, UKCA, RCM, UL/IEC 62368-1, CSA NO22.2 62368-1, UL 294 Listed Outdoor
- Warranty
- 10 years
