Intercoms · TD33

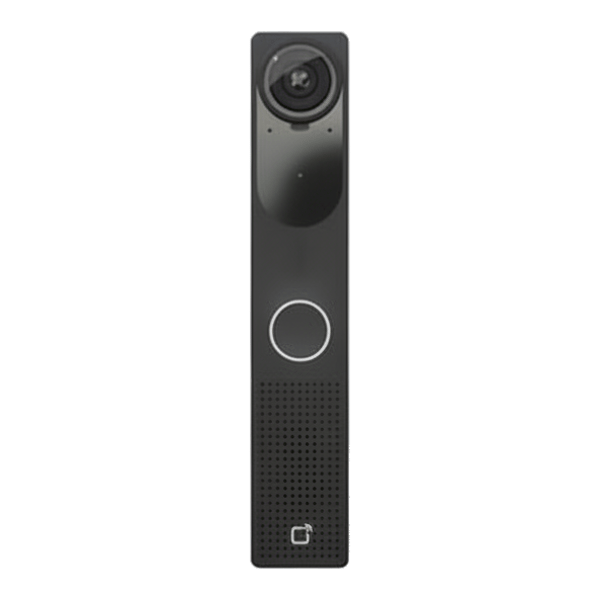

TD33 Mullion Video Intercom Reader
The **Verkada TD33** is a compact, all-in-one video intercom that combines video intercom, access control, and security camera capabilities in a slim, durable form factor built for outdoor deployments.
SKU TD33-HW
Total MSRP$2,898
Hardware $1,699 + 3-year cloud license $1,199
Cloud license term
Hardware$1,699
Software · 3-yr cloud license$1,199
Total MSRP$2,898
Authorized Verkada reseller · cloud licensing configured at checkout
Overview
The Verkada TD33 is a compact, all-in-one video intercom that combines video intercom, access control, and security camera capabilities in a slim, durable form factor built for outdoor deployments.
- All-in-one functionality: combined video intercom, access control, and security camera in one device
- 5MP camera (2688 x 1944) with Wide Dynamic Range, IR LEDs, and a 130° horizontal field of view for clear video day and night
- Slim form factor (1.7in / 42mm wide) mountable on narrow door frame mullions and other tight spaces
- Built-in card reader supports high-frequency, low-frequency, NFC, and Bluetooth LE credentials, including Verkada Pass app, Apple Wallet, and Android NFC
- Digital MEMS microphone and 80 dB speaker with advanced noise suppression and echo cancellation for two-way, full-duplex audio
- IP65 and IK07 rated to withstand strong impact and inclement weather
- 512GB onboard storage and powered over standard IEEE 802.3af PoE
Specifications
- Sensor resolution
- 5MP (2688 x 1944)
- Image sensor
- 1/2.8" Progressive CMOS
- Lens type
- Fixed
- Aperture
- F2.0
- Focal length
- 2.12mm
- Field of view
- Horizontal: 130°, Vertical: 100°, Diagonal: 160°
- IR range
- 5m / 16ft in low light
- Audio streaming
- Two-way, full duplex with echo cancellation and noise suppression
- Audio input
- 1 omnidirectional digital MEMS microphone
- Audio output
- 2W speaker; 80dB SPL at 1m / 3.3ft
- Onboard storage
- 512GB
- Maximum SQ onboard retention
- 30 days
- Power consumption
- 44-57V, 10-350 mA
- Power input
- IEEE 802.3af PoE
- Connectivity
- Ethernet: 10/100/1000Mbps RJ-45 cable connector for Network/PoE connection
- Inputs / outputs
- 2x dry inputs, 1x dry relay 30VDC @ 1A (resistive load), 1x RS-485 port
- Rating
- IK07, IP65
- Dimensions
- Height: 9.0in / 229mm, Width: 1.7in / 42mm, Depth: 1.1in / 29mm
- Weight
- 1.3lb / 0.6kg
- Operating temperature
- -40°F – 122°F / -40°C – 50°C
- Construction
- Aluminum, steel, polycarbonate
- Tamper detection
- Yes
- Low frequency card compatibility
- HID Prox II 26-Bit (H10301), 37–Bit Wiegand HID H10304, 37–Bit Wiegand HID H10302, HID 35–Bit Corporate 1000
- High frequency card compatibility
- Verkada DESFire EV3, MiFare / DESFire NFC Card Serial Number
- Mobile credential compatibility
- Verkada Pass app, Apple Wallet, Android NFC
- Compliance & safety
- FCC Part 15B Class B, ICES-003 Class B, UKCA, RCM, UL/cUL/IEC 62368-1, CSA NO22.2 62368-1, UL 294 Listed, ULC-60839-11-1 Outdoor
- Warranty
- 10 years
