Intercoms · TD53

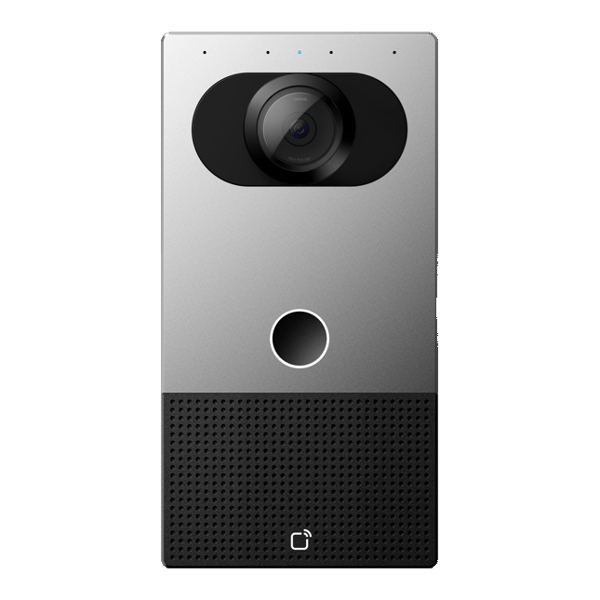

TD53 Video Intercom Reader
The **Verkada TD53** is a versatile, all-in-one device combining video intercom, access control, and security camera capabilities in a durable, outdoor-ready form factor.
SKU TD53-HW
Total MSRP$3,198
Hardware $1,999 + 3-year cloud license $1,199
Cloud license term
Hardware$1,999
Software · 3-yr cloud license$1,199
Total MSRP$3,198
Authorized Verkada reseller · cloud licensing configured at checkout
Overview
The Verkada TD53 is a versatile, all-in-one device combining video intercom, access control, and security camera capabilities in a durable, outdoor-ready form factor.
- 5MP (2688 x 1944) camera with Wide Dynamic Range, IR LEDs, and a 130° horizontal field of view for clear visibility day and night
- Built-in card reader supporting high-frequency, low-frequency, NFC, and Bluetooth LE credentials (Verkada DESFire EV3, MiFare, HID Prox/Wiegand, Verkada Pass app, Apple Wallet, Android NFC)
- Four omnidirectional MEMS microphones, a DSP, and a 4W / 90dB speaker deliver noise suppression, echo cancellation, and full-duplex two-way audio
- IP66 and IK08 rated with a removable lens cover for impact and weather resistance, suited for outdoor and harsh environments
- 512GB onboard storage (up to 30 days SQ retention) and Power over Ethernet (PoE / PoE+) for simple single-cable installation
- Access control I/O: 3 dry inputs, 2 dry relays (30VDC @ 1A), and 1 RS-485 port, with remote lock/unlock
- 10-year warranty
Specifications
- Sensor resolution
- 5MP (2688 x 1944)
- Image sensor
- 1/2.8" Progressive CMOS
- Lens type
- Fixed
- Aperture
- F2.1
- Focal length
- 2.12mm
- Field of view
- Horizontal: 130°, Vertical: 100°, Diagonal: 160°
- IR range
- 15m / 50ft in low light
- Audio streaming
- Two-way, full duplex with echo cancellation, noise suppression, and adaptive beamforming
- Audio input
- 4 omnidirectional MEMS microphones
- Audio output
- 4W speaker; 90dB SPL at 1m / 3.3ft
- Onboard storage
- 512GB
- Maximum SQ onboard retention
- 30 days
- Power input
- IEEE 802.3af PoE / IEEE 802.3at PoE+
- Connectivity
- Ethernet: 10/100/1000Mbps RJ-45 cable connector for Network/PoE connection
- Inputs / outputs
- 3x dry inputs, 2x dry relays 30VDC @ 1A (resistive load), 1x RS-485 port
- Low frequency card compatibility
- HID Prox II 26-Bit (H10301), 37–Bit Wiegand HID H10304, 37–Bit Wiegand HID H10302, HID 35–Bit Corporate 1000
- High Frequency card compatibility
- Verkada DESFire EV3, MiFare / DESFire NFC Card Serial Number
- Mobile credential compatibility
- Verkada Pass app, Apple Wallet, Android NFC
- Rating
- IK08, IP66
- Operating temperature
- -4°F – 122°F / -20°C – 50°C (802.3af PoE); -40°F – 122°F / -40°C – 50°C (802.3at PoE+)
- Dimensions
- Height: 9.0in / 229mm, Width: 4.7in / 118mm, Depth: 1.3in / 33mm
- Weight
- 2.2lb / 1.0kg
- Construction
- Aluminum, steel, polycarbonate
- Tamper detection
- Yes
- Compliance & safety
- FCC Part 15B Class B, ICES-003 Class B, UKCA, RCM, UL/IEC 62368-1, CSA NO22.2 62368-1, UL 294 Listed, CAN/ULC-60839-11-1 :2022, Outdoor
- Warranty
- 10 years
