AX11 IO Controller

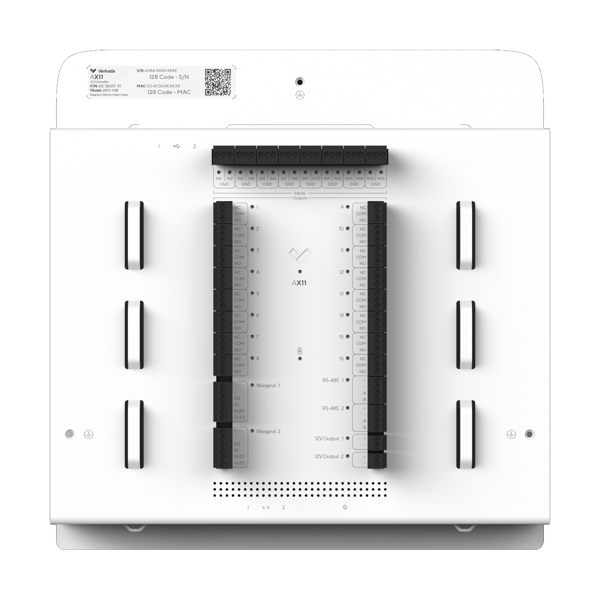

The **Verkada AX11** is a cloud-managed IO controller for securing elevators and auxiliary devices, with 16 dry inputs, 16 dry output relays, two external AUX power outputs, and two Wiegand and two RS-485 reader ports.
SKU AX11-HW
Total MSRP$4,198
Hardware $1,599 + 3-year cloud license $2,599
Cloud license term
Hardware$1,599
Software · 3-yr cloud license$2,599
Total MSRP$4,198
Authorized Verkada reseller · cloud licensing configured at checkout
Overview
The Verkada AX11 is a cloud-managed IO controller for securing elevators and auxiliary devices, with 16 dry inputs, 16 dry output relays, two external AUX power outputs, and two Wiegand and two RS-485 reader ports.
- Streamlined IO-only design connects a large network of devices into a single, small form factor controller
- Elevator access control: connect up to two readers to secure up to two elevators with up to 16 floors between them
- 16 dry inputs and 16 dry relay outputs (1A/24VDC contacts) for sensors, switches, peripherals, and 3rd party hardware
- Event Bridge adds video analytics to doors not secured by Verkada, streaming access events into Command
- Standalone DPI events: trigger events in Command by connecting up to 16 door position indicators (DPIs)
- Cloud-managed from any device in any location via Verkada Command; simplified installation with detachable mount plate and terminal block design
- 10-year warranty
Specifications
- Reader ports
- Two Wiegand and two RS-485 reader ports
- Inputs
- 16 Dry Inputs, Nominal 5VDC
- Relay outputs
- 16 Dry Relays, 1A/24VDC Contacts
- AUX power
- 2 External Outputs, 1A/12V Power Each, 2A Combined Max
- Power consumption
- 60W Maximum
- Power supply
- Nominal 5VDC, 110-240VAC, 50-60Hz connector
- Connectivity
- Ethernet: 100/1000Mbps RJ-45 cable connector for network connection, USB 2.0
- Dimensions (with mount)
- Length: 16.3in / 415.6mm, Width: 12.6in / 319.6mm, Height: 4.4in / 111.7mm
- Dimensions (without mount)
- Length: 16.3in / 415.6mm, Width: 12.6in / 319.6mm, Height: 4.2in / 105.7mm
- Weight
- 18.3lb / 8.3kg
- Operating temperature
- 32°F - 122°F / 0°C - 50°C, 5 - 90% humidity
- Compliance & safety
- FCC, CE, UL 294, UL 62368-1/CSA C22.2, CAN/ULC-60839-11-1:2016, NDAA
- Availability
- USA, CAN, IN, UK, EU
- Included accessories
- Setup guide, screw pack
- Mounting options
- Drywall anchors (M8) and screws (M5)
- Warranty
- 10 years
