Verkada AL54 Cylindrical Wireless Lock — Full-Size Interchangeable Core

Access Control · AL54

Verkada AL54 Cylindrical Wireless Lock — Full-Size Interchangeable Core

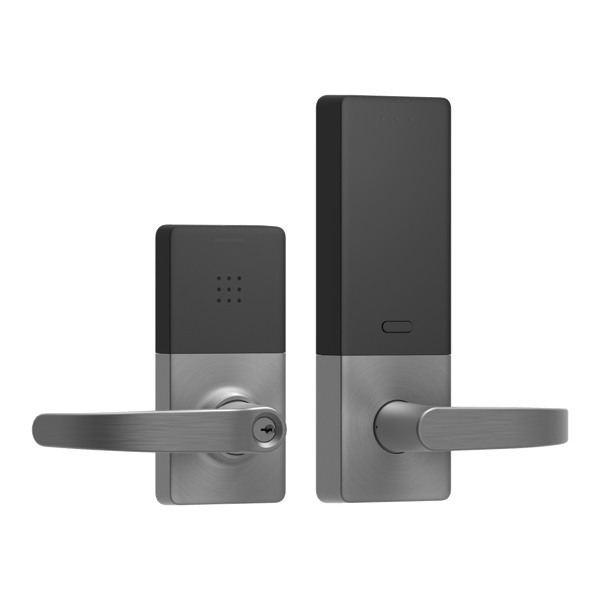

The Verkada AL54-CY is a cylindrical wireless lock — here in the full-size interchangeable core variation (model AL54-CY-FC-01-26-HW) — that upgrades traditional lock-and-key doors to smart, connected access control managed centrally in Verkada Command, with no additional software.

Reviews & comments · Join the conversation
From$1,399HARDWARE
Get a volume quote
Overview

The Verkada AL54-CY is a cylindrical wireless lock — here in the full-size interchangeable core variation (model AL54-CY-FC-01-26-HW) — that upgrades traditional lock-and-key doors to smart, connected access control managed centrally in Verkada Command, with no additional software.

  • Supports a wide array of credentials: Low Frequency (125 KHz), High Frequency (13.56 MHz), Mobile NFC (13.56 MHz, including Apple Wallet), and Bluetooth Low Energy (2.4 GHz), plus hands-free Bluetooth Intent Unlock
  • Connects via Verkada's VLink protocol to a WH32 wireless hub — up to 16 locks per AC12 controller, within 150 ft with obstructions or up to 2,000 ft with clear line of sight
  • Powered by 8x AA L91 lithium batteries for up to 18 months of battery life, with USB-C backup power and proactive low-battery and offline alerts
  • Interior and exterior LED feedback gives instant visual confirmation of door status — access granted, access denied, lockdown, and connectivity states
  • Built to last with a ten-year warranty, UL10C 3-hour fire rating, ANSI/BHMA A156.2 Grade 1, and IP65 / IK08 ratings
  • Local schedule override lets staff trigger immediate door-state changes with a simple button press directly on the lock

Technical detail

Product specifications

Download datasheet (PDF)
Model number
AL54-CY-FC-01-26-HW (Cylindrical Lock, Full Size Interchangeable Core)
Dimensions (with handle)
Exterior Assembly: 177.3 x 170.8 x 91.9 mm; Interior Assembly: 265.9 x 171.4 x 92.4 mm
Dimensions (without handle)
Exterior Assembly: 177.3 x 82.3 x 35.0 mm; Interior Assembly: 266.0 x 83.6 x 35.5 mm
Weight
7lb / 3.16kg
Operating temperature
–31° to 131°F / -35° to 55°C
Operating humidity
5-90%
Ratings
IP65, IK08
Door thickness
1-3/8 to 2 inch
Backset
2-3/8, 2-3/4 inch
Handing
Field Reversible
Lever
Zinc Die Cast, Plated Finish Satin Chrome Plated
Compatible cylinders and keys
Schlage Conventional Core: 6 Pin; Schlage FSIC: 6 Pin; SFIC: 6 Pin, 7 Pin. Any key designed for one of the cores listed above is compatible
Power supply
8X AA L91 lithium batteries (nominal voltage ≥ 1.5V)
Battery life
18 months (clean radio environment, 10s polling, 60 access events/day, ingress + egress door open events)
Backup power
Provided via a USB-C cable connected to a 5V power bank
Voltage range
5V to 7.2V
Maximum current requirement
1.8A (peak), 5.5 mA (average)
System interface
Wireless communication via VLink protocol to Verkada wireless hub & access controller
Wireless frequency range
915.0 - 915.7 MHz
Wireless communication range
Up to 150 ft with obstructions; Up to 2000 ft with clear line of sight
Credential technologies
Low Frequency (125 KHz); High Frequency (13.56 MHz); Mobile NFC (13.56MHz); Bluetooth Low Energy (2.4GHz)
Read range
LF (125 KHz): up to 8cm; HF (13.56 MHz): up to 4cm; Mobile NFC (13.56MHz): up to 4cm; BLE (2.4GHz): up to 8cm
Credential validation time
<1 second
Compliance
FCC, IC, UL10C (3-hour rating), ANSI/BHMA A156.2 Grade 1, UL294, ULC60389-11-1, ANSI/BHMA A156.25
Availability
USA, CAN
Warranty
Ten-year warranty
