Verkada AL54 Mortise Wireless Lock — Full-Size Interchangeable Core

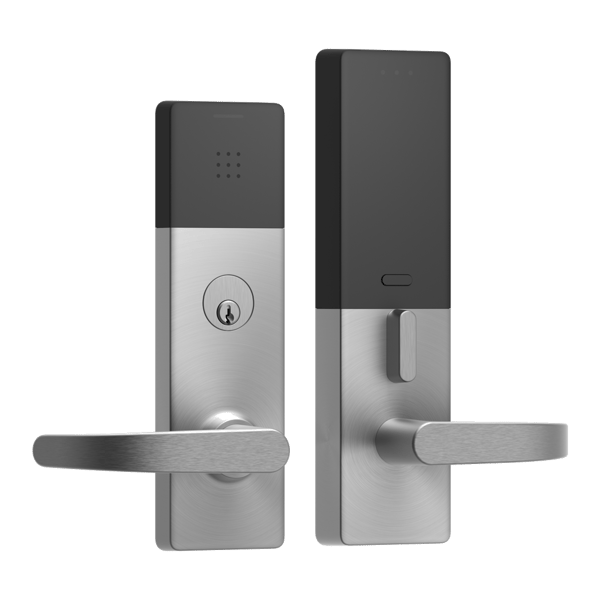

The Verkada AL54-MS is a wireless mortise lock (Full Size Interchangeable Core variant) that brings centrally managed, cloud-based access control to traditional lock-and-key doors, set up entirely within Verkada Command.

Reviews & comments · Join the conversation
From$1,799HARDWARE
Get a volume quote
Overview

The Verkada AL54-MS is a wireless mortise lock (Full Size Interchangeable Core variant) that brings centrally managed, cloud-based access control to traditional lock-and-key doors, set up entirely within Verkada Command.

  • Multi-credential reader supporting Low Frequency (125 KHz), High Frequency (13.56 MHz), Mobile NFC, and Bluetooth Low Energy — including hands-free Bluetooth Intent Unlock
  • Long-range VLink wireless connection to the WH32 wireless hub: up to 150 ft with obstructions, or up to 2,000 ft with clear line of sight
  • Powered by 8x AA L91 lithium batteries with up to 18 months of battery life and USB-C backup power via a 5V power bank
  • Intuitive interior and exterior LED feedback plus buzzer for instant visual and audible door-status confirmation
  • IP65 and IK08 rated, ANSI Grade 1, with a UL10C fire rating (pending) and extensive cycle testing for durability
  • Backed by a ten-year warranty

Technical detail

Product specifications

Download datasheet (PDF)
Model
AL54-MS-FC-01-26-HW — Mortise Lock, Full Size Interchangeable Core
Exterior Assembly Dimensions (without handle)
286.3 x 82.3 x 35.2 mm
Interior Assembly Dimensions
323.8 x 83.6 x 52.8 mm
Operating temperature
–31° to 131°F / -35° to 55°C
Operating humidity
5-90%
Ratings
IP65, IK08
Door thickness
1-5/8 to 2 inch
Backset
2-3/4 inch
Handing
Field Reversible
Lever
Zinc Die Cast, Plated Finish Satin Chrome Plated
Compatible cylinders and keys
Schlage FSIC: 6 Pin, 7 Pin. Any key designed for one of the cores listed is compatible
Power supply
8xAA L91 lithium batteries (nominal voltage ≥ 1.5V)
Battery life
18 months (clean radio environment, 10s polling, 60 access events/day)
Backup power
Provided via a USB-C cable connected to a 5V power bank
Voltage range
5V to 7.2V
Maximum current requirement
1.8A (peak), 5.5 mA (average)
System interface
Wireless communication via VLink protocol to Verkada wireless hub & access controller
Wireless frequency range
915.0 - 915.7 MHz
Wireless Communication Range
Up to 150 ft with obstructions; up to 2000 ft with clear line of sight
Credential technologies
Low Frequency (125 KHz), High Frequency (13.56 MHz), Mobile NFC (13.56MHz), Bluetooth Low Energy (2.4GHz)
Read range
LF (125 KHz): up to 8cm; HF (13.56 MHz): up to 4cm; Mobile NFC: up to 4cm; BLE: up to 8cm
Credential validation time
<1 second
Compliance
FCC, IC, UL10C (pending), UL294 (pending), ULC60389-11-1 (pending), ANSI/BHMA A156.13 Grade 1 (pending), ANSI/BHMA A156.25 (pending)
Availability
USA, CAN
Warranty
10 years
