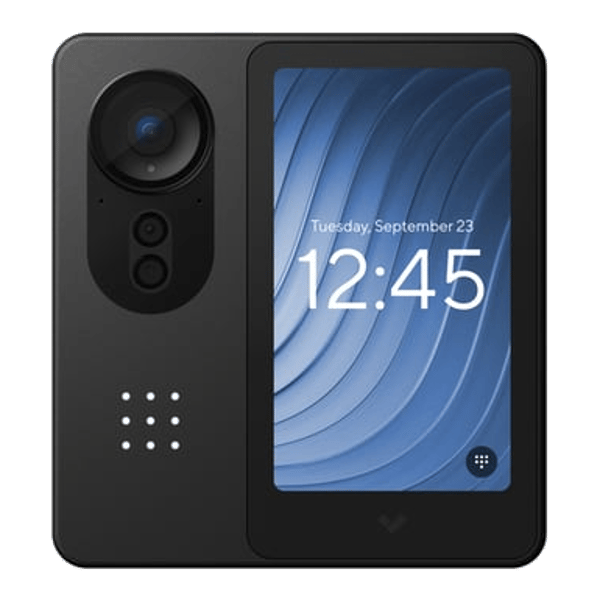

AF64 Access Station Pro
The **Verkada AF64** Access Station Pro is a secure, all-in-one access control device that brings Face Unlock to enterprise environments, combining edge-based facial recognition with AI-powered anti-spoofing, a single door controller, a multi-technology reader, an interactive touchscreen, and integrated video security in a single form factor.
Hardware $1,999 + 3-year cloud license $899
Authorized Verkada reseller · cloud licensing configured at checkout
The Verkada AF64 Access Station Pro is a secure, all-in-one access control device that brings Face Unlock to enterprise environments, combining edge-based facial recognition with AI-powered anti-spoofing, a single door controller, a multi-technology reader, an interactive touchscreen, and integrated video security in a single form factor.
- All-in-one unit combining a single-door controller, multi-technology reader, 5.5" IPS color LCD capacitive touchscreen, and a 5MP wide-angle security camera

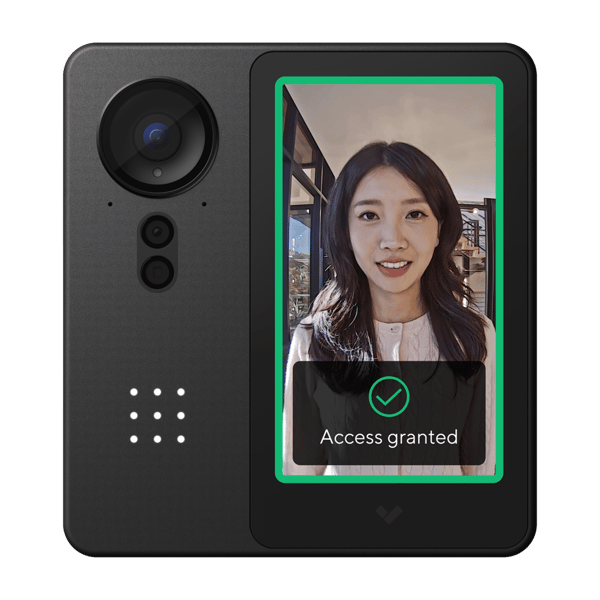

- Smart, contactless Face Unlock using a 3D indirect time-of-flight (iToF) sensor for infrared and depth detection (3D + IR liveness), supporting up to 50,000 faces
- Multi-credential support and MFA: Face Unlock, keycards (HF/LF), mobile NFC, Bluetooth Intent Unlock, and PIN — usable individually or as face + badge / face + PIN
- Built-in 5MP (2592 x 1944) camera with the AI analytics of a Verkada security camera, including people, vehicle, and crowd detection
- Powered by PoE+ (IEEE 802.3at) with no on-prem servers; flexible deployment as a standalone controller or as a reader via OSDP or LAN
- Rated IP65 and IK06 for durability, with multiple mounting options (wall, single-gang, or mullion)
- Privacy-by-design: all face data processed on the device and stored in a non-reversible format that cannot reconstruct a face
- Connectivity
- Ethernet: 10/100/1000Mbps RJ-45 cable connector for Network/PoE connection
- Power input
- IEEE 802.3at PoE+
- Power consumption
- 25.5W
- Ratings
- IP65, IK06
- Dimensions
- Height: 6in / 153mm, Width: 5.6in / 141mm, Depth: 1.3in / 34mm
- Weight
- 1.8lb / 804g
- Operating temperature
- -40˚C - 50˚C, 5-90% RH non-condensing
- Mounting options
- Wall, single-gang, or mullion (with separate accessory)
- Tamper detection
- Yes
- Inputs
- 1x REX input, 1x DPI input
- Outputs
- 1x dry relay, 24VDC @ 1A (resistive load); 1x RS-485 port
- Display
- 5.5in IPS color LCD capacitive touchscreen, 1280x720 pixels
- Camera sensor resolution
- 5MP (2592 x 1944)
- Image sensor
- 1/2.8" Progressive CMOS
- Lens / Aperture / Focal length
- Fixed lens, F2.1 aperture, 2.12mm focal length
- Field of view
- Horizontal: 130°, Vertical: 100°, Diagonal: 160°
- IR range
- 50ft / 15m in low light
- Face Unlock
- Liveness Detection: 3D+IR; Maximum number of faces: 50,000
- Credentials
- Low frequency card 125 kHz proximity; High frequency Verkada DESFire EV3 (card or fob), MiFare DESFire card serial number; Mobile (Verkada Pass app BLE, Apple Wallet, mobile NFC); PIN for single- or multi-factor authentication
- Onboard retention
- Maximum SQ 30 days
- Compliance
- FCC, IC, IEC 62368-1, IEC 62471, VCCI, MIC, TELEC, UL62368, UL294 (pending)
- Warranty
- 5 years
