Name: Verkada AD64 Multi-format
Brand: Verkada
Availability: InStock

Overview

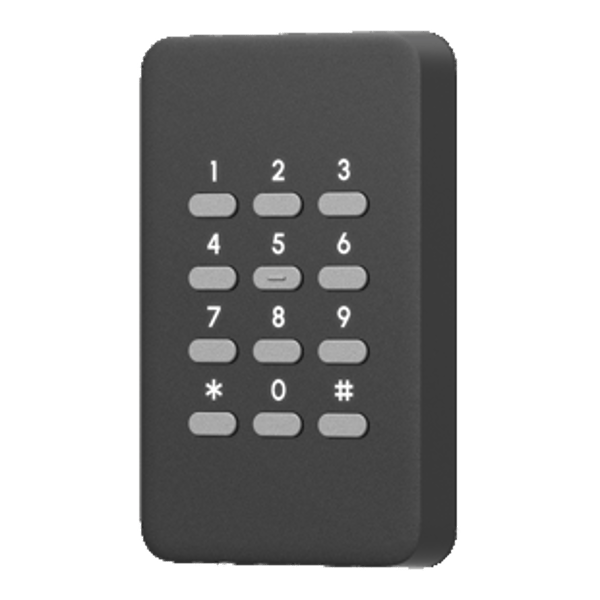

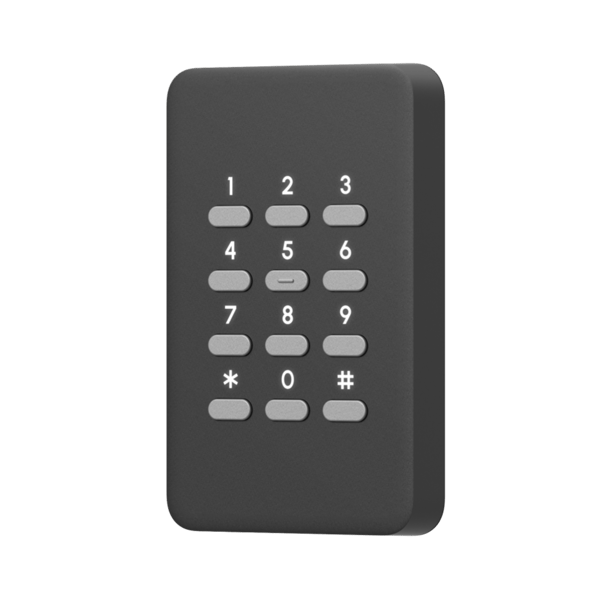

The Verkada AD64 is a multi-format door reader with a keypad that supports low-frequency proximity cards, encrypted high-frequency NFC credentials, mobile credentials, and PIN codes for standalone or two-factor authentication.

Compatible with 125 KHz low-frequency proximity cards and high-frequency NFC credentials including Verkada DESFire EV3 cards or fobs, Apple Wallet, and Android NFC
Keypad supports 6- to 14-digit PIN codes as a standalone credential or alongside another credential type for two-factor authentication (badge + PIN)
Secure Bluetooth Intent Unlock can require both proximity-based Bluetooth authentication and precise unlock intent in front of the reader, such as a hand wave, to prevent unintentional unlocks
Uses Secure Channel OSDP v2 to communicate with the access controller over RS-485 for added security
IP65- and IK08-rated for outdoor deployments and harsh environments
Easy-to-install single-gang form factor with intuitive LED feedback and connection-quality monitoring in Verkada Command
Includes a 10-year warranty

Specifications

Power consumption: 12V, 250mA max
Controllers: Requires an RS-485 connection to a Verkada access controller or TD52 Intercom
High frequency credentials: Verkada DESFire EV3 (card or fob), MIFARE DESFire card serial number
Low frequency credentials: 125 KHz proximity cards
Mobile credentials: Verkada Pass app (BLE), mobile NFC, Apple Wallet
Keypad: PIN only, two-factor authentication (badge + PIN)
Dimensions: Height: 5.2in / 13.2cm, Width: 3.2in / 8.1cm, Depth: 0.9in / 2.3cm
Weight: 0.47lb / 0.2kg
Rating: IP65, IK08
Operating temperature: -40 to 149° F / -40 to 65° C, 5-90% RH non-condensing
Certifications: FCC, CE, UL 294, UL 62368-1/CSA C22.2, CAN/ULC-60839-11-1:2016
Included accessories: Single gang mounting plate, T10 screwdriver, 2 wall mount screws, 2 M3 machine screws
Mounting options: Single gang
Warranty: 10 years
