Access Control · AC12
AC12 1 Door Controller

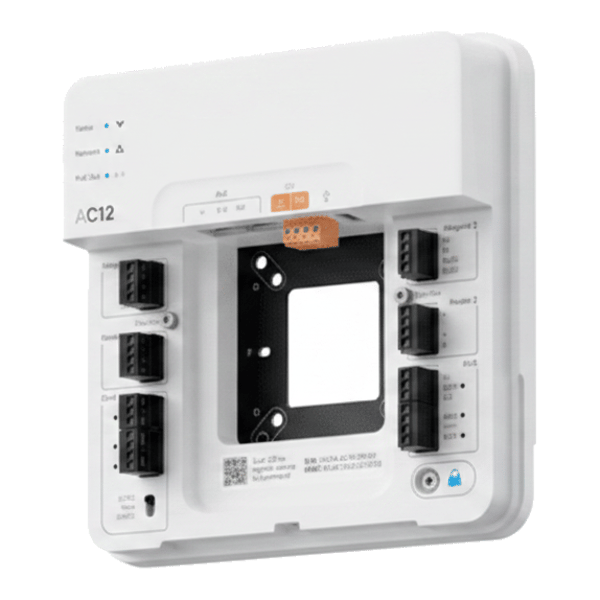

The **Verkada AC12** is a cloud-managed one-door access controller that brings access control to standalone doors, powered by a single PoE cable to minimize costly building modifications and long low-voltage cable runs between doors and IDF closets.
SKU AC12-HW
Total MSRP$1,498
Hardware $899 + 3-year cloud license $599
Cloud license term
Hardware$899
Software · 3-yr cloud license$599
Total MSRP$1,498
Authorized Verkada reseller · cloud licensing configured at checkout
Overview
The Verkada AC12 is a cloud-managed one-door access controller that brings access control to standalone doors, powered by a single PoE cable to minimize costly building modifications and long low-voltage cable runs between doors and IDF closets.
- Powers one lock, two readers, a PoE peripheral, and common door accessories from a single, low-profile access control unit (ACU)
- PoE passthrough provides consistent power and data to any PoE+ peripheral device, such as a Verkada camera or alarm console
- Two reader ports support any combination of Verkada and third-party readers for native in/out door support
- Onboard storage and processing ensures the device operates even if it loses power or its internet connection
- Flexible access credentials, including printed cards or the Verkada Pass mobile Bluetooth application
- Cloud-managed from Verkada Command on any device in nearly any location
- Comes with a 10-year warranty
Specifications
- Power consumption
- 15W Max (on PoE), 28W Max (on PoE+), 60W Max (on PoE++ with PoE passthrough camera)
- Power input
- IEEE 802.3af/at/bt PoE, PoE+, PoE++ (37VDC — 57VDC), 600mA maximum per pair; 12VDC with 2.5A minimum current
- Inputs
- 2x REX inputs, 1x DPI input, 1x AUX input
- DC Power output
- 1x 12VDC @ 100mA maximum
- PoE output
- IEEE 802.3af/at PoE, PoE+ (37VDC - 57VDC), 600mA maximum
- Door reader ports
- Verkada / RS-485 ports: 2x 12VDC @ 250mA; Wiegand ports: 2x 12VDC @ 250mA
- Relay outputs
- 2x Relay outputs (aux ports): 1x dry relay for auxiliary output with maximum pass-through power of 24VDC @ 2A (resistive load); 1x wet or dry relay. Wet relay switch-selectable power: 12VDC operation 700mA max, 24VDC operation 350mA max
- USB connection
- 5V USB power source
- Connectivity
- Ethernet: 10/100/1000 Mbps RJ-45 for network connection; USB 2.0
- Dimensions
- Length: 6.9in / 175.5mm, Width: 2.2in / 55.3mm, Height: 6.9in / 175.4mm
- Weight
- 2.9lbs / 1.3kg
- Mounting options
- Wall, ceiling, or Plenum mount
- Operating temperature
- 32°F - 122°F / 0°C - 50°C, 5 - 85% Humidity
- Compliance & safety
- FCC Part 15B Class B, ICES-003 Class B, CE, UKCA, VCCI, RCM, UL 294, CAN-ULC 60839-11-1, UL 62368-1, and CSA C22.2 No. 62368-1, IK06, compliant with requirements of UL 2043, indoor use only
- Availability
- USA, CAN, UK, EU
- Included accessories
- T10 security Torx screwdriver, mounting hardware kit
- Warranty
- 10 years
