Alarms · WH52

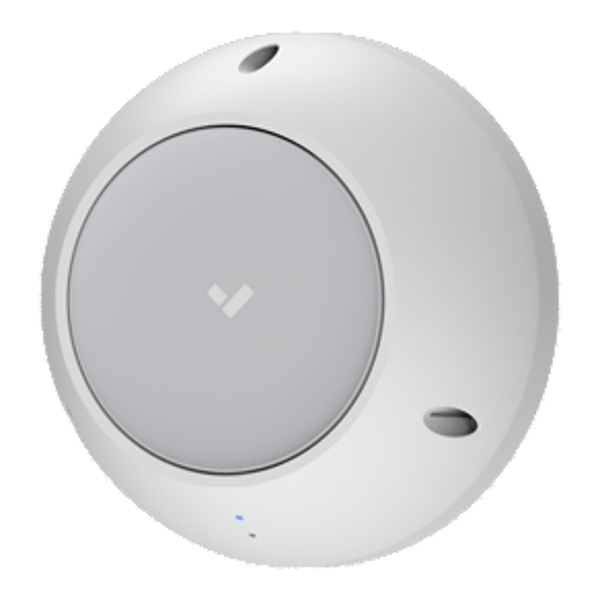

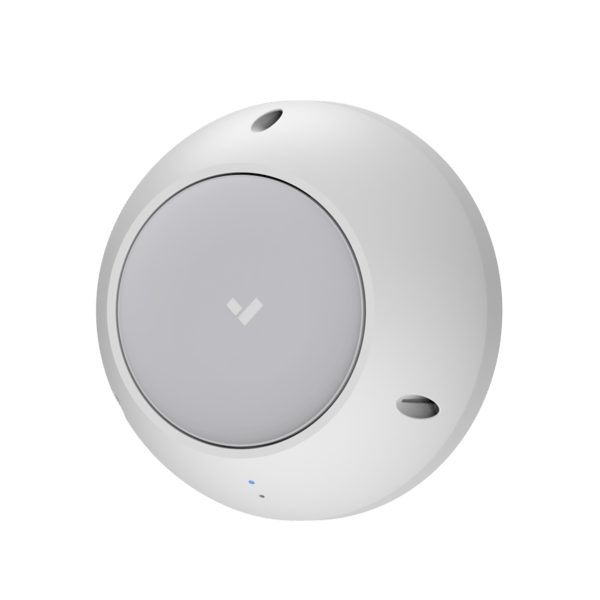

WH52 Wireless Hub (New Alarms
The **Verkada WH52** is a PoE-powered VLink Wireless Alarm Hub that extends wireless sensor coverage across sites of any size, communicating with the BP32 or BP52 alarm panel over LAN.
SKU WH52-HW
MSRP$599
Price is for this item.
Authorized Verkada reseller · cloud licensing configured at checkout
Overview
The Verkada WH52 is a PoE-powered VLink Wireless Alarm Hub that extends wireless sensor coverage across sites of any size, communicating with the BP32 or BP52 alarm panel over LAN.
- Supports up to 160 Verkada wireless sensors, with plug-and-play auto-connection (no manual pairing)
- LAN connection with the alarm panel allows placement anywhere with an ethernet drop, so the number of hubs is not limited by panel ports
- Cloud-managed in Command: view sensor activity, connection quality, and battery level, plus automatic firmware updates
- Highly available — communicates locally with the alarm panel during internet outages, with a built-in battery providing 12 hours of backup
- Powered over IEEE 802.3af PoE via a 10/100 Mbps RJ45 uplink; must be on the same VLAN/subnet as the alarm panel
- Tamper detection, FCC/IC/RCM/CE/UL/cUL/IEC 62368-1 certifications, and a 10-year warranty
Specifications
- Uplink
- 10/100 Mbps RJ45 port. Must be on the same VLAN/subnet as the alarm panel
- Power consumption
- 4.4W standby, 14W maximum (83mA - 260mA current draw)
- Power input
- IEEE 802.3af PoE
- Backup battery (internal)
- 2850 mAh, 12 hours of backup with typical use
- Wireless communication
- VLink sub-GHz transceiver. Wireless repeating not supported
- VLink wireless range
- Please refer to the downstream device datasheet
- Dimensions
- Diameter: 6.1in / 15.5 cm; Depth: 2.6in / 6.7 cm
- Weight
- 1.9 lb / 0.9 kg
- Operating temperature and humidity
- 32 to 113° F / 0 to 45° C and humidity 0-90% RH non-condensing
- Tamper detection
- Yes
- Certifications
- FCC, IC, RCM, CE, UL/cUL/IEC 62368-1
- Mounting options
- Wall or ceiling mount
- Included accessories
- Mount plate, T10 Security Torx screwdriver, 3x machine screws, 4x wall screws, 4x wall anchors
- Warranty
- 10 years
