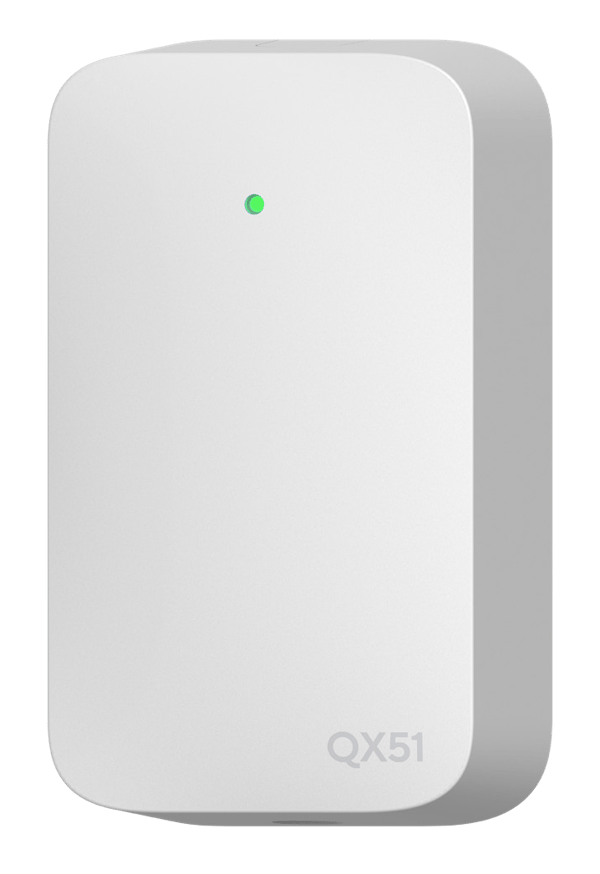

Verkada QX51 BSP Sensor Adapter

Alarms · QX51

Verkada QX51 BSP Sensor Adapter

The Verkada QX51 connects up to two wired sensors to a Better Sensor Protocol (BSP) addressable sensor run, making it easy to extend alarm coverage over long distances and take over legacy addressable sensors on existing wiring.

Reviews & comments · Join the conversation
From$129HARDWARE
Get a volume quote
Overview

The Verkada QX51 connects up to two wired sensors to a Better Sensor Protocol (BSP) addressable sensor run, making it easy to extend alarm coverage over long distances and take over legacy addressable sensors on existing wiring. Up to 100 QX51s daisy-chain on a single pair of wires that carries both power and data, and each adapter has two input zones (one powered, one unpowered) — so one BSP run can serve up to 200 sensors. The first QX51 connects to a BSP port on a Verkada alarm panel (BP42) or to a QX61 BSP RS-485 adapter on a BP52.

  • Two wired sensor zones with 12V aux power — no external DC supply for powered sensors
  • Automatic device discovery and ordering; no DIP-switch addressing
  • Live and historical sensor activity in Verkada Command, with health checks every minute
  • Tamper detection
  • 10-year warranty

Technical detail

Product specifications

Download datasheet (PDF)
Alarm inputs
2x wired zones (one powered, one unpowered); compatible with variable EOL resistors (1kΩ–4.7kΩ)
BSP
1x BSP input (uplink), 1x BSP output
Aux power
1x 12V DC (10 mA max)
Power input
18–36V DC via the BSP input; 0.3W max consumption
Devices per run
Up to 100 QX51s — up to 200 sensors on one BSP run
Connects to
A BSP port on a BP42, or a QX61 adapter on a BP52
Tamper detection
Yes
Dimensions (with enclosure)
3.1 × 1.9 × 1.2 in / 8.0 × 4.7 × 3.1 cm
Weight
2.8 oz / 80 g
Operating temperature
14–122°F / −10–50°C, 5–85% RH non-condensing
Mounting
Wall, ceiling or junction box
In the box
4x 1kΩ EOL resistors, mount plate, T10 security Torx L-key, 2x wall screws, 2x wall anchors
Certifications
FCC Part 15B Class B, ICES-003 Class B, CE, UKCA, VCCI, RCM, IK07
Availability
New for fall 2026 — Verkada begins shipping October–November 2026
Warranty
10 years
