Alarms · WH32
WH32 Wireless Repeater (New Alarms

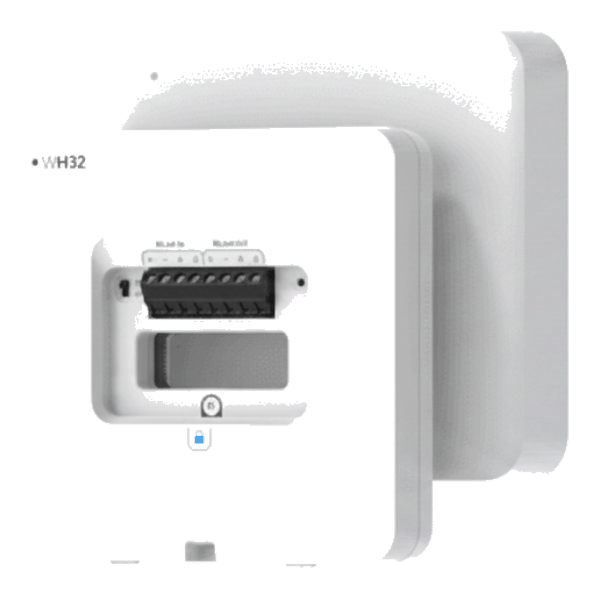

The **Verkada WH32** is a DC-powered VLink wireless repeater that extends the range of an existing VLink hub, closing gaps in alarm sensor coverage without running cable or installing additional hubs.
SKU WH32-HW
MSRP$299
Price is for this item.
Authorized Verkada reseller · cloud licensing configured at checkout
Overview
The Verkada WH32 is a DC-powered VLink wireless repeater that extends the range of an existing VLink hub, closing gaps in alarm sensor coverage without running cable or installing additional hubs.
- Wireless repeating: automatically pairs with the nearest VLink hub (BP32, BP52, BE32, BK22, WH52, or WH32 in hub mode) and amplifies its signal, with up to 2000 ft / 600 m range to the upstream hub (open field with line of sight)
- Wireless hub mode: operates as a VLink hub when wired to the BP52 panel via RS485, supporting up to 160 Verkada wireless sensors
- Suitable for areas that need sensor coverage but suffer from weak signal (RSSI -80 dBm or less); Verkada recommends no more than 6 repeaters per hub
- Cloud-managed through Command: view sensor activity, connection quality, and battery level, with automatic firmware updates
- Highly available: withstands internet outages by communicating locally with other alarm devices, with a built-in battery providing 24 hours of backup
- Tamper detection and a 10-year warranty
Specifications
- Power consumption
- 0.18W standby, 27W maximum (5mA - 750mA current draw)
- Power input
- Repeater mode: 10-36V DC Terminal Block (ACC-WA-30W-NA Wall Adapter sold separately); Hub mode: 10-36V DC via RS485
- Uplink
- Repeater mode: VLink sub-GHz transceiver (Repeater must be within range of a VLink hub. Verkada recommends no more than 6 repeaters per hub.); Hub mode: RS485 input
- VLink wireless range
- Repeater mode: 2000 ft / 600 m to upstream hub (open field with line of sight). Expect reduced range indoors, depending on environment. Hub mode: Please refer to the downstream device datasheet
- Backup battery (internal)
- 1200 mAh, 24 hours of backup with typical use
- Operating temperature and humidity
- 32 to 122° F / 0 to 50° C, 0-90% RH non-condensing
- Dimensions
- Height: 5.5in / 14.0cm, Width: 5.5in / 14.0cm, Depth: 1.3in / 3.4cm
- Weight
- 1.3 lb / 0.6 kg
- Tamper detection
- Yes
- Certifications
- FCC, IC, RCM, CE, UL/cUL/IEC 62368-1
- Included accessories
- Mount plate, T10 Security Torx screwdriver, 4x wall screws, 4x wall anchors
- Mounting options
- Wall or ceiling mount
- Hub mode capacity
- Supports up to 160 Verkada wireless sensors in hub mode
- Warranty
- 10 years
