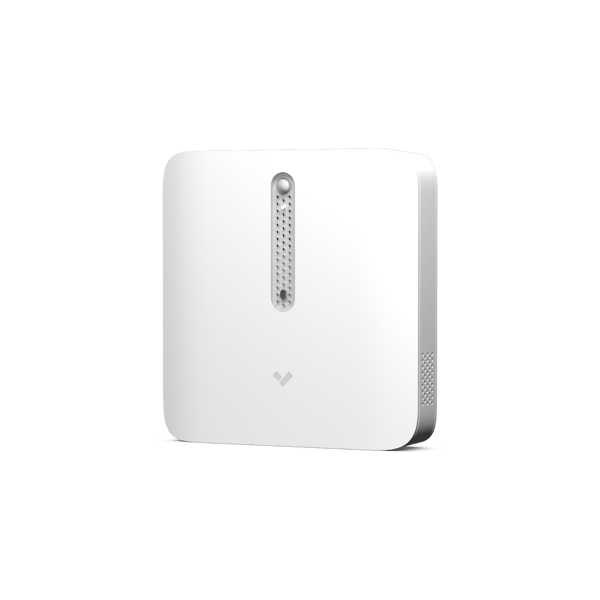

SV23 Environmental Sensor
The **Verkada SV23** is a cloud-managed air quality sensor for monitoring indoor air quality and ambient environment conditions, measuring temperature and relative humidity along with indoor pollutants like particulate matter and volatile organic compounds.
SKU SV23-HW
Total MSRP$1,598
Hardware $999 + 3-year cloud license $599
Cloud license term
Hardware$999
Software · 3-yr cloud license$599
Total MSRP$1,598
Authorized Verkada reseller · cloud licensing configured at checkout
Overview
The Verkada SV23 is a cloud-managed air quality sensor for monitoring indoor air quality and ambient environment conditions, measuring temperature and relative humidity along with indoor pollutants like particulate matter and volatile organic compounds.
- 8 ambient environment readings and 9 air quality readings, including temperature, relative humidity, CO2, AQI, TVOC index, PM2.5/4.0/10.0, noise level, motion, vape index and the RESET viral index
- Well suited for bathrooms and locker rooms (vape and noise detection) as well as offices and other indoor spaces
- PoE-only connection (IEEE 802.3af) with 4W power consumption brings devices online in minutes
- Bandwidth-friendly design operating at <5 kbps per device, with up to 365 days of onboard storage to support compliance and operational needs
- Durable, vandal-resistant design with horizontal and vertical wall and ceiling mounting; included installation kit and T10 security torx screwdriver
- Collects data that can be used to meet leading green building certifications like RESET, LEED or WELL
- Backed by Verkada's 10-year warranty
Specifications
- Power consumption
- 4W
- Power input
- IEEE 802.3af PoE
- Connectivity
- RJ-45 cable connector for Network/PoE connection
- LED indicator
- System power and status indicator
- Operating temperature
- 23.0°F to 113.0°F / -5.0°C to +45.0°C (Indoors)
- Operating humidity
- 0.0 to 95.0%
- Sampling frequency
- 5 seconds
- Storage
- Device: up to 365 Days; Cloud: up to 365 Days
- Offline mode
- Continues sampling and storing data on device
- Dimensions
- Length: 6.96in / 170mm, Width: 6.67in / 169.5mm, Height: 1.8in / 48.0mm
- Weight
- 19.54oz / 554.0g
- Mounting options
- Horizontal & vertical for wall and ceiling mounts
- Included accessories
- Mounting plate, installation kit, T10 security torx screwdriver, mounting screws, washers, drywall anchors and wing nut
- Onboard sensors
- Temperature, Relative humidity, PM2.5, PM4.0, PM10.0, TVOC index, Motion, Mold risk index, CO2, Noise level, Air quality index, Vape index, Heat Index, Dew point index, Humidex, RESET viral index
- Temperature sensor
- Sensor: CMOS; Operating Range: -5.0 to 45.0ºC (23.0 to 113.0°F); Typical Accuracy: ± 0.5°C (± 0.9ºF), Max ± 1.0°C (± 1.8ºF)
- CO2 sensor
- Sensor: Photoacoustic; Range: 0.0 - 40,000.0 ppm; Typical Accuracy: 400.0 ppm - 1000.0 ppm ± 75.0ppm, 1001.0 ppm - 2000.0 ppm ± (40.0 ppm + 5.0% of reading)
- Noise level sensor
- Sensor: MEMS microphone; Range: 20 - 120 dB SPL (A-Weighted); Typical Accuracy: ± 5 dB
- Motion sensor
- Sensor: Passive infrared sensor, FoV: 120.0°
- Compliance & safety
- FCC Part 15B Class B, ICES-003 Class B, NDAA, UKCA, CE, RCM, VCCI, KCC, BIS, NOM, UL/cUL/IEC 62368-1, ECA, CAK, NCC, RURA, UCC
- Availability
- USA, CA, IN, UK, EU, AUS, NZ, MX
- Warranty
- 10 years
