Air Quality Sensors · SV21
SV21 Environmental Sensor

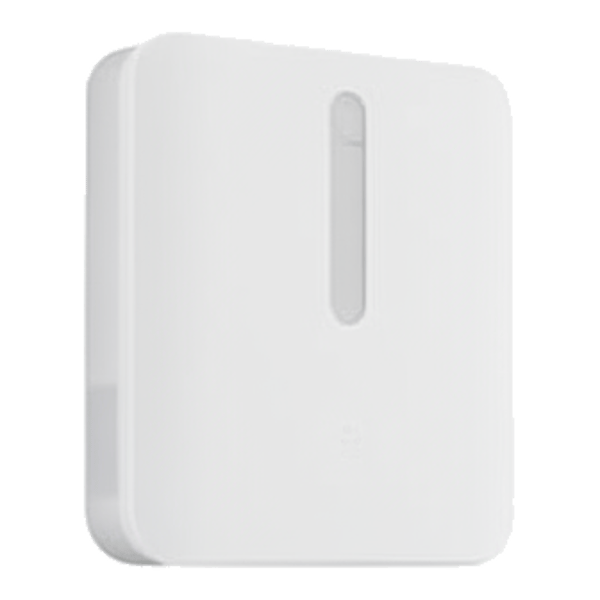

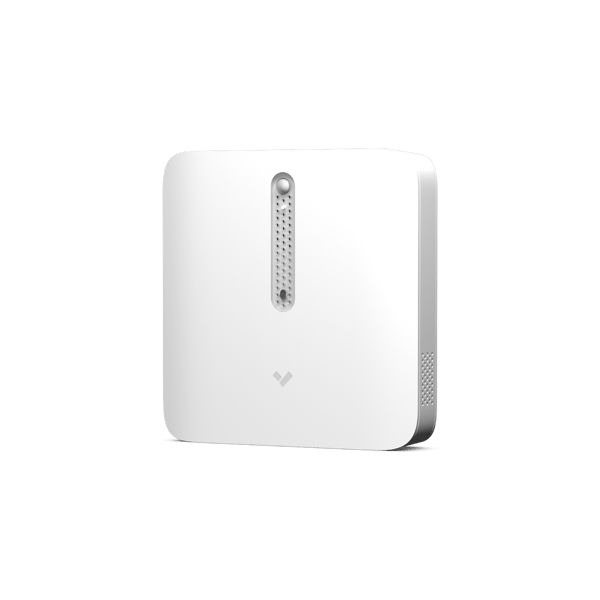

The **Verkada SV21** is a cloud-managed Air Quality Sensor for monitoring indoor air quality and ambient environment conditions, specifically measuring temperature, relative humidity, and carbon dioxide.
SKU SV21-HW
Total MSRP$1,298
Hardware $699 + 3-year cloud license $599
Cloud license term
Hardware$699
Software · 3-yr cloud license$599
Total MSRP$1,298
Authorized Verkada reseller · cloud licensing configured at checkout
Overview
The Verkada SV21 is a cloud-managed Air Quality Sensor for monitoring indoor air quality and ambient environment conditions, specifically measuring temperature, relative humidity, and carbon dioxide.
- Provides 8 ambient environment and air quality readings, including Temperature, Relative Humidity, CO2, Heat Index, Humidex, Mold Risk Index, Dew Point Index, and Tamper Detection
- Well suited for IDF/MDF closets, server rooms, and cold storage areas where regulating temperature and protecting food, inventory, and networking infrastructure is paramount
- PoE-only connection (IEEE 802.3af PoE, 4W) with an RJ-45 connector brings devices online in minutes
- Bandwidth-friendly design operating at under 5 kbps per device, with 365 days of onboard storage of air quality sensor data
- Durable, vandal-resistant design with optional accessory support for secure wall or ceiling mounting
- Backed by Verkada's 10-year warranty, with 24/7 support and automatic firmware updates
Specifications
- Readings
- 8 ambient environment and air quality readings (Temperature, Relative Humidity, CO2, Heat Index, Humidex, Mold Risk Index, Dew Point Index, Tamper Detection)
- Temperature Sensor
- Sensor: CMOS; Operating Range: -25°F to 113.0°F / -32°C to 45.0°C; Typical Accuracy: ± 0.9ºF / ± 0.5°C, Max ± 1.8ºF / ± 1.0°C
- Relative Humidity Sensor
- Sensor: CMOS; Operating Range: 0.0 - 95.0% non-condensing; Typical Accuracy: ± 3.0% @ 25.0ºC
- CO2 Sensor
- Sensor: Photoacoustic; Range: 0 - 40,000 ppm; Typical Accuracy: 400 ppm - 1000 ppm ± 75 ppm, 1001 ppm - 2000 ppm ± (40 ppm + 5% of reading)
- Heat Index
- Sensor: Formula derived from other sensors; Range: 23 °F to 160 °F
- Humidex
- Sensor: Formula derived from other sensors; Range: 0-50
- Dew Point Index
- Sensor: Formula derived from other sensors; Range: 32°F to 95°F
- Mold Risk Index
- Sensor: Formula derived from other sensors; Range: 0-3 Index
- Power Consumption
- 4W
- Power Input
- IEEE 802.3af PoE
- Connectivity
- RJ-45 cable connector for Network/PoE connection
- LED Indicator
- System power and status indicator
- Operating Temperature
- -25°F to 113.0°F / -32°C* to +45.0°C Indoors
- Operating Humidity
- 0 to 95.0%
- Storage
- Device: up to 365 Days; Cloud: up to 365 Days
- Sampling Frequency
- 5 seconds
- Offline Mode
- Continues sampling and storing data on device
- Dimensions
- Length: 6.96in / 170.0mm; Width: 6.67in / 169.5mm; Height: 1.8in / 48.0mm
- Weight
- 17.64oz / 500.0g
- Mounting Options
- Horizontal & vertical for wall and ceiling mounts
- Included Accessories
- 1x mounting plate, 1x installation kit, 1x T10 security torx screwdriver, 3x 7x mounting screws, 3x washers, 4x drywall anchors & 3x wing nut
- Compliance & Safety
- FCC Part 15B Class B, ICES-003 Class B, NDAA, UKCA, CE, RCM, VCCI, KCC, BIS, NOM, UL/cUL/IEC 62368-1
- Availability
- USA, CA, IN, UK, EU, AUS, NZ, MX
- Warranty
- 10 years
