Verkada QX61 BSP RS-485 Adapter

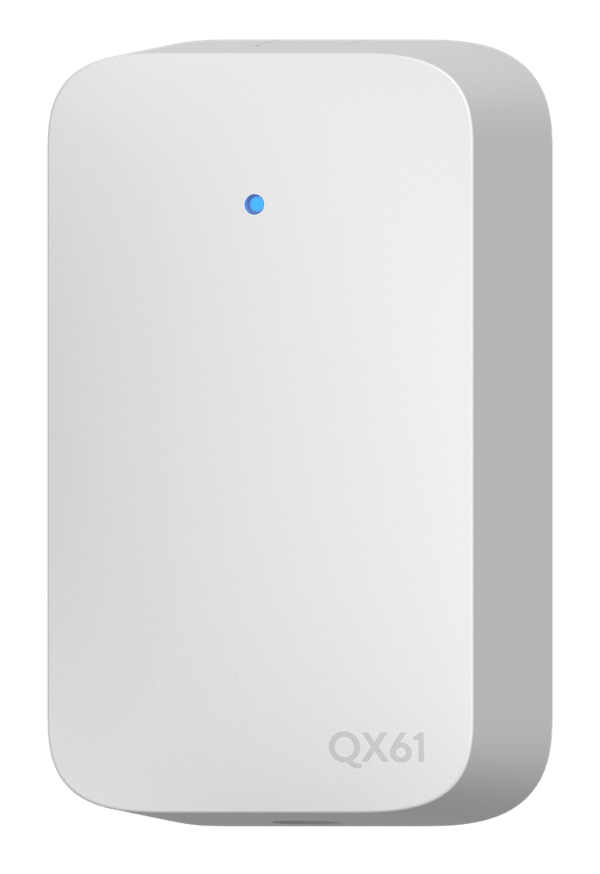

The Verkada QX61 bridges an RS-485 port on a Verkada alarm panel to a Better Sensor Protocol (BSP) addressable sensor run, so a panel without native BSP ports can use BSP sensors.

Reviews & comments · Join the conversation
From$199HARDWARE
Get a volume quote
Overview

The Verkada QX61 bridges an RS-485 port on a Verkada alarm panel to a Better Sensor Protocol (BSP) addressable sensor run, so a panel without native BSP ports can use BSP sensors. It is supported on the BP52 and the BP42. Any BSP device — QX51 sensor adapters and BSP motion sensors such as the QM11-R — can be connected downstream of a QX61, and the panel auto-discovers every device on the run and lists it in the correct order in Verkada Command.

  • Adds BSP sensor runs to a BP52 through its RS-485 port
  • Up to 200 door sensors or up to 50 powered motion sensors on a single run
  • Automatic discovery and ordering; health checks every minute with online/offline alerts
  • Tamper detection
  • 10-year warranty

Technical detail

Product specifications

Download datasheet (PDF)
Uplink
RS-485 input from a Verkada alarm panel
BSP
1x BSP output
Supported panels
BP52, BP42
Downstream devices
QX51 sensor adapters and BSP motion sensors (e.g. QM11-R)
Capacity per run
Up to 200 door sensors, or up to 50 powered motion sensors
Power input
10–36V DC via the RS-485 input; 14W max consumption
Tamper detection
Yes
Dimensions (with enclosure)
3.1 × 1.9 × 1.2 in / 8.0 × 4.7 × 3.1 cm
Weight
3.1 oz / 87 g
Operating temperature
14–122°F / −10–50°C, 5–85% RH non-condensing
Mounting
Wall, ceiling or junction box
In the box
Mount plate, T10 security Torx L-key, 2x wall screws, 2x wall anchors
Certifications
FCC Part 15B Class B, ICES-003 Class B, CE, UKCA, VCCI, RCM, IK07
Availability
New for fall 2026 — Verkada begins shipping October–November 2026
Warranty
10 years

Support

Frequently asked questions

Need help with your site? Talk to Monarch.

How do I choose my configuration?

Open the configuration panel to see the available product variants and their prices. Review the selected configuration before adding it to your cart.

What is the hardware warranty?

The catalog lists the hardware warranty as 10 years. Consult the manufacturer’s warranty terms for coverage and exclusions.

How are customer reviews published?

Leave a comment without signing in: choose a public display name and provide a private email address. You can remember your details on this device. Monarch reviews submissions for spam, relevance, and inappropriate content before publication. Reviews are not labeled as verified purchases.
