Verkada QM21-W Wireless Ceiling Motion Sensor

Alarms · QM21-W

Verkada QM21-W Wireless Ceiling Motion Sensor

The Verkada QM21-W is a wireless ceiling-mount motion sensor for Verkada Alarms with 360° coverage.

Reviews & comments · Join the conversation
From$199HARDWARE
Get a volume quote
Overview

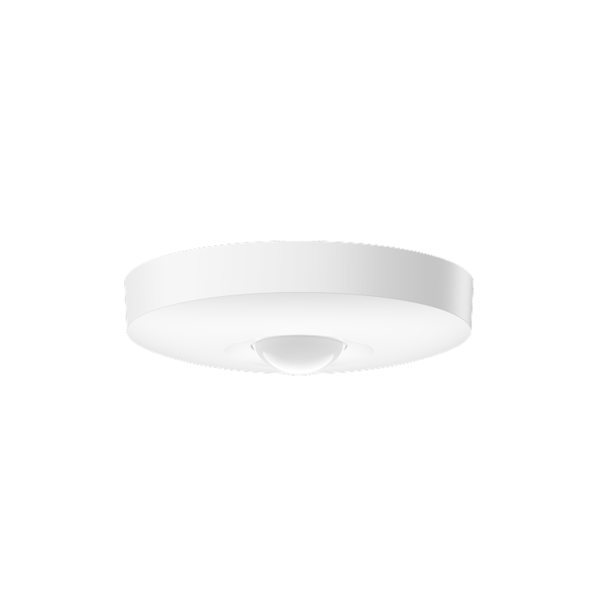

The Verkada QM21-W is a wireless ceiling-mount motion sensor for Verkada Alarms with 360° coverage. It uses dual-technology detection — a PIR sensor plus X-band microwave radar — so an alarm requires both to agree, which cuts the false trips that catch single-technology sensors.

  • 360° field of view with a 29.5ft / 9m detection range from a ceiling mount
  • Dual-technology sensing: passive infrared and X-band microwave radar
  • Connects automatically to the nearest VLink hub — BP32, BP42, BP52, BK22, BE32, WH32 or WH52 — with no manual pairing
  • 2,000ft (600m) open-field line-of-sight wireless range over VLink, Verkada's sub-GHz protocol
  • Runs on two included lithium AA batteries with 5-year typical battery life; no wiring to the device
  • Breakaway-tab tamper switch, plus an install-mode LED that shows dual motion, thermal motion and hub-search state
  • Remote visibility of live and historical activity, signal strength and battery level in Command; mute a sensor for a set period
  • FCC and IC certified, 10-year warranty

Panel and alarm service licensing are sold separately.

Technical detail

Product specifications

Download datasheet (PDF)
Sensor type
Wireless ceiling motion sensor, dual-technology
Sensor technology
PIR + X-band microwave radar
Field of view
360°
Detection range
29.5ft / 9m
Wireless communication
VLink sub-GHz transceiver, internal antenna (863–928MHz)
Wireless range
≥ 2,000ft (600m) open-field line of sight to a VLink hub
Compatibility
BP32, BP42, BP52, BK22, BE32, WH32, WH52
Power supply
2x non-rechargeable lithium L91 AA batteries (included)
Battery life
5-year typical
Tamper detection
Yes — breakaway tab
Dimensions
4.61 in (11.71 cm) diameter, 1.28 in (3.25 cm) height
Weight
5.36oz / 152g
Operating temperature
32°F–122°F / 0°C–50°C, 0–90% RH non-condensing
Certifications
FCC, IC
Warranty
10 years
