Alarms · QM21-R

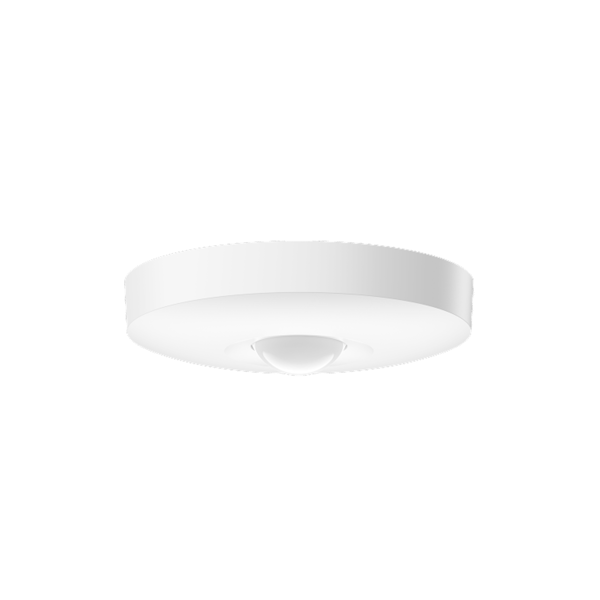

Verkada QM21-R BSP Ceiling Motion Sensor
The Verkada QM21-R is a wired ceiling-mount motion sensor for Verkada Alarms, built for the Better Sensor Protocol (BSP).
Reviews & comments · Join the conversationThe Verkada QM21-R is a wired ceiling-mount motion sensor for Verkada Alarms, built for the Better Sensor Protocol (BSP). BSP sensors wire straight into an addressable daisy-chained loop with no sensor adapter, so one wire run can carry many sensors instead of a home run per device.
- 15ft (4.5m) maximum detection range from a ceiling mount
- Connects directly to a BSP loop on the BP42 or BP52 Alarm Panel, or a BE32 Expander — no QX51 adapter needed
- Powered from the loop at 12–36V DC, drawing 0.3W maximum
- Breakaway-tab tamper switch reports removal attempts to Command
- Pair a context camera in one click, then configure parameters and partitions remotely — no on-site programming
- Live and historical sensor activity visible across every site in Command, and a sensor can be muted for a set period
- FCC and ISED certified, 10-year warranty
Panel and alarm service licensing are sold separately.
Technical detail
Product specifications
- Sensor type
- Wired ceiling motion sensor, Better Sensor Protocol (BSP)
- Detection range
- 15ft (4.5m) maximum
- Installation
- Ceiling mount; wires directly into a BSP addressable loop
- Compatibility
- BP42 Alarm Panel, BP52 Alarm Panel, BE32 Expander
- Power input
- 12–36V DC from the loop
- Power consumption
- 0.3W maximum
- Tamper detection
- Yes — breakaway tab
- Dimensions
- 4.61 x 4.61 x 1.26 in (11.71 x 11.71 x 3.2 cm)
- Weight
- 5.12oz / 145.1g
- Operating temperature
- 32°F–122°F / 0°C–50°C, 0–90% RH non-condensing
- Included accessories
- Wall screws, wall anchors, L-key
- Certifications
- FCC, ISED
- Warranty
- 10 years
