Alarms · QC11
QC11-W Wireless Door/Window Sensor (New Alarms

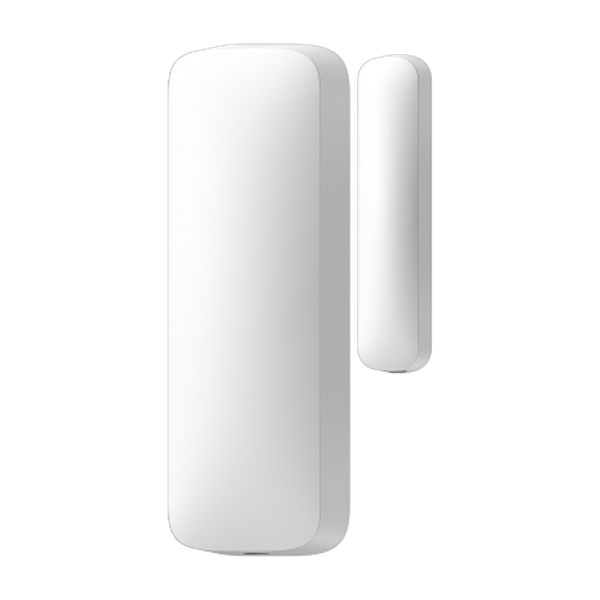

The **Verkada QC11-W** is a cloud-managed wireless door/window contact sensor in the new Alarms VLink product line, using dual-tech TMR and Hall effect sensing to detect when a door or window is opened or closed.
SKU QC11-W-HW
MSRP$99
Price is for this item.
Authorized Verkada reseller · cloud licensing configured at checkout
Overview
The Verkada QC11-W is a cloud-managed wireless door/window contact sensor in the new Alarms VLink product line, using dual-tech TMR and Hall effect sensing to detect when a door or window is opened or closed.
- Dual-tech TMR and Hall effect sensors with tamper detection
- Connects over VLink, Verkada's sub-GHz wireless protocol, to any new Alarms VLink hub (BP32 panel, BK22 keypad, WH52 wireless hub)
- Open-field wireless range up to 2000ft / 600m with line of sight (reduced indoors)
- Powered by 2x Energizer Ultimate Lithium L91 AA batteries (included) with up to 5 years of battery life
- Supports non-metal door gaps up to 2.4in / 6.0cm and metal door gaps up to 1.5in / 3.7cm using the included magnet spacer
- FCC and IC certified, backed by a 10-year warranty
Specifications
- Power supply
- 2x Energizer Ultimate Lithium L91 AA batteries included
- Battery life
- 5 years with typical use
- Wireless communication
- VLink sub-GHz transceiver
- Compatibility
- Compatible with any new Alarms VLink hub. Not compatible with classic Alarms VLink hubs
- Wireless range
- Open field with line of sight: 2000ft / 600m. Expect reduced range indoors, depending on environment
- Sensor technology
- Dual-tech TMR and Hall effect sensors
- Door gap width
- Non-metal doors: Up to 2.4in / 6.0cm. Metal doors: Up to 1.5in / 3.7cm. Use included magnet spacer to close gaps
- Tamper detection
- Yes
- Dimensions (Sensor)
- Length: 4.4in / 11.3cm, Width: 1.5in / 3.7cm, Height: 1.0in / 2.5cm
- Dimensions (Magnet)
- Length: 2.8in / 7.0cm, Width: 0.6in / 1.5cm, Height: 0.5in / 1.3cm
- Weight
- Sensor: 3.2oz / 90g; Magnet: 0.6oz / 18g
- Operating temperature and humidity
- 32 to 122° F / 0 to 50° C and humidity 0-90% RH non-condensing
- LED indicator
- Install Mode only (Door Opened, Searching for Hub, and Cannot Find Hub)
- Certifications
- FCC, IC
- Included accessories
- 2x L91 AA batteries, mounting tape, 4x wood screws, 4x sheet metal screws, T-10 Security Torx L-Key
- Mounting options
- Wood and metal screws, mounting tape
- Warranty
- 10 years
