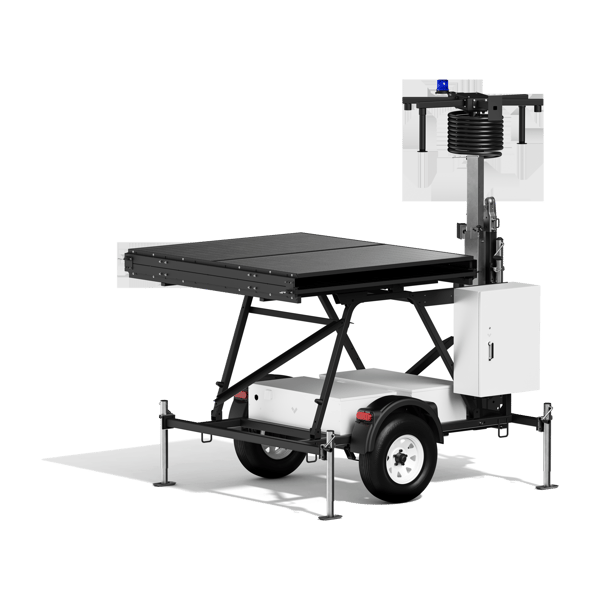

The Verkada MT81 Cloud-Managed Security Trailer makes it simple to deploy Verkada security systems anywhere, including hard-to-wire or temporary locations such as parking lots, construction sites, large venues, industrial yards, and crime hot spots.
Authorized Verkada reseller · cloud licensing configured at checkout
Overview
The Verkada MT81 Cloud-Managed Security Trailer makes it simple to deploy Verkada security systems anywhere, including hard-to-wire or temporary locations such as parking lots, construction sites, large venues, industrial yards, and crime hot spots.
Runs on solar, is cloud-connected, and supports up to six Verkada devices, with two variants (MT81-6KWH and MT81-13KWH) offering different battery capacities
1,600W high-efficiency photovoltaic solar panel with electric actuator-tilt and a Smart MPPT charge controller
6.6 kWh or 13.2 kWh usable lithium-ion battery capacity, plus a NEMA 5-15 (15A / 120 VAC) battery charger for AC shore power
24' telescoping mast with electric-powered winch, 355° rotation, and a wind rating up to 65 mph at full mast with stabilizers deployed
Pre-wired with 6x Verkada-compatible arm mounts, a built-in PoE switch (6x GigE 802.3bt Type 4 device ports, 480W total PoE budget), and a 1x GigE uplink port
Remotely monitor GPS location, solar input, battery level, power load, and connected devices in Verkada Command
Weather-rated IP55 with an operating range of -4 to 122° F (-20 to 50° C); 5 years parts-only warranty
Specifications
Solar panel capacity
1,600W (high-efficiency photovoltaic solar modules)
Solar array
Electric actuator-tilt
Solar controller
Smart MPPT (Maximum Power Point Tracking) charge controller and communicator
Batteries
29V lithium-ion
Battery capacity
6.6 kWh / 13.2 kWh usable total capacity
Battery charger
NEMA 5-15 plug (15A / 120 VAC)
Power inverter
375W
System monitoring
Verkada Command
Uplink Port
1x GigE RJ45 port, 802.3bt Type 3
Ethernet Ports for Devices
6x GigE RJ45 ports, 802.3bt Type 4
Total PoE Budget
480W
Tower
24' telescoping mast
Camera arms
6x Verkada-compatible arm mounts (1-1/2" NPT) with hole for safety screw
Rotation
355°
Actuation
Electric-powered winch for raising and lowering
Max weight for winch
150 lb
Strobe light
Blue LED flashing beacon on head unit
Wind rating
Up to 65 mph at full mast with stabilizers deployed
