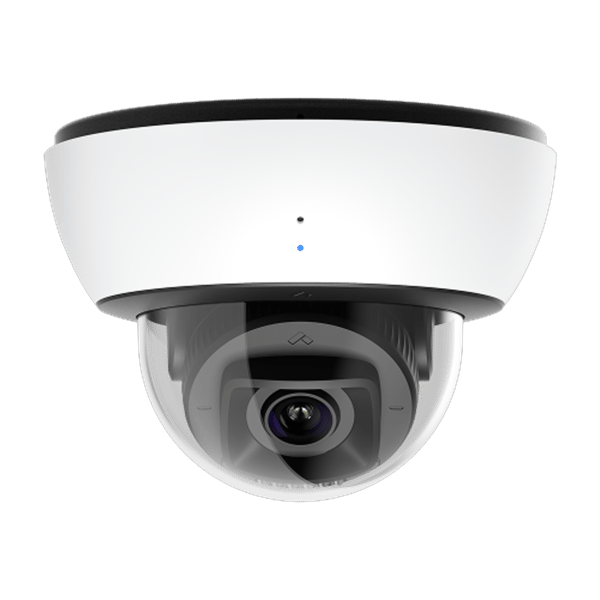

Verkada CD53-E Outdoor Dome Camera

Video Security · CD53

Verkada CD53-E Outdoor Dome Camera

The Verkada CD53-E is an outdoor dome camera that provides precise 5MP coverage in a range of outdoor environments, with a 1/2.8" progressive CMOS image sensor, a varifocal lens with 2.86x optical zoom, and 30 meters / 98 feet of IR range for consistent image quality in inclement weather and varying lighting conditions.

Reviews & comments · Join the conversation
From$1,799HARDWARE

Required license priced separately. Choose your configuration below.

Get a volume quote
Overview

The Verkada CD53-E is an outdoor dome camera that provides precise 5MP coverage in a range of outdoor environments, with a 1/2.8" progressive CMOS image sensor, a varifocal lens with 2.86x optical zoom, and 30 meters / 98 feet of IR range for consistent image quality in inclement weather and varying lighting conditions.

  • 5MP resolution (2688 x 1944) with a 1/2.8" progressive CMOS image sensor
  • Varifocal lens with 2.86x optical zoom (2.8-8mm focal length) and 30m / 98ft IR range
  • Onboard CV75S Ambarella processor for advanced people and vehicle analytics, AI-powered search, and AI-powered alerts
  • IP66/67 weather rating and IK10 impact rating; operability between -40°C to 50°C / -40°F to 122°F
  • 256GB to 2TB onboard storage with redundant cloud backup and unlimited cloud-based archiving
  • Streamlined installation: captive screws in mounting plate, latch-based cable gland for easy PoE threading, three-LED status indicator, and built-in bubble level
  • Powered over PoE (IEEE 802.3at Type 2 PoE+ with IR; 802.3af Type 1 PoE without IR)

Technical detail

Product specifications

Download datasheet (PDF)
Image sensor
1 / 2.8" Progressive CMOS
Sensor resolution
5MP (2688 x 1944)
Lens type
Varifocal; motorized zoom
Focal length
2.8-8mm
Aperture
F1.3 - F2.4
Iris
P-Iris
Field of view (after LDC)
Horizontal: 109° - 39° (91° - 36°); Vertical: 80° - 29° (71° - 28°); Diagonal: 140° - 48° (107° - 44°)
Sensor movement
Tilt: 60°; Pan: 360°; Rotation: 350°
Day/night
IR-cut filter for day and night function
IR range
30m / 98ft
Minimum illumination
0.009 lux @ F1.9 (Color); 0 lux with IR Illuminators on
Onboard storage
Capacity: From 256GB to 2TB; Card: MicroSD, SDXC
CPU
Ambarella CV75S88
Compression
H.265, H.264
Frame rate
24fps
Audio
Built-in microphone; One-way audio; Effective range 5m / 16ft
Power input
With IR: IEEE 802.3at Type 2 PoE+; Without IR: IEEE 802.3af Type 1 PoE; Extended temperature range: IEEE 802.3at Type 2 PoE+
Power consumption
With IR: 37V-57V, 0.39A-0.29A, 16.8W; Without IR: 37V-57V, 0.23A-0.15A, 8.5W; Extended temperature range: 37V-57V, 0.48A-0.35A, 20.2W
Connectivity
RJ-45 cable connector for network/PoE connection; 10 / 100 / 1000 Mbps
Operating temperature
-40°C to 50°C / -40°F to 122°F
Humidity
0 to 90%
Certifications
FCC, ICES, UKCA, CE, RCM, NOM, VCCI, ICASA, IK10 impact rating, IP66/67 weather rating, Compliant to UL 2043
Weight
Camera: 1137g / 40.11oz; Mount plate: 193g / 6.81oz
Body
Aluminum, plastic dome trim
Dimensions
With mount plate: Ø 155.0mm / 6.10in, H 111.4mm / 4.39in; Without mount plate: Ø 155.0mm / 6.10in, H 104.4mm / 4.11in
Included accessories
Screw packs, mount plate with leveler, cable sealing rubber for 6.5-7.5mm, conduit adapter, T10 security driver, desiccant 4.5g
