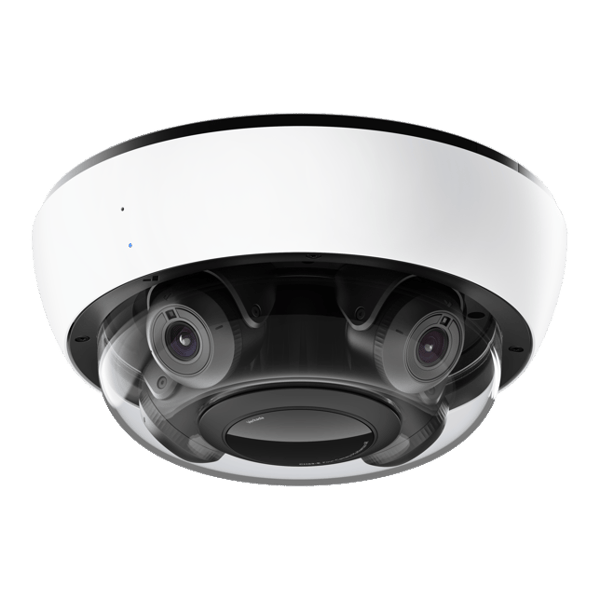

CH63-E Outdoor Four-Camera Multisensor Camera
The **Verkada CH63-E** is an outdoor four-camera multisensor with four independent, adjustable image sensors that together support 4K coverage in all directions from a single install point.
SKU CH63-2TBE-HW
Total MSRP$6,848
Hardware $4,899 + 3-year cloud license $1,949
Retention
Onboard storage — no NVR or extra recorder required.
Cloud license term
Hardware$4,899
Software · 3-yr cloud license$1,949
Total MSRP$6,848
10-Year Hardware Warranty on this Verkada camera
Authorized Verkada reseller · cloud licensing configured at checkout
Overview
The Verkada CH63-E is an outdoor four-camera multisensor with four independent, adjustable image sensors that together support 4K coverage in all directions from a single install point.
- Four 1/2.8" progressive CMOS image sensors at 4K (3856 x 2228), each with 2.55x optical zoom (varifocal, motorized) and a 30m / 98ft IR range for nighttime viewing
- Individually adjustable and repositionable sensor heads delivering a total field of view up to 360°
- Two Ambarella CV72S66 processors enable people and vehicle analytics, AI-powered search, AI-powered alerts, and occupancy trends
- Robust metal housing with IP66/IP67 weather rating and IK10 impact rating; operability between -40°C to 50°C / -40°F to 122°F
- Hybrid cloud architecture with 30-120 days (2TB-8TB) of onboard storage, redundant cloud backup, and unlimited cloud-based archiving
- Streamlined installation: single PoE+ cable, latch-based cable gland for easy PoE threading, and alignment presets for optimal lens positioning
- Backed by a 10-year warranty
Specifications
- Image Sensor
- 4 x 1 / 2.8" Progressive CMOS
- Sensor Resolution
- 4 x 4K (3856 x 2228)
- Lens Type
- Varifocal; motorized zoom
- Focal Length
- 3.18 - 8.12mm
- Aperture
- F1.9 - F3.24
- Field of View (after LDC)
- Horizontal: 112° - 42° (104° - 40°); Vertical: 56° - 23° (56° - 23°); Diagonal: 140° - 47° (119° - 45°)
- Sensor Movement
- Tilt: +25° to +90° from horizon; Pan: +/- 180°; Rotation: +/- 90° for each lens
- IR Range
- 30m / 98ft; non-adjustable
- Minimum Illumination
- 0.009 lux @ F1.9 (color); 0 lux with IR Illuminators on
- Shutter Speed
- 1 / 30 sec. to 1 / 10,000 sec.
- WDR Technology
- True WDR, dual exposure
- Compression
- H.265, H.264
- Frame Rate
- 24fps / sensor
- Onboard Storage
- Capacity: From 1TB to 8TB; Card: MicroSD, SDXC
- CPU
- 2 x Ambarella CV72S66
- Audio
- Built-in microphone; One-way audio; Effective Range 5m / 16ft
- Power Input
- IEEE 802.3bt Type 3 PoE++
- Power Consumption
- With IR: 43–57V, 0.82-0.69A, 35.0W; Without IR: 37-57V, 0.51-0.33A, 19.0W; Extended temperature range: 43-57V, 1.20-0.90A, 51.0W
- Connectivity
- RJ-45 cable connector for network/PoE connection; 10 / 100 / 1000 Mbps
- Operating Temperature
- -40°C to 50°C / -40°F to 122°F
- Humidity
- 0 to 90%
- Certifications
- FCC, ICES, VCCI, IP66/67 weather rating, IK10 impact rating, FY2019 NDAA compliant
- Weight
- Camera: 3425g / 120.81oz; Mount plate: 528g / 18.62oz
- Dimensions
- D: 262.0mm / 10.32in; H: 117.0mm / 4.61in with mount plate; H: 115.0mm / 4.53in without mount
- Body
- Aluminum
