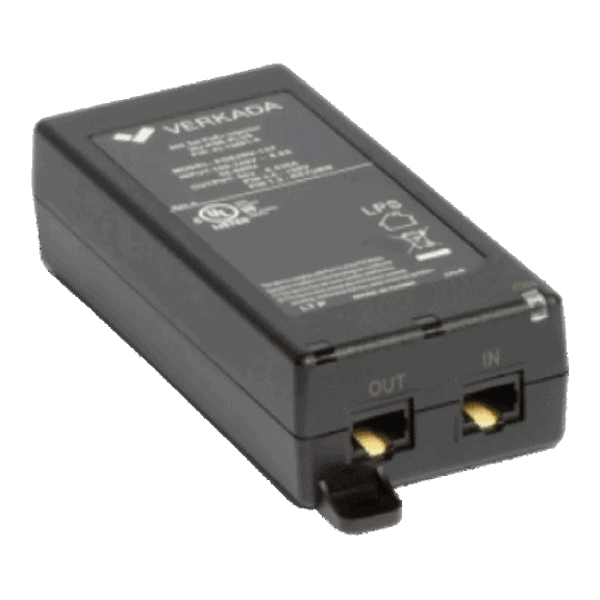

PoE Plus (802.3at) Injector
The **Verkada INJ–POE–PLUS** is a single-port PoE injector that takes in a power cable and an Ethernet cable and converts them into a single PoE+ port compliant with the IEEE 802.3at standard and Type 2.
SKU INJ-POE-PLUS
MSRP$129
Price is for this item.
Authorized Verkada reseller · cloud licensing configured at checkout
Overview
The Verkada INJ–POE–PLUS is a single-port PoE injector that takes in a power cable and an Ethernet cable and converts them into a single PoE+ port compliant with the IEEE 802.3at standard and Type 2.
- Provides up to 30W of guaranteed output power, designed for use with Verkada security cameras, access control systems, and air quality sensors
- IEEE 802.3at Type 2 compliant and backward compatible with IEEE 802.3af devices
- Supports 10/100/1000 Base–T applications at data rates of 10/100/1000 Mbps
- Includes automatic detection and protection of non-standard Ethernet terminals, so low-power devices receive only the power they need
- Compact design that fits easily in WLAN access point and IP camera installations, and can be mounted on a wall
- Ships with a US power cord for US customers and a UK power cord for European customers
Specifications
- Standards Compliance
- IEEE 802.3at Type 2 compliant; IEEE 802.3af backward compatible
- Data Rates
- 10/100/1000 Mbps
- Power over Ethernet Output
- Data Pairs: 1/2 (−), 3/6 (+); Spare Pairs: 7/8 (−), 4/5 (+); Output Voltage: 55V nominal
- Guaranteed Output Power
- 30W
- Input Power Requirements
- AC Input Voltage: 100 to 240V; AC Input Current: 0.67A; AC Frequency: 50/60Hz
- Dimensions
- L x W x H: 160.5mm x 51.8mm x 34.8mm / 6.31in x 2.04in x 1.37in
- Weight
- .44 lbs / 200g / 7.05oz
- Indicators
- System Indicator: Channel Power - Green
- Connectors
- Shielded RJ-45, EIA 568A and 568B
- Operating Ambient Temperature
- -4ºF to 104ºF / -20 ºC to 40ºC @ 30W; -4ºF to 131ºF / -20 ºC to 55ºC @ 22.5W
- Environmental Conditions / Reliability
- Operating Humidity: Maximum 90%, non-condensing; Operating Altitude: –1000 to 10,000ft; Storage Temperature: -4º to 158ºF / -20º to 70ºC; Storage Humidity: Maximum 95%, non-condensing; MTBF: 100,000 hrs @ 25ºC
- Thermal Rating
- 20 BTU / Hr (@240VAC)
- Regulatory Compliance
- IEEE 802.3af (PoE), RoHS Compliant, WEEE Compliant, CE
- Electromagnetic Emission & Immunity
- FCC Part 15, Class B; EN 55032 Class B (Emissions); EN 55024 (Immunity); VCCI
- Safety
- UL/EN/IEC 60950-1 (Ed.2)
