GC31 Cellular Gateway

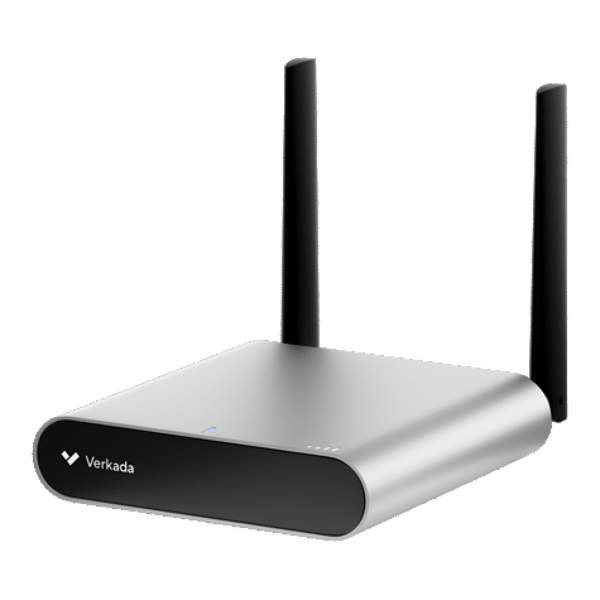

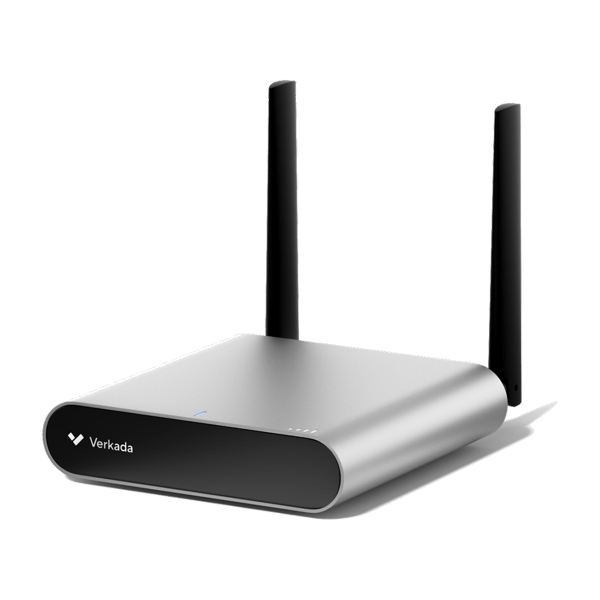

The **Verkada GC31** is an indoor cellular gateway that makes it simple to deploy Verkada products anywhere there is power and cell signal, feeding any power input and sending both power and data to any Verkada device via PoE.
SKU GC31-E-HW
Total MSRP$2,598
Hardware $1,599 + 3-year cloud license $999
Cloud license term
Hardware$1,599
Software · 3-yr cloud license$999
Total MSRP$2,598
10-Year Hardware Warranty on this Verkada camera
Authorized Verkada reseller · cloud licensing configured at checkout
Overview
The Verkada GC31 is an indoor cellular gateway that makes it simple to deploy Verkada products anywhere there is power and cell signal, feeding any power input and sending both power and data to any Verkada device via PoE.
- LTE cellular CAT 12 with 2x2 MIMO DL, plus dual SIM slots (Nano 4FF) with auto SIM failover and Verkada's out-of-the-box unlimited data plan or bring-your-own
- Two GigE RJ45 ports (1 x LAN and 1 x WAN/LAN configurable) and two 802.3bt PoE++ capable outputs delivering up to 60W total power budget
- Flexible power input: 54V DC barrel jack or included 100-240V AC/DC power adapter (region specific); 9W power consumption (excluding connected devices)
- Cloud-managed in Verkada Command with GPS/GNSS location (GPS, GLONASS, Galileo), remote power cycling, packet capture, and speed tests
- Indoor-rated for 14°F to 122°F / -10°C to 50°C operation; wall mount or tabletop with Kensington slot; weighs 1.3 lb / 0.6 kg
- Backed by a 10-year warranty
Specifications
- Connectivity
- LTE cellular CAT 12 MIMO 2x2 DL MIMO
- SIM
- 2 SIM slots (Nano 4FF); Dual SIM/auto SIM failover
- Bands
- B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B38, B39, B40, B41, B42, B43, B48 (CBRS), B66, B71
- Antennas
- 2 x external omni (SMA)
- Ethernet
- 2 x GigE RJ45 ports (1 x LAN and 1 x WAN/LAN configurable)
- Power output
- 2 x 802.3bt PoE++ capable ports; 60W total power budget
- Power input
- 54V DC Barrel Jack (6.5/3.0mm OD/ID); 100-240V AC/DC power adapter included (region specific)
- GNSS/GPS
- Passive GNSS (GPS, GLONASS, and Galileo)
- RF & EMC
- FCC, IC, UKCA, RCM, NOM, VCCI
- Cellular
- PTCRB, GCF, Verizon, T-Mobile, AT&T, FirstNet
- Safety
- UL/IEC 62368-1, CSA C22.2 No. 62368-1
- Power consumption
- 9W (Note: Does not include connected devices)
- Operating temperature
- 14°F to 122°F / -10°C to 50°C
- Humidity
- 5-90% RH non-condensing
- LEDs
- 1 status LED, 2 SIM indicator LEDs, 4 signal strength LEDs
- Weight
- 1.3lb / 0.6kg
- Dimensions
- Main Unit: L: 4.9in / 125mm, W: 4.9in / 125mm, H: 1.2in / 30mm; Antenna: L: 0.8in / 20mm, W: 0.4in / 10mm, H: 5.4in / 136mm
- Mounting options
- Wall mount or tabletop (with Kensington slot)
