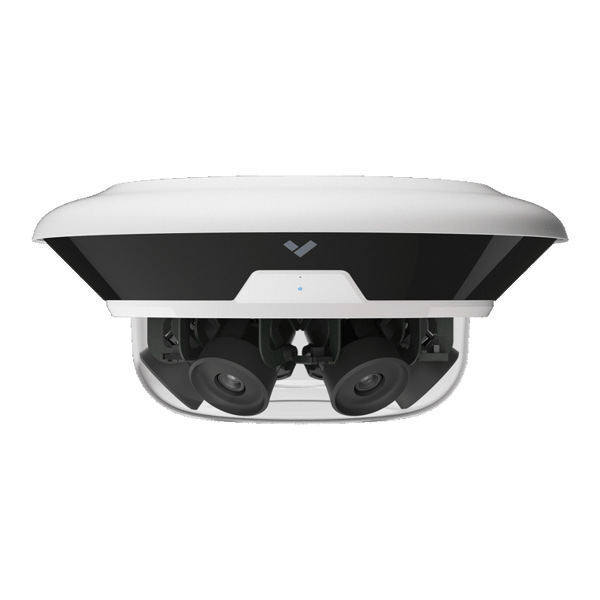

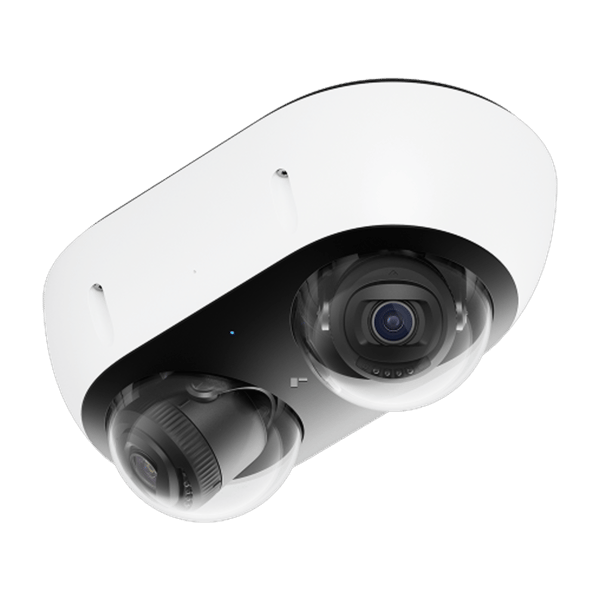

CY63-E Outdoor Two-Camera Multisensor Camera
The **Verkada CY63-E** is a two-camera outdoor multisensor that delivers bidirectional 4K coverage from a single install point, with two independent and adjustable image sensors for expansive coverage in high-traffic areas.
SKU CY63-1TBE-HW
Total MSRP$4,298
Hardware $3,099 + 3-year cloud license $1,199
Retention
Onboard storage — no NVR or extra recorder required.
Cloud license term
Hardware$3,099
Software · 3-yr cloud license$1,199
Total MSRP$4,298
10-Year Hardware Warranty on this Verkada camera
Authorized Verkada reseller · cloud licensing configured at checkout
Overview
The Verkada CY63-E is a two-camera outdoor multisensor that delivers bidirectional 4K coverage from a single install point, with two independent and adjustable image sensors for expansive coverage in high-traffic areas.
- Two 1 / 2.8" progressive CMOS image sensors, each at 4K resolution (3856 x 2228), with 2.55x optical zoom per varifocal lens
- 30 meters / 98 feet of IR range for nighttime viewing; True WDR (dual exposure)
- Individually adjustable and repositionable sensor heads for a total field of view up to 180°
- Onboard CV72S Ambarella processor enables people and vehicle analytics, AI-powered search, and AI-powered alerts
- 30 - 120 days (1TB - 4TB) of onboard storage with redundant cloud backup and unlimited cloud-based archiving
- Robust metal housing with IP66/IP67 weather rating and IK10 impact rating; operability between -40°C to 50°C / -40°F to 122°F
- Single PoE+ cable required (IEEE 802.3at Type 2), with a 10-year warranty
Specifications
- Image Sensor
- 2 x 1 / 2.8" Progressive CMOS
- Sensor Resolution
- 2 x 4K (3856 x 2228)
- Lens Type
- Varifocal; Motorized zoom
- Focal Length
- 3.18 - 8.12mm
- Aperture
- F1.9 - F3.24
- Field of View (after LDC)
- Horizontal: 115° - 44° (107 - 42°); Vertical: 61° - 25° (60° - 24°); Diagonal: 142° - 48° (123° - 48°)
- Sensor Movement
- Tilt: +0° to 60° for each lens from upright; Pan: +/- 90° for each lens; Rotation: +/- 90° for each lens
- IR Range
- 30m / 98ft; non-adjustable
- Minimum Illumination
- 0.009 lux @ F1.9 (Color); 0 lux with IR Illuminators on
- Onboard Storage
- Capacity: From 1TB to 4TB; Card: MicroSD, SDXC
- CPU
- Ambarella CV72S66
- Compression
- H.265, H.264
- Frame Rate
- 24fps / sensor
- WDR Technology
- True WDR, dual exposure
- Audio
- Built-in microphone; One-way audio; Effective range 5m / 16ft
- Power Input
- IEEE 802.3at Type 2 PoE+
- Power Consumption
- With IR: 37-57V, 0.60-0.45A, 25.5W; Without IR: 37-57V, 0.37-0.24A, 13.5W; Extended temperature range: 37-57V, 0.60-0.45A, 25.5W
- Connectivity
- RJ-45 cable connector for network/PoE connection; 10 / 100 / 1000 Mbps
- Operating Temperature
- -40°C to 50°C / -40°F to 122°F
- Humidity
- 0 to 90%
- Certifications
- FCC, ICES, CE, UKCA, RCM, VCCI, UL/cUL/IEC 62368-1, IEC 62471, IP66/67 weather rating, IK10 impact rating, FY2019 NDAA compliant
- Weight
- Camera: 2000g / 70.55 oz; Mount plate: 400g / 14.11 oz
- Body
- Aluminum
- Dimensions
- L: 253.0mm / 9.96in; W: 143.0mm / 5.63in; H: 115.0mm / 4.53in with mount plate; H: 110.0mm / 4.33in without mount plate
