CP63 Outdoor PTZ Camera

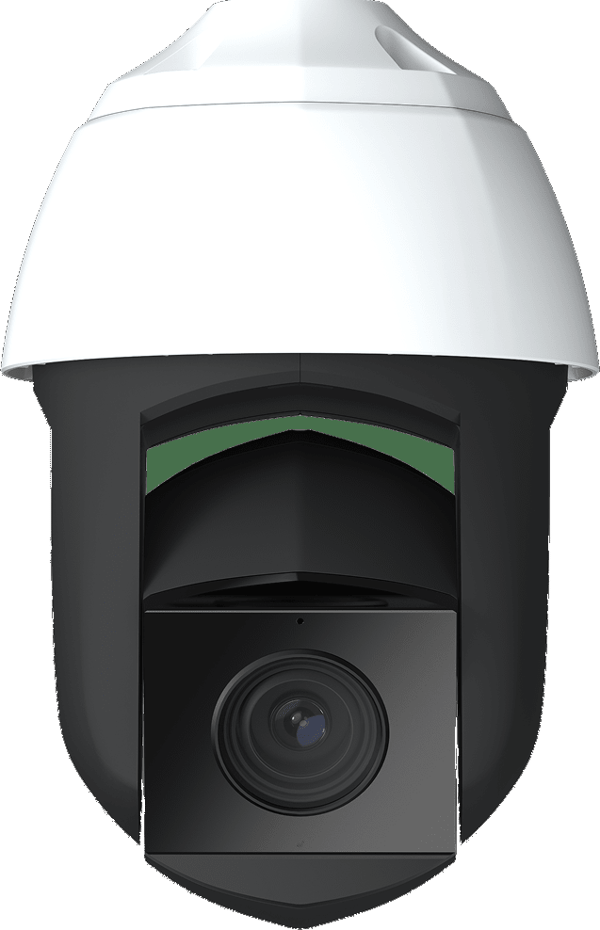

The **Verkada CP63-E** is a 4K outdoor PTZ camera with a large 1/1.8" progressive CMOS image sensor for superior image quality and precise, detailed monitoring of large areas such as sports fields, parking lots, or stadiums.
SKU CP63-1TBE-HW
Total MSRP$5,958
Hardware $5,299 + 3-year cloud license $659
Retention
Onboard storage — no NVR or extra recorder required.
Cloud license term
Hardware$5,299
Software · 3-yr cloud license$659
Total MSRP$5,958
5-Year Hardware Warranty on this Verkada camera
Authorized Verkada reseller · cloud licensing configured at checkout
Overview
The Verkada CP63-E is a 4K outdoor PTZ camera with a large 1/1.8" progressive CMOS image sensor for superior image quality and precise, detailed monitoring of large areas such as sports fields, parking lots, or stadiums.
- 4K (3840 x 2160) resolution with a 1/1.8" progressive CMOS image sensor
- Varifocal lens with 32x motorized optical zoom (6.5mm – 212mm focal length)
- 100 meters / 328 feet of IR range for long-range nighttime viewing
- 360° pan and 220° tilt, with sentry mode supporting up to three context cameras for automated monitoring
- Onboard CV72S Ambarella processor enables people and vehicle analytics, AI-powered search and AI-powered alerts
- Robust metal housing rated IP66 (weather) and IK10 (impact); operates from -40°C to 50°C / -40°F to 122°F
- 30 - 90 days (1TB - 3TB) of onboard storage with redundant cloud backup
Specifications
- Image sensor
- 1 / 1.8" Progressive CMOS
- Sensor resolution
- 4K (3840 x 2160)
- Lens type
- Varifocal; motorized zoom
- Focal length
- 6.5mm – 212mm
- Aperture
- F1.4 – F4.9
- Iris
- P-Iris
- Field of view
- Horizontal: 64° - 2°; Vertical: 37° - 1°; Diagonal: 71° - 2°
- Sensor movement
- Tilt: 220°; Pan: 360°
- Day/night
- IR-cut filter for day and night function
- IR range
- 100m / 328ft
- Minimum illumination
- 0.02 lux @ F1.4 (Color); 0 lux @ F1.4 with IR Illuminators on
- WDR technology
- True WDR, dual exposure
- Compression
- H.265 (historical video only), H.264
- Frame rate
- 24fps
- Onboard storage
- Capacity: from 1TB to 3TB; Card: MicroSD, SDXC
- CPU
- Ambarella CV72S66
- Audio
- Not supported
- Power input
- With IR: IEEE 802.3bt Type 3 PoE++; Without IR: IEEE 802.3bt Type 3 PoE++; Extended temperature range: IEEE 802.3bt Type 3 PoE++
- Power consumption
- With IR: 43-57V, 1.13-0.85A, 48.0W; Without IR: 43-57V, 0.80-0.60A, 34.0W; Extended temperature range: 43-57V, 1.20-0.89A, 51.0W
- Connectivity
- RJ-45 cable connector for network/PoE connection; 10 / 100 / 1000 Mbps
- Operating temperature
- -40°C to 50°C / -40°F to 122°F
- Humidity
- 0 to 90%
- Certifications
- FCC, IC, CE, UKCA, RCM, VCCI, NOM, IK10 impact rating, IP66 weather rating
- Weight
- Camera: 7.53kg / 16.6lbs; Pendant cap: 0.41kg / 0.9lbs
- Body
- Aluminum, plastic, glass
- Dimensions
- Ø: 256.0mm / 10.08in, H: 406.0mm / 15.98in with pendant cap; Ø: 256.0mm / 10.08in, H: 336.0mm / 13.23in without pendant cap
- Included accessories
- Rubber cap, pendant cap, T30 security L-wrench
