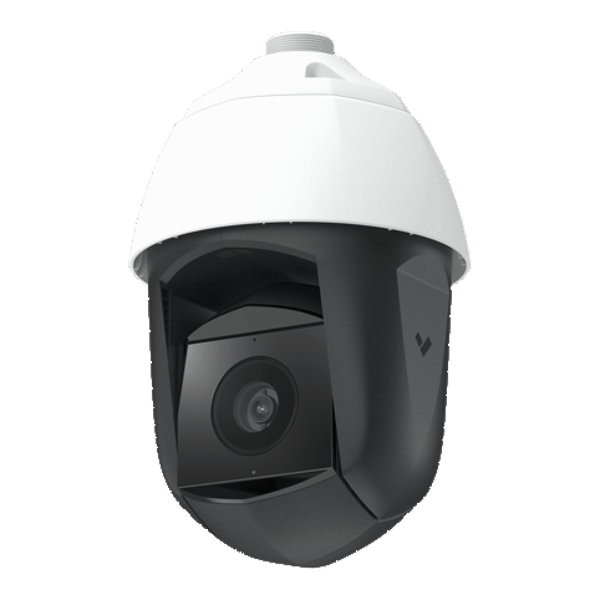

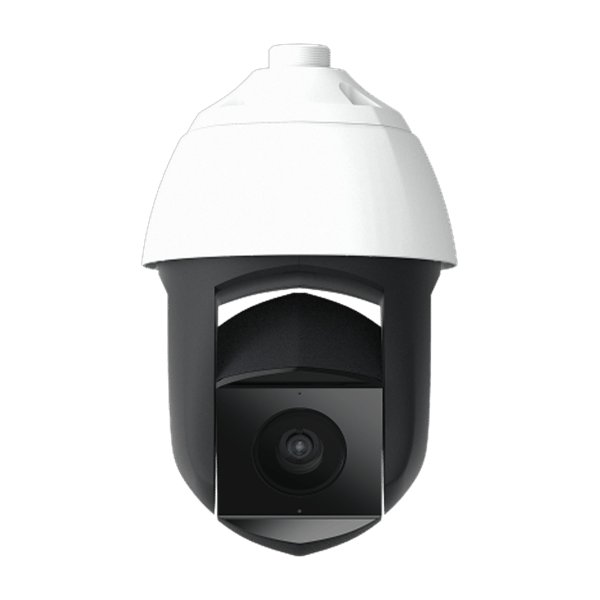

CP52 Outdoor PTZ Camera
The **Verkada CP52-E** is a 5MP outdoor pan-tilt-zoom (PTZ) camera built for expansive and detailed coverage of large areas such as stadiums, arenas, and parking lots.
SKU CP52-512E-HW
Total MSRP$4,958
Hardware $4,299 + 3-year cloud license $659
Retention
Onboard storage — no NVR or extra recorder required.
Cloud license term
Hardware$4,299
Software · 3-yr cloud license$659
Total MSRP$4,958
5-Year Hardware Warranty on this Verkada camera
Authorized Verkada reseller · cloud licensing configured at checkout
Overview
The Verkada CP52-E is a 5MP outdoor pan-tilt-zoom (PTZ) camera built for expansive and detailed coverage of large areas such as stadiums, arenas, and parking lots.
- 1/2.8" progressive CMOS image sensor at 5MP (2688 x 1944) resolution
- Varifocal lens with 28x motorized optical zoom and 100m / 328ft of IR range for long-range nighttime viewing
- 360° pan and 220° tilt with ultra low latency (<500 milliseconds) for quick, seamless transitions
- Onboard Ambarella CV22S processor enabling AI-powered search and alerts, people and vehicle analytics, person of interest and crowd detection
- Robust metal housing with IP66 weather rating and IK10 impact rating; operability from -40°C to 50°C / -40°F to 122°F
- 30 - 180 days of onboard storage (512GB - 3TB) with redundant cloud backup and unlimited cloud-based archiving
- Sentry mode support with up to three context cameras for automated monitoring of vast areas
Specifications
- Image sensor
- 1 / 2.8" Progressive CMOS
- Sensor resolution
- 5MP (2688 x 1944)
- Lens type
- Varifocal; motorized zoom
- Focal length
- 5.2mm – 148.15mm
- Optical zoom
- 28x motorized optical zoom
- Aperture
- F1.3 – F4.8
- Iris
- DC Iris
- Field of view (after LDC)
- Horizontal: 55°–2°, Vertical: 42°–1.5°, Diagonal: 66°–2.5°
- Sensor movement
- Tilt: 220°; Pan: 360°
- Day/night
- IR-cut filter for day and night function
- IR range
- 100m / 328ft
- Minimum illumination
- 0.8 lux @ F1.4 (Color); 0 lux @ F1.4 with IR Illuminators on
- Shutter speed
- 1 / 30 sec. to 1 / 10,000 sec.
- WDR technology
- True WDR, dual exposure
- Compression
- H.265 (historical video only), H.264
- Frame rate
- 24fps
- Onboard storage
- Capacity: From 512GB to 3TB; Card: MicroSD, SDXC
- CPU
- Ambarella CV22S66
- Audio
- Not supported
- Power input
- With IR: IEEE 802.3bt Type 3 PoE++; Without IR: IEEE 802.3at Type 2 PoE+; Extended temperature range: IEEE 802.3bt Type 3 PoE++
- Power consumption
- With IR: 43-57V, 1.00-0.74A, 42.3W; Without IR: 43-57V, 0.55-0.41A, 23.3W; Extended temperature range: 43-57V, 1.04-0.77A, 44.0W
- Connectivity
- RJ-45 cable connector for network/PoE connection; 10 / 100 / 1000 Mbps
- Operating temperature
- -40°C to 50°C / -40°F to 122°F
- Humidity
- 0 to 90%
- Certifications
- FCC, ICES, CE, UKCA, RCM, VCCI, KCC, NOM, ICASA, UL/cUL/IEC 62368-1, CB, IK10 impact rating, IP66 weather rating, FY2019 NDAA compliant
- Weight
- Camera: 7.07kg / 15.6lbs; Pendant cap: 0.41kg / 0.9lbs
- Dimensions
- Ø: 256.0mm / 10.08in, H: 406.0mm / 15.98in with pendant cap; H: 336.0mm / 13.23in without pendant cap
- Body
- Aluminum, plastic
- Included accessories
- Rubber cap, pendant cap, T30 security L-wrench
