Video Security · CM41

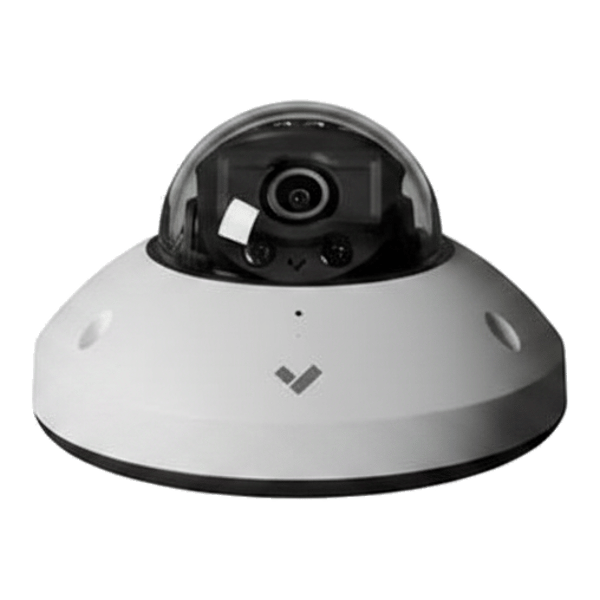

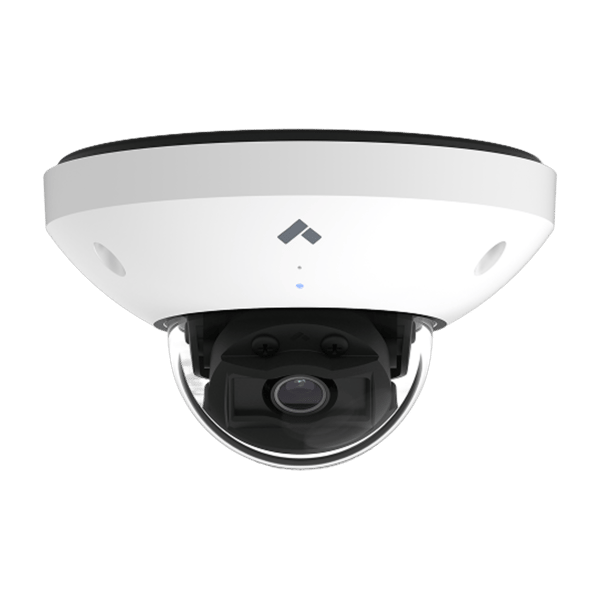

CM41-E Outdoor Mini Dome Camera
The **Verkada CM41-E** is an outdoor mini dome camera that provides reliable 5MP coverage in a compact form factor suited for discreet exterior deployments and small exposed spaces.
SKU CM41-30E-HW
Total MSRP$1,658
Hardware $999 + 3-year cloud license $659
Retention
Onboard storage — no NVR or extra recorder required.
Cloud license term
Hardware$999
Software · 3-yr cloud license$659
Total MSRP$1,658
10-Year Hardware Warranty on this Verkada camera
Authorized Verkada reseller · cloud licensing configured at checkout
Overview
The Verkada CM41-E is an outdoor mini dome camera that provides reliable 5MP coverage in a compact form factor suited for discreet exterior deployments and small exposed spaces.
- 1/2.8" progressive CMOS image sensor with 5MP resolution (2688 x 1944)
- 2.8mm fixed lens with F1.6 aperture and 15m / 49ft of IR range for well-defined nighttime viewing
- Onboard Ambarella S5L63 processor enables people and vehicle analytics, plus AI-powered search and AI-powered alerts
- From 128GB to 2TB of onboard storage with redundant cloud backup and unlimited cloud-based archiving
- IP67 weather rating and IK10 impact rating; operating temperature -40°C to 55°C / -40°F to 131°F
- EN 50155 certified with vibration testing, making it suitable for vehicle deployments
- Powered over IEEE 802.3af Type 1 PoE; 10-year warranty
Specifications
- Image sensor
- 1 / 2.8" Progressive CMOS
- Sensor resolution
- 5MP (2688 x 1944)
- Lens type
- Fixed
- Focal length
- 2.8mm
- Aperture
- F1.6
- Field of view (after LDC)
- Horizontal: 97° (78°), Vertical: 71° (63°), Diagonal: 128° (91°)
- IR range
- 15m / 49ft
- Minimum illumination
- 0.009 lux @ F1.9 (Color); 0 lux with IR Illuminators on
- Onboard storage
- Capacity: From 128GB to 2TB; Card: MicroSD, SDXC
- CPU
- Ambarella S5L63
- Compression
- H.265, H.264
- Audio
- Built-in microphone, one-way audio, effective range 5m / 15ft
- Power input
- With IR: IEEE 802.3af Type 1 PoE; Without IR: IEEE 802.3af Type 1 PoE
- Power consumption
- With IR: 37-57V, 0.14-0.09A, 5.5W; Without IR: 37-57V, 0.08-0.05A, 3.2W; Extended temperature range: 37-57V, 0.27-0.17A, 10.1W
- Connectivity
- RJ-45 cable connector for network/PoE connection; 10 / 100 Mbps
- Operating temperature
- -40°C to 55°C / -40°F to 131°F
- Humidity
- 0 to 90%
- Certifications
- FCC, ICES, CE, UKCA, RCM, VCCI, KCC, BIS, NOM, UL/cUL/IEC 62368-1, CB, IP67 weather rating, IP6K9K, IK10 impact rating, IEC 60950, FY2019 NDAA compliant, EN 50155, EN 45545, EN 50121
- Weight
- Camera: 401g / 14.14oz; Mount plate: 138g / 4.87oz
- Dimensions
- Ø: 121.0mm / 4.78in, H: 72.0mm / 2.83in
- Body
- Aluminum, plastic dome trim
