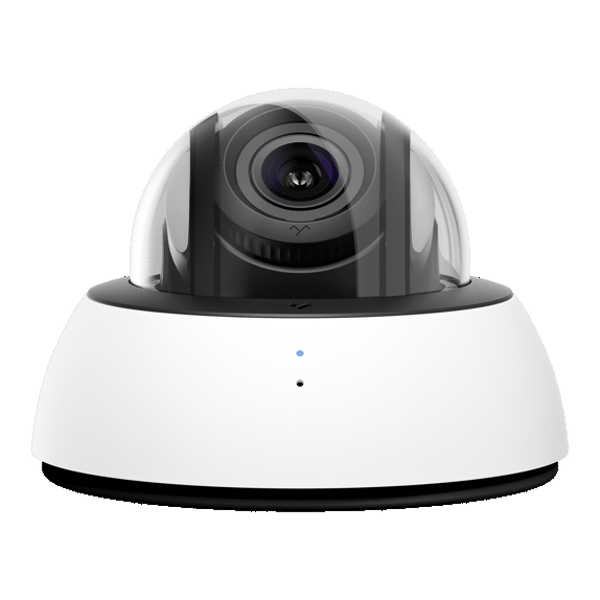

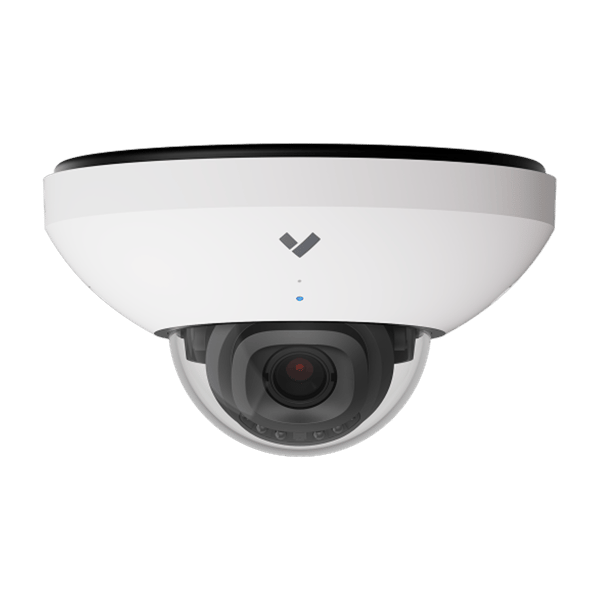

CM22 Indoor Mini Dome Camera
The **Verkada CM22** is a mini dome camera that provides 3MP coverage in a compact form factor, well-suited for discreet deployments and small spaces such as small storage closets or store aisles where space is limited or subtlety is needed.
SKU CM22-256-HW
Total MSRP$1,358
Hardware $699 + 3-year cloud license $659
Retention
Onboard storage — no NVR or extra recorder required.
Cloud license term
Hardware$699
Software · 3-yr cloud license$659
Total MSRP$1,358
5-Year Hardware Warranty on this Verkada camera
Authorized Verkada reseller · cloud licensing configured at checkout
Overview
The Verkada CM22 is a mini dome camera that provides 3MP coverage in a compact form factor, well-suited for discreet deployments and small spaces such as small storage closets or store aisles where space is limited or subtlety is needed.
- 1/2.8" progressive CMOS image sensor with 3MP (2048 x 1536) resolution
- Fixed 2.8mm lens with a 130° diagonal field of view (after LDC)
- 10 meters / 33 feet of IR range for nighttime viewing, with IR-cut filter for day and night function
- Onboard CV25S Ambarella processor enables people and vehicle detection
- 30 - 90 days of onboard storage (256GB - 768GB) with redundant cloud backup and unlimited cloud-based archiving
- 104 dB dynamic range with true WDR and dual exposure; H.265 / H.264 compression
- Powered over PoE (IEEE 802.3af Type 1); mounting plate and screw pack included for simple wall or ceiling installation
Specifications
- Image sensor
- 1 / 2.8" Progressive CMOS
- Sensor resolution
- 3MP (2048 x 1536)
- Lens type
- Fixed
- Focal length
- 2.8mm
- Aperture
- F1.6
- Field of view (after LDC)
- Horizontal: 95° (79°), Vertical: 69° (62°), Diagonal: 130° (96°)
- Sensor movement
- Tilt: 60°, Pan: 350°, Rotation: 180°
- Day/night
- IR-cut filter for day and night function
- IR range
- 10m / 33ft
- Minimum illumination
- 0.009 lux @ F1.9 (Color); 0 lux with IR Illuminators on
- Onboard storage
- Capacity: From 256GB to 768GB; Card: MicroSD, SDXC
- CPU
- Ambarella CV25S88
- Compression
- H.265, H.264
- Frame rate
- 24fps
- WDR technology
- 104 dB dynamic range, true WDR, dual exposure
- Audio
- Not supported
- Power input
- With IR: IEEE 802.3af Type 1 PoE; Without IR: IEEE 802.3af Type 1 PoE
- Power consumption
- With IR: 37-57V, 0.17-0.11A, 6.1W; Without IR: 37-57V, 0.09-0.06A, 3.2W
- Connectivity
- RJ-45 cable connector for network/PoE connection; 10 / 100 / 1000 Mbps
- Operating temperature
- -10°C to 50°C / 14°F to 122°F
- Humidity
- 0 to 90%
- Certifications
- FCC, ICES, CE, UKCA, RCM, VCCI, KCC, BIS, NOM, NRKZI, EAC, EN 50155, UL/cUL/IEC 62368-1, FY2019 NDAA compliant
- Weight
- Camera: 290g / 10.23oz; Mount plate: 98g / 3.46oz
- Body
- Aluminum, plastic dome trim
- Dimensions
- Ø: 124.5mm / 4.90in, H: 71.5mm / 2.81in
