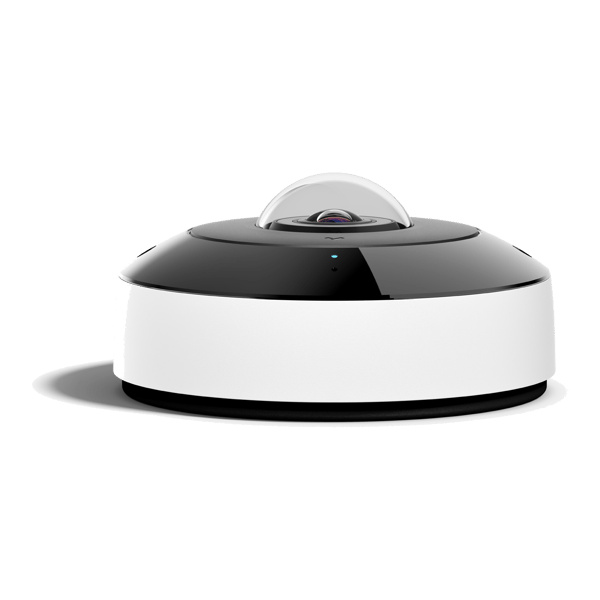

CF83-E Outdoor Fisheye Camera
The **Verkada CF83-E** is an outdoor fisheye camera that features a large 1/1.6" progressive CMOS image sensor and 12.5MP resolution for great image quality amid varying lighting conditions and inclement weather, delivering wide-angle 180-degree coverage built to minimize classic fisheye distortion.
Hardware $2,099 + 3-year cloud license $659
Onboard storage — no NVR or extra recorder required.
Authorized Verkada reseller · cloud licensing configured at checkout
The Verkada CF83-E is an outdoor fisheye camera that features a large 1/1.6" progressive CMOS image sensor and 12.5MP resolution for great image quality amid varying lighting conditions and inclement weather, delivering wide-angle 180-degree coverage built to minimize classic fisheye distortion.
- Large 1/1.6" progressive CMOS image sensor with 12.5MP resolution (3536 x 3536)
- 180-degree field of view (horizontal, vertical, and diagonal) with ePTZ, panoramic, and split viewing modes
- Onboard CV72S Ambarella processor enables people and vehicle analytics, AI-powered search, and AI-powered alerts
- 20 meters / 66 feet of IR range for nighttime viewing
- 30 - 120 days (512GB - 3TB) of onboard storage with redundant cloud backup
- Robust metal housing with IP66/67 weather rating and IK10 impact rating; operability between -40°C to 50°C / -40°F to 122°F
- Powered over IEEE 802.3at Type 2 PoE+; 10/100/1000 Mbps RJ-45 connectivity
- Image sensor
- 1 / 1.6" Progressive CMOS
- Sensor resolution
- 12.5MP (3536 x 3536); resolution (3520 x 3520)
- Lens type
- Fixed
- Focal length
- 1.7mm
- Aperture
- F2.0
- Field of view
- Horizontal: 180°, Vertical: 180°, Diagonal: 180°
- IR range
- 20m / 66ft
- Minimum illumination
- 0.009 lux @ F1.9 (Color); 0 lux with IR Illuminators on
- Day/night
- IR-cut filter for day and night function
- Frame rate
- 24fps
- WDR technology
- 120dB dynamic range, true WDR, dual exposure
- Compression
- H.265, H.264
- Onboard storage
- Capacity: From 512GB to 3TB; Card: MicroSD, SDXC
- CPU
- Ambarella CV72S66
- Audio
- Built-in microphone; One-way audio; Effective range 5m / 16ft
- Power input
- With IR: IEEE 802.3at Type 2 PoE+; Extended temperature range: IEEE 802.3at Type 2 PoE+
- Power consumption
- With IR: 43-57V, 0.46-0.34A, 19.5W; Without IR: 43-57V, 0.22-0.17A, 9.5W; Extended temperature range: 43-57V, 0.58-0.44A, 24.8W
- Connectivity
- RJ-45 cable connector for network/PoE connection; 10 / 100 / 1000 Mbps
- Operating temperature
- -40°C to 50°C / -40°F to 122°F
- Humidity
- 0 to 90%
- Certifications
- FCC, ICES, CE, UKCA, VCCI, NOM, NTRA, KCC, UL/cUL/IEC 62368-1, IK10 impact rating, ICASA, IP66/67 weather rating
- Weight
- Camera: 1368g / 48.25oz; Mount plate: 196g / 6.91oz
- Body
- Aluminum, plastic dome trim
- Dimensions
- Ø: 155.0mm / 6.10in, H: 76.2mm / 3.00in with mount plate; Ø: 155.0mm / 6.10in, H: 69.2mm / 2.72in without mount plate
