Verkada CD63-E Outdoor Dome Camera

Video Security · CD63

Verkada CD63-E Outdoor Dome Camera

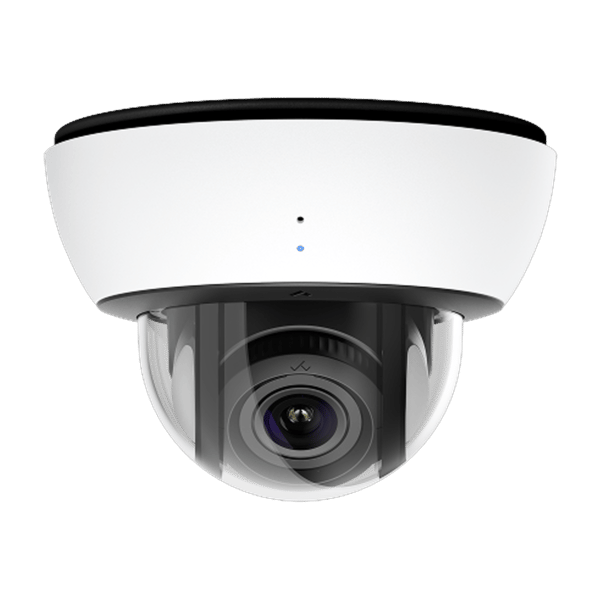

The Verkada CD63-E is an outdoor dome camera that delivers vivid 4K coverage in a variety of outdoor environments, pairing a large image sensor with a varifocal lens and long IR range for clear monitoring day or night.

Reviews & comments · Join the conversation
From$2,299HARDWARE

Required license priced separately. Choose your configuration below.

Get a volume quote
Overview

The Verkada CD63-E is an outdoor dome camera that delivers vivid 4K coverage in a variety of outdoor environments, pairing a large image sensor with a varifocal lens and long IR range for clear monitoring day or night.

  • Large 1 / 1.2" progressive CMOS image sensor with 4K (3840 x 2160) resolution
  • Varifocal lens with 2.25x optical zoom (5.9 - 13.3mm focal length) and 40 meters / 130 feet of IR range for optimal nighttime viewing
  • Onboard CV72S Ambarella processor enables people and vehicle analytics, AI-powered search, and AI-powered alerts
  • 30 - 120 days (512GB - 3TB) of onboard storage with redundant cloud backup and unlimited cloud-based archiving
  • Robust metal housing with IP66/67 weather rating and IK10 impact rating; operable from -40°C to 50°C / -40°F to 122°F
  • Streamlined installation with a latch-based cable gland for easy PoE threading, captive screws, a three-LED status indicator, and a built-in bubble level

Technical detail

Product specifications

Download datasheet (PDF)
Image sensor
1 / 1.2" Progressive CMOS
Sensor resolution
4K (3840 x 2160)
Lens type
Varifocal; motorized zoom
Focal length
5.9 - 13.3mm
Aperture
F1.5 - F2.9
Iris
P-Iris
Field of view (after LDC)
Horizontal: 109° - 49° (102° - 47°); Vertical: 58° - 28° (58° - 27°); Diagonal: 113° - 55° (107° - 53°)
Sensor movement
Tilt: 65°; Pan: 360°; Rotation: 350°
IR range
40m / 130ft
Minimum illumination
0.009 lux @ F1.9 (Color); 0 lux with IR Illuminators on
Day/night
IR-cut filter for day and night function
Onboard storage
Capacity: From 512GB to 3TB; Card: MicroSD, SDXC
CPU
Ambarella CV72S66
Compression
H.265, H.264
Frame rate
24fps
Audio
Built-in microphone; One-way audio; Effective range 5m / 16ft
Power input
With IR: IEEE 802.3at Type 2 PoE+; Without IR: IEEE 802.3af Type 1 PoE; Extended temperature range: IEEE 802.3at Type 2 PoE+
Power consumption
With IR: 43-57V, 0.48-0.36A, 20.4W; Without IR: 43-57V, 0.27-0.20A, 11.3W; Extended temperature range: 43-57V, 0.60-0.45A, 25.5W
Connectivity
RJ-45 cable connector for network/PoE connection; 10 / 100 / 1000 Mbps
Operating temperature
-40°C to 50°C / -40°F to 122°F
Humidity
0 to 90%
Certifications
FCC, ICES, UKCA, CE, RCM, NTRA, NOM, KCC, VCCI, IK10 impact rating, IEC 62368-1, IP66/67 weather rating, Compliant to UL 2043
Weight
Camera: 1386g / 48.89oz; Mount plate: 193g / 6.81oz
Body
Aluminum, plastic dome trim
Dimensions
With mount plate: Ø 155.0mm / 6.10in, H 111.4mm / 4.39in; Without mount plate: Ø 155.0mm / 6.10in, H 104.4mm / 4.11in
