Video Security · CD63

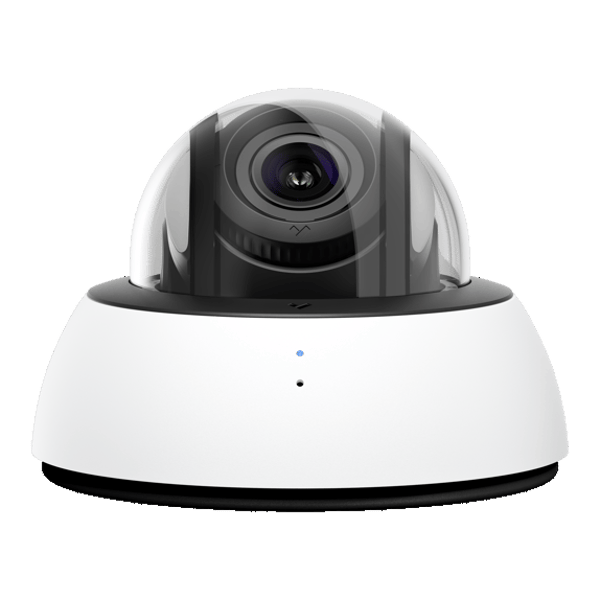

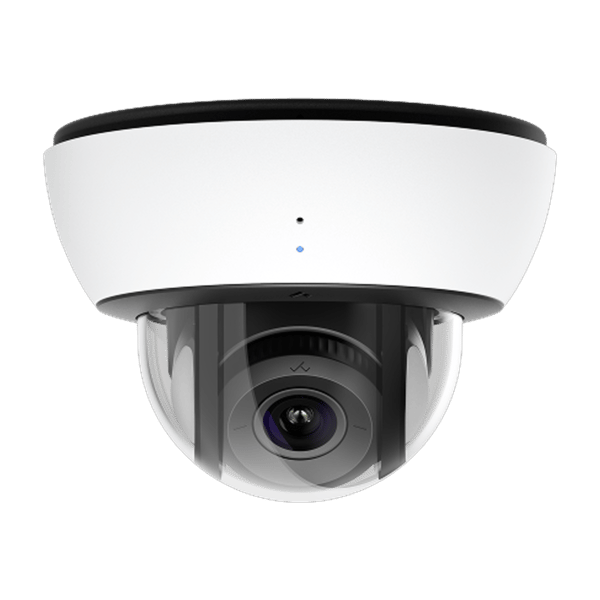

CD63 Indoor Dome Camera
The **Verkada CD63** is an indoor dome camera that provides detailed 4K coverage in a variety of indoor environments, delivering image quality in both broad daylight and low-light conditions.
SKU CD63-512-HW
Total MSRP$2,758
Hardware $2,099 + 3-year cloud license $659
Retention
Onboard storage — no NVR or extra recorder required.
Cloud license term
Hardware$2,099
Software · 3-yr cloud license$659
Total MSRP$2,758
10-Year Hardware Warranty on this Verkada camera
Authorized Verkada reseller · cloud licensing configured at checkout
Overview
The Verkada CD63 is an indoor dome camera that provides detailed 4K coverage in a variety of indoor environments, delivering image quality in both broad daylight and low-light conditions.
- Large 1 / 1.2" progressive CMOS image sensor with 4K (3840 x 2160) resolution
- Varifocal lens with 2.25x optical zoom and 40 meters / 130 feet of IR range for nighttime viewing
- Onboard CV72S Ambarella processor enabling AI-powered search, occupancy trends, line crossing, loitering, and person of interest (POI) alerts
- 30 - 120 days (512GB - 3TB) of onboard storage with redundant cloud backup and unlimited cloud-based archiving
- Metal housing and IK08 impact rating protect against vandalism, tampering, and sun damage
- Streamlined installation with captive screws, a three-LED light status indicator, and a built-in bubble level
- 10-year warranty
Specifications
- Image sensor
- 1 / 1.2" Progressive CMOS
- Sensor resolution
- 4K (3840 x 2160)
- Lens type
- Varifocal; motorized zoom
- Focal length
- 5.9 - 13.3mm
- Aperture
- F1.5 - F2.9
- Iris
- P-Iris
- Field of view (after LDC)
- Horizontal: 109° - 49° (102° - 47°); Vertical: 58° - 28° (58° - 27°); Diagonal: 113° - 55° (107° - 53°)
- IR range
- 40m / 130ft
- Minimum illumination
- 0.009 lux @ F1.9 (Color); 0 lux with IR Illuminators on
- Onboard storage
- Capacity: From 512GB to 3TB; Card: MicroSD, SDXC
- CPU
- Ambarella CV72S66
- Compression
- H.265, H.264
- Audio
- Built-in microphone; One-way audio; Effective range 5m / 16ft
- Power input
- With IR: IEEE 802.3at Type 2 PoE+; Without IR: IEEE 802.3af Type 1 PoE
- Power consumption
- With IR: 43-57V, 0.48-0.36A, 20.4W; Without IR: 43-57V, 0.20-0.27A, 11.3W
- Connectivity
- RJ-45 cable connector for network/PoE connection; 10 / 100 / 1000 Mbps
- Operating temperature
- -10°C to 50°C / 14°F to 122°F
- Humidity
- 0 to 90%
- Certifications
- FCC, ICES, UKCA, CE, RCM, VCCI, NOM, KCC, IEC 62368-1, IK08 impact rating, Compliant to UL 2043
- Weight
- Camera: 1324g / 46.70oz; Mount plate: 193g / 6.81oz
- Dimensions
- Ø: 155.0mm / 6.10in, H: 111.4mm / 4.39in with mount plate; Ø: 155.0mm / 6.10in, H: 104.4mm / 4.11in without mount plate
- Body
- Aluminum, plastic dome trim
