Video Security · CD43

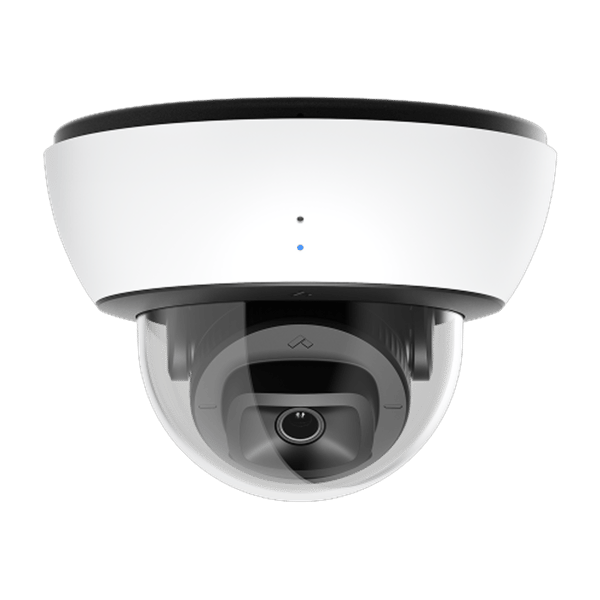

CD43-E Outdoor Dome Camera
The **Verkada CD43-E** is an outdoor dome camera that provides reliable 5MP coverage for clear visibility of outdoor environments like parking lot entrances, building exteriors, and loading docks.
SKU CD43-256E-HW
Total MSRP$2,058
Hardware $1,399 + 3-year cloud license $659
Retention
Onboard storage — no NVR or extra recorder required.
Cloud license term
Hardware$1,399
Software · 3-yr cloud license$659
Total MSRP$2,058
10-Year Hardware Warranty on this Verkada camera
Authorized Verkada reseller · cloud licensing configured at checkout
Overview
The Verkada CD43-E is an outdoor dome camera that provides reliable 5MP coverage for clear visibility of outdoor environments like parking lot entrances, building exteriors, and loading docks.
- 1/2.8" progressive CMOS image sensor at 5MP resolution (2688 x 1944)
- 20 meters / 66 feet of IR range for well-defined nighttime viewing
- Onboard CV75S Ambarella processor for advanced people and vehicle analytics, AI-powered search, and AI-powered alerts
- IP66/67 weather rating and IK10 impact rating to withstand harsh conditions
- 30 - 365 days (256GB - 2TB) of onboard storage with redundant cloud backup
- Operability between -40°C to 50°C / -40°F to 122°F
- Streamlined installation with latch-based cable gland for PoE threading, captive screws, three-LED status indicator, and built-in bubble level
Specifications
- Image sensor
- 1 / 2.8" Progressive CMOS
- Sensor resolution
- 5MP (2688 x 1944)
- Lens type
- Fixed
- Focal length
- 3.2mm
- Aperture
- F1.6
- Field of view (after LDC)
- Horizontal: 101° (84°), Vertical: 73° (66°), Diagonal: 130° (99°)
- IR range
- 20m / 66ft
- Minimum illumination
- 0.009 lux @ F1.9 (Color); 0 lux with IR Illuminators on
- Onboard storage
- Capacity: From 256GB to 2TB; Card: MicroSD, SDXC
- CPU
- Ambarella CV75S88
- Compression
- H.265, H.264
- Frame Rate
- 24fps
- Audio
- Built-in microphone; one-way audio; effective range 5m / 16ft
- Power input
- With IR: IEEE 802.3at Type 2 PoE+; Without IR: IEEE 802.3af Type 1 PoE; Extended temperature range: IEEE 802.3at Type 2 PoE+
- Power consumption
- With IR: 16.8W; Without IR: 8.5W; Extended temperature range: 20.2W
- Connectivity
- RJ-45 cable connector for network/PoE connection; 10 / 100 / 1000 Mbps
- Operating temperature
- -40°C to 50°C / -40°F to 122°F
- Humidity
- 0 to 90%
- Certifications
- FCC, ICES, UKCA, CE, RCM, NOM, VCCI, IK10 impact rating, IP66/IP67 weather rating, Compliant to UL 2043
- Weight
- Camera: 1100g / 38.80oz; Mount plate: 193g / 6.81oz
- Dimensions
- With mount plate: Ø 155.0mm / 6.10in, H 111.4mm / 4.39in; Without mount plate: Ø 155.0mm / 6.10in, H 104.4mm / 4.11in
- Body
- Aluminum, plastic dome trim
