Video Security · CD43
CD43 Indoor Dome Camera

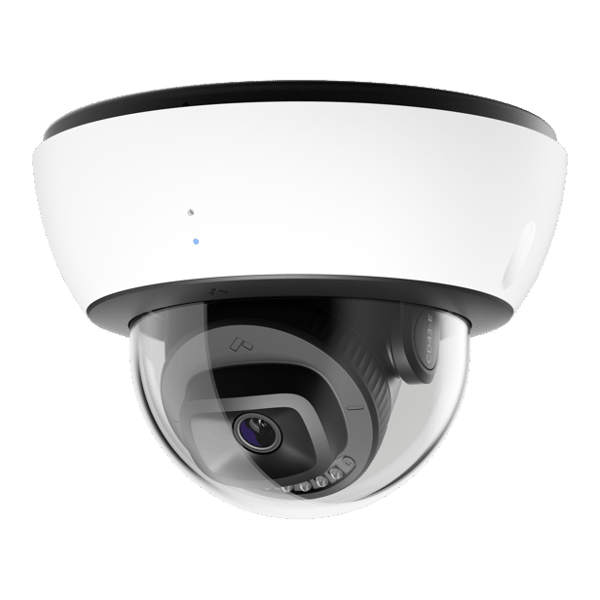

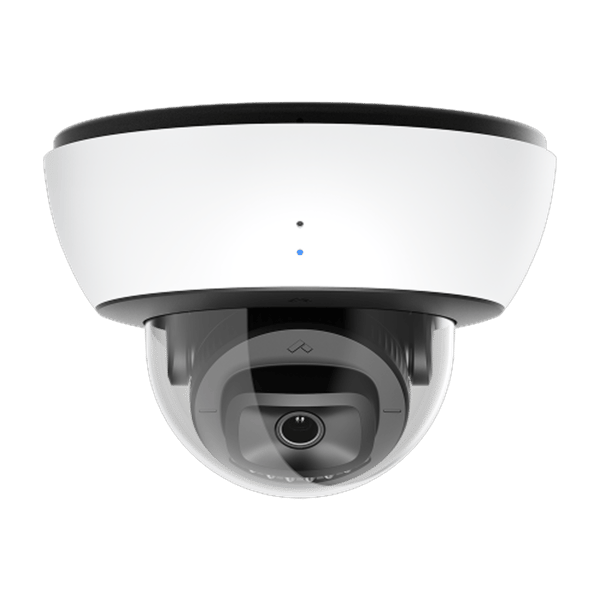

The **Verkada CD43** is an indoor dome camera that provides reliable 5MP coverage for clear monitoring of indoor spaces like offices, lobbies, and parking garages.
SKU CD43-256-HW
Total MSRP$1,858
Hardware $1,199 + 3-year cloud license $659
Retention
Onboard storage — no NVR or extra recorder required.
Cloud license term
Hardware$1,199
Software · 3-yr cloud license$659
Total MSRP$1,858
10-Year Hardware Warranty on this Verkada camera
Authorized Verkada reseller · cloud licensing configured at checkout
Overview
The Verkada CD43 is an indoor dome camera that provides reliable 5MP coverage for clear monitoring of indoor spaces like offices, lobbies, and parking garages.
- 1 / 2.8" progressive CMOS image sensor at 5MP resolution (2688 x 1944)
- 20 meters / 66 feet of IR range for well-defined nighttime viewing
- Onboard CV75S Ambarella processor for advanced people and vehicle analytics, AI-powered search, and AI-powered alerts
- 30 - 365 days of onboard storage (256GB - 2TB) with redundant cloud backup and unlimited cloud-based archiving
- Hybrid cloud architecture with onboard storage and processing for reduced bandwidth consumption and coverage at scale
- Streamlined installation with captive screws in the mounting plate, a three-LED status indicator, and a built-in bubble level
- IK08 impact rating and 10-year warranty for enterprise-grade durability
Specifications
- Image sensor
- 1 / 2.8" Progressive CMOS
- Sensor resolution
- 5MP (2688 x 1944)
- Lens type
- Fixed
- Focal length
- 3.2mm
- Aperture
- F1.6
- Iris
- Fixed
- Field of view (after LDC)
- Horizontal: 101° (84°); Vertical: 73° (66°); Diagonal: 130° (99°)
- Sensor movement
- Tilt: 60°; Pan: 360°; Rotation: 350°
- Shutter speed
- 1 / 30 sec. to 1 / 10,000 sec.
- Day/night
- IR-cut filter for day and night function
- IR range
- 20m / 66ft
- Minimum illumination
- 0.009 lux @ F1.9 (Color); 0 lux with IR Illuminators on
- Onboard storage
- Capacity: From 256GB to 2TB; Card: MicroSD, SDXC
- CPU
- Ambarella CV75S88
- Compression
- H.265, H.264
- Audio
- Supported; One-way audio; Built-in microphone; Effective range 5m / 16ft
- Power input
- With IR: IEEE 802.3at Type 2 PoE+; Without IR: IEEE 802.3af Type 1 PoE
- Power consumption
- With IR: 37V-57V, 0.39A-0.29A, 16.8W; Without IR: 37V-57V, 0.23A-0.15A, 8.5W
- Connectivity
- RJ-45 cable connector for network/PoE connection; 10 / 100 / 1000 Mbps
- Operating temperature
- -10°C to 50°C / 14°F to 122°F
- Humidity
- 0 to 90%
- Certifications
- FCC, ICES, UKCA, CE, RCM, NOM, VCCI, ICASA, IK08 impact rating, Compliant to UL 2043
- Weight
- Camera: 951g / 33.55oz; Mount plate: 193g / 6.81oz
- Body
- Aluminum, plastic dome trim
- Dimensions
- With mount plate: Ø 155.0mm / 6.10in, H 109.0mm / 4.29in; Without mount plate: Ø 155.0mm / 6.10in, H 101.9mm / 4.01in
- Included accessories
- Screw packs, mount plate with leveler, T10 security driver
