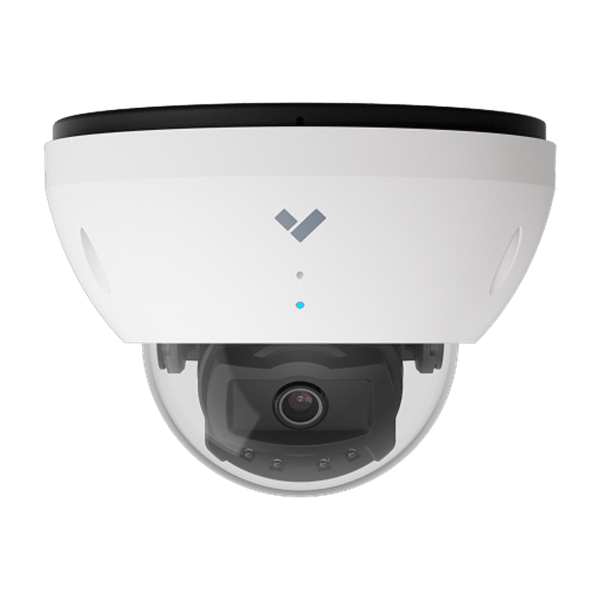

Verkada CD32 Outdoor Dome Camera
The Verkada CD32-E is an outdoor dome camera that pairs a 1/2.8" progressive CMOS image sensor with 15 meters / 49 feet of IR range to provide supplemental 3MP coverage in a variety of lighting conditions.
Reviews & comments · Join the conversationRequired license priced separately. Choose your configuration below.
The Verkada CD32-E is an outdoor dome camera that pairs a 1/2.8" progressive CMOS image sensor with 15 meters / 49 feet of IR range to provide supplemental 3MP coverage in a variety of lighting conditions.
- 3MP resolution (2048 x 1536) with a fixed 2.8mm lens and 1/2.8" progressive CMOS sensor
- 15 meters / 49 feet of IR range for well-defined nighttime viewing
- Onboard CV25S Ambarella processor enabling AI-powered search, occupancy trends, line crossing, loitering, and person of interest (POI) alerts
- IP67 weather rating and IK10 impact rating, operable from -40°C to 50°C / -40°F to 122°F
- 256GB to 768GB of onboard storage (30 - 90 days) with redundant cloud backup and unlimited cloud-based archiving
- Mounting plate and screw pack included, with LED status indicator and digital mute switch for audio
- Backed by a 10-year warranty
Technical detail
Product specifications
- Image sensor
- 1 / 2.8" Progressive CMOS
- Sensor resolution
- 3MP (2048 x 1536)
- Lens type
- Fixed
- Focal length
- 2.8mm
- Aperture
- F1.6
- IR range
- 15m / 49ft
- Minimum illumination
- 0.009 lux @ F1.9 (Color); 0 lux with IR Illuminators on
- Field of view (after LDC)
- Horizontal: 97° (78°), Vertical: 71° (63°), Diagonal: 128° (91°)
- Onboard storage
- Capacity: From 256GB to 768GB; Card: MicroSD, SDXC
- CPU
- Ambarella CV25S88
- Compression
- H.265, H.264
- Frame rate
- 24fps
- Audio
- Supported; One-way audio; Built-in microphone; Effective range 5m / 15ft
- Power input
- With IR: IEEE 802.3af Type 1 PoE; Without IR: IEEE 802.3af Type 1 PoE; Extended temperature range: IEEE 802.3at Type 2 PoE+
- Power consumption
- With IR: 37-57V, 0.23-0.15A, 8.6W; Without IR: 37-57V, 0.11-0.07A, 4.3W; Extended temperature range: 37-57V, 0.46-0.30A, 16.9W
- Connectivity
- RJ-45 cable connector for network/PoE connection; 10 / 100 Mbps
- Operating temperature
- -40°C to 50°C / -40°F to 122°F
- Humidity
- 0 to 90%
- Certifications
- FCC, ICES, CE, UKCA, RCM, VCCI, KCC, BIS, NOM, UL/cUL/IEC 62368-1, CB, IP67 weather rating, IK10 impact rating, FY2019 NDAA compliant
- Weight
- Camera: 847g / 29.88oz; Mount plate: 174g / 6.14oz
- Body
- Aluminum, plastic dome trim
- Dimensions
- Ø: 155.0mm / 6.10in, H: 114.6mm / 4.51in with mount plate; Ø: 155.0mm / 6.10in, H: 107.6mm / 4.24in without mount plate
How do I choose my configuration?
Open the configuration panel to see the available product variants and their prices. Review the selected configuration before adding it to your cart.
Is the license included in the starting price?
The starting price is for hardware. The configuration panel shows eligible license terms and the combined price before you add the product to your cart.
What is the hardware warranty?
The catalog lists the hardware warranty as 10 years. Consult the manufacturer’s warranty terms for coverage and exclusions.
