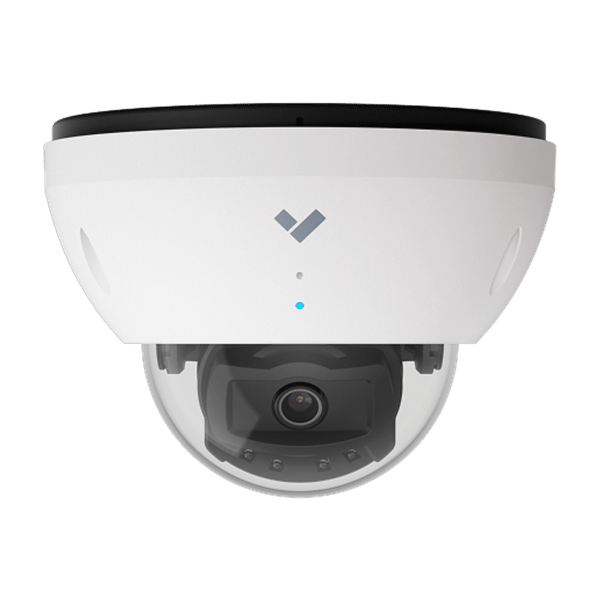

Verkada CD22 Outdoor Dome Camera

Video Security · CD22

Verkada CD22 Outdoor Dome Camera

The Verkada CD22-E is an outdoor dome camera that features a 1/2.8" progressive CMOS image sensor and 10 meters / 33 feet of IR range to provide supplemental 3MP coverage in various lighting and weather conditions.

Reviews & comments · Join the conversation
From$999HARDWARE

Required license priced separately. Choose your configuration below.

Get a volume quote
Overview

The Verkada CD22-E is an outdoor dome camera that features a 1/2.8" progressive CMOS image sensor and 10 meters / 33 feet of IR range to provide supplemental 3MP coverage in various lighting and weather conditions.

  • 3MP resolution (2048 x 1536) with a 1/2.8" progressive CMOS image sensor for essential outdoor coverage
  • 10 meters / 33 feet of IR range for nighttime viewing
  • Onboard CV25S Ambarella processor enables people and vehicle detection
  • IP67 weather rating and IK10 impact rating, with operability between -40°C to 50°C / -40°F to 122°F
  • 30 - 90 days (256GB - 768GB) of onboard storage with redundant cloud backup and unlimited cloud-based archiving
  • Hybrid cloud architecture for reduced bandwidth consumption and coverage at scale
  • Included mounting plate and screw pack for straightforward installation on exterior walls or flat overhangs

Technical detail

Product specifications

Download datasheet (PDF)
Image sensor
1 / 2.8" Progressive CMOS
Sensor resolution
3MP (2048 x 1536)
Lens type
Fixed
Focal length
2.8mm
Aperture
F1.6
Field of view (after LDC)
Horizontal: 97° (78°), Vertical: 71° (63°), Diagonal: 128° (91°)
IR range
10m / 33ft
Minimum illumination
0.009 lux @ F1.9 (Color); 0 lux with IR Illuminators on
Onboard storage
Capacity: From 256GB to 768GB; Card: MicroSD, SDXC
CPU
Ambarella CV25S88
Compression
H.265, H.264
Power input
With IR: IEEE 802.3af Type 1 PoE; Without IR: IEEE 802.3af Type 1 PoE; Extended temperature range: IEEE 802.3at Type 2 PoE+
Power consumption
With IR: 37-57V, 0.23-0.15A, 8.6W; Without IR: 37-57V, 0.11-0.07A, 4.3W; Extended temperature range: 37-57V, 0.46-0.30A, 16.9W
Connectivity
RJ-45 cable connector for network/PoE connection; 10 / 100 Mbps
Operating temperature
-40°C to 50°C / -40°F to 122°F
Humidity
0 to 90%
Certifications
FCC, ICES, CE, UKCA, RCM, VCCI, KCC, BIS, NOM, UL/cUL/IEC 62368-1, CB, IP67 weather rating, IK10 impact rating, FY2019 NDAA compliant
Weight
Camera: 847g / 29.88oz; Mount plate: 174g / 6.14oz
Dimensions
With mount plate: Ø 155.0mm / 6.10in, H 114.6mm / 4.51in; Without mount plate: Ø 155.0mm / 6.10in, H 107.6mm / 4.24in
Body
Aluminum, plastic dome trim
