Video Security · CD22

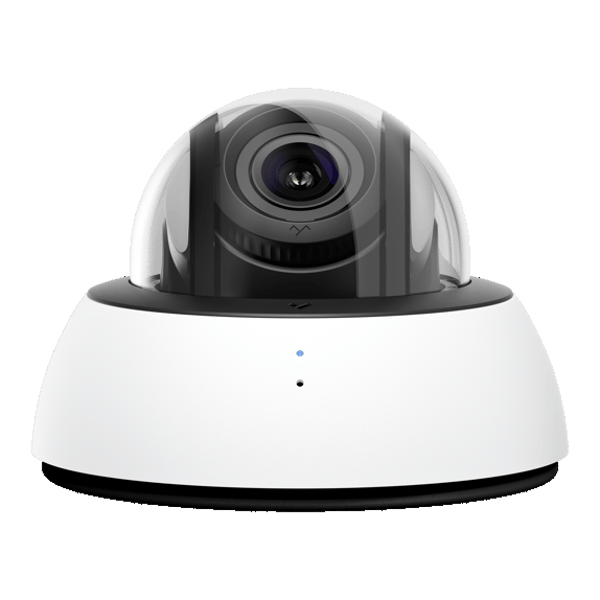

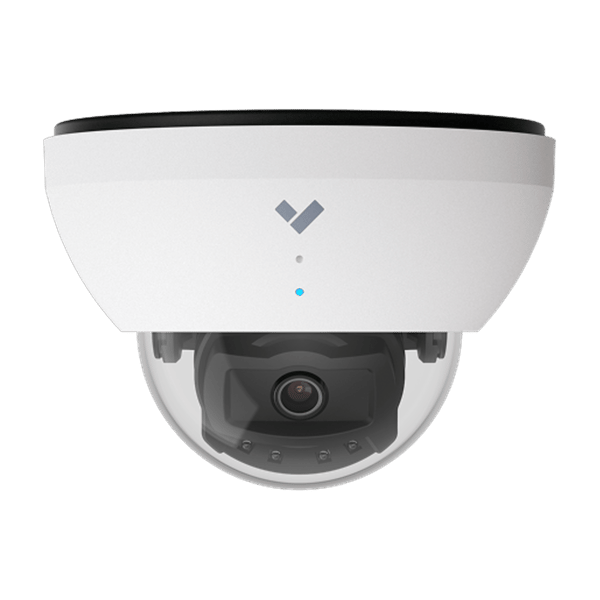

CD22 Indoor Dome Camera
The **Verkada CD22** is an indoor dome camera that provides essential 3MP coverage in a variety of indoor spaces, optimized for covering areas like storage closets and store aisles where supplemental visibility is necessary.
SKU CD22-256-HW
Total MSRP$1,458
Hardware $799 + 3-year cloud license $659
Retention
Onboard storage — no NVR or extra recorder required.
Cloud license term
Hardware$799
Software · 3-yr cloud license$659
Total MSRP$1,458
5-Year Hardware Warranty on this Verkada camera
Authorized Verkada reseller · cloud licensing configured at checkout
Overview
The Verkada CD22 is an indoor dome camera that provides essential 3MP coverage in a variety of indoor spaces, optimized for covering areas like storage closets and store aisles where supplemental visibility is necessary.
- 1/2.8" progressive CMOS image sensor at 3MP resolution (2048 x 1536)
- 2.8mm fixed lens with 10m / 33ft of IR range for nighttime viewing
- Onboard Ambarella CV25S88 processor enabling people and vehicle detection
- 256GB to 768GB of onboard storage (30-90 days of retention) with redundant cloud backup
- IK08 impact rating with an aluminum body for a durable, tamper-resistant design
- Powered over IEEE 802.3af Type 1 PoE; simple installation with included mounting plate and screw pack
- NDAA compliant, backed by a 5-year warranty
Specifications
- Image sensor
- 1 / 2.8" Progressive CMOS
- Sensor resolution
- 3MP (2048 x 1536)
- Lens type
- Fixed
- Focal length
- 2.8mm
- Aperture
- F1.6
- Iris
- Fixed
- Field of view (after LDC)
- Horizontal: 97° (78°); Vertical: 71° (63°); Diagonal: 128° (91°)
- IR range
- 10m / 33ft
- Minimum illumination
- 0.009 lux @ F1.9 (Color); 0 lux with IR Illuminators on
- Day/night
- IR-cut filter for day and night function
- Onboard storage
- Capacity: From 256GB to 768GB; Card: MicroSD, SDXC
- CPU
- Ambarella CV25S88
- Compression
- H.265, H.264
- Frame rate
- 24fps
- Audio
- Not Supported
- Power input
- With IR: IEEE 802.3af Type 1 PoE; Without IR: IEEE 802.3af Type 1 PoE
- Power consumption
- With IR: 37-57V, 0.23-0.15A, 8.6W; Without IR: 37-57V, 0.11-0.07A, 4.3W
- Connectivity
- RJ-45 cable connector for network/PoE connection; 10 / 100 Mbps
- Operating temperature
- -10°C to 50°C / 14°F to 122°F
- Humidity
- 0 to 90%
- Certifications
- FCC, ICES, CE, UKCA, RCM, CB, VCCI, KCC, BIS, NOM, UL/cUL/IEC 62368-1, IK08 impact rating, FY2019 NDAA compliant
- Weight
- Camera: 608g / 21.45oz; Mountplate: 140g / 4.94oz
- Body
- Aluminum, plastic dome trim
- Dimensions
- With mount plate: Ø 146.0mm / 5.75in, H 104.3mm / 4.11in; Without mount plate: Ø 146.0mm / 5.75in, H 99.8mm / 3.93in
