Video Security · CB63

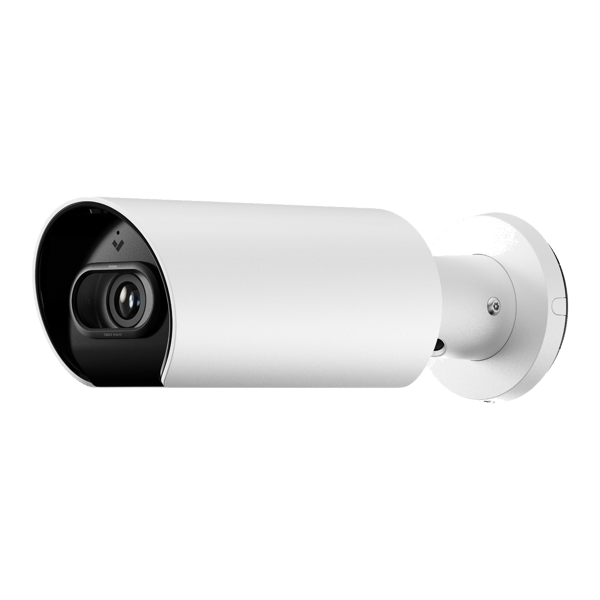

CB63-E Outdoor Bullet Camera
The **Verkada CB63-E** is an outdoor 4K bullet camera that delivers highly-detailed coverage for exterior areas and perimeter protection, pairing a varifocal zoom lens with onboard analytics and license plate recognition.
SKU CB63-512E-HW
Total MSRP$3,058
Hardware $2,399 + 3-year cloud license $659
Retention
Onboard storage — no NVR or extra recorder required.
Cloud license term
Hardware$2,399
Software · 3-yr cloud license$659
Total MSRP$3,058
10-Year Hardware Warranty on this Verkada camera
Authorized Verkada reseller · cloud licensing configured at checkout
Overview
The Verkada CB63-E is an outdoor 4K bullet camera that delivers highly-detailed coverage for exterior areas and perimeter protection, pairing a varifocal zoom lens with onboard analytics and license plate recognition.
- 1 / 1.2" progressive CMOS image sensor at 4K (3840 x 2160) resolution
- Varifocal lens with 2.25x motorized optical zoom (5.9mm - 13.3mm focal length)
- IR LEDs with 50m / 164ft range for optimal nighttime viewing
- Onboard CV72S Ambarella processor for AI-powered analytics, occupancy trends, and POI alerts
- License plate recognition capturing plates at speeds up to 80 mph / 128 kph
- IP66/67 weather rating, IK10 impact rating, and operability from -40°C to 50°C / -40°F to 122°F
- Onboard storage from 512GB to 3TB with redundant cloud backup; 10-year warranty
Specifications
- Image sensor
- 1 / 1.2" progressive CMOS
- Sensor resolution
- 4K (3840 x 2160)
- Lens type
- Varifocal; motorized zoom (2.25x)
- Focal length
- 5.9mm - 13.3mm
- Aperture
- F1.5 - F2.9
- Iris
- P-Iris
- Field of view (after LDC)
- Horizontal: 110° - 50° (108° - 48°); Vertical: 59° - 28° (58° - 27°); Diagonal: 114° - 56° (112° - 54°)
- Day/night
- IR-cut filter for day and night function
- IR range
- 50m / 164ft
- Minimum illumination
- 0.009 lux @ F1.9 (color); 0 lux with onboard IR illuminators on
- Shutter speed
- 1 / 30 sec. to 1 / 10,000 sec.
- Onboard storage
- Capacity: from 512GB to 3TB; Card: microSD, SDXC
- CPU
- Ambarella CV72S66
- Compression
- H.265, H.264
- Frame rate
- 24fps
- Audio
- Not supported
- Power input
- With IR: IEEE 802.3at Type 2 PoE+; Without IR: IEEE 802.3at Type 2 PoE+; Extended temperature range: IEEE 802.3at Type 2 PoE+
- Power consumption
- With IR: 43-57V, 0.48-0.36A, 23.0W; Without IR: 43-57V, 0.27-0.20A, 12.1W; Extended temperature range: 43-57V, 0.60-0.45A, 25.5W
- Connectivity
- RJ-45 cable connector for network/PoE connection; 10 / 100 / 1000 Mbps
- Operating temperature
- -40°C to 50°C / -40°F to 122°F
- Humidity
- 0 to 90%
- Certifications
- FCC, ICES, CE, UKCA, RCM, VCCI, BIS, KC, BSMI, UL/IEC62368-1, IP66/67 weather rating, IK10 impact rating
- Weight
- Camera: 1780g / 62.79 oz; Mount plate: 80g / 2.82 oz
- Dimensions
- L: 301.0mm / 11.85in, Ø: 100.0mm / 3.94in
- Body
- Aluminum
