Video Security · CB52

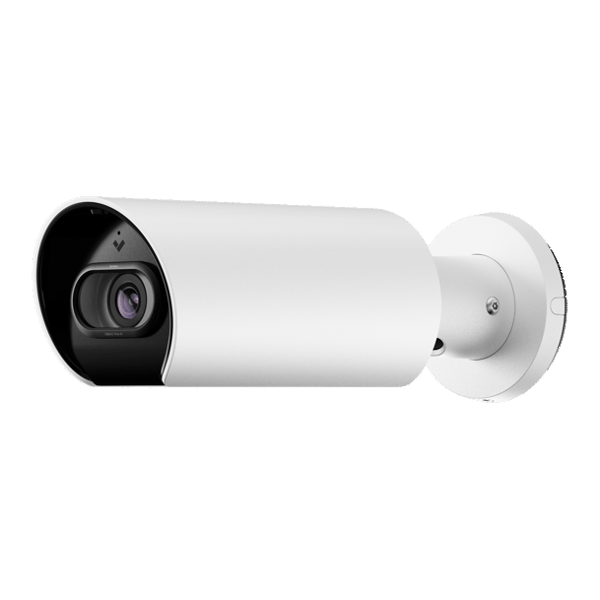

CB52-E Outdoor Bullet Camera
The **Verkada CB52-E** is an outdoor 5MP bullet camera with a varifocal motorized-zoom lens and onboard analytics, built to deliver prominent coverage in a variety of lighting and weather conditions.
SKU CB52-256E-HW
Total MSRP$2,558
Hardware $1,899 + 3-year cloud license $659
Retention
Onboard storage — no NVR or extra recorder required.
Cloud license term
Hardware$1,899
Software · 3-yr cloud license$659
Total MSRP$2,558
10-Year Hardware Warranty on this Verkada camera
Authorized Verkada reseller · cloud licensing configured at checkout
Overview
The Verkada CB52-E is an outdoor 5MP bullet camera with a varifocal motorized-zoom lens and onboard analytics, built to deliver prominent coverage in a variety of lighting and weather conditions.
- 1/2.8" progressive CMOS image sensor at 5MP resolution (2688 x 1944)
- Varifocal lens with 2.86x optical zoom (2.8mm–8mm focal length) and 30m / 98ft IR range for nighttime viewing
- Onboard Ambarella CV25S88 processor for people and vehicle analytics, AI-powered search, and AI-powered alerts
- License plate recognition (LPR) capturing plates at speeds up to 80 mph / 128 kph
- 256GB to 2TB of onboard storage with redundant cloud backup and unlimited cloud archiving
- Factory-sealed aluminum unibody with IP67 weather rating and IK10 impact rating
- Operable from -40°C to 50°C / -40°F to 122°F with a built-in pigtail connector for simplified PoE cabling
Specifications
- Image sensor
- 1 / 2.8" Progressive CMOS
- Sensor resolution
- 5MP (2688 x 1944)
- Lens type
- Varifocal; motorized zoom
- Focal length
- 2.8mm–8mm
- Aperture
- F1.3–F2.4
- Iris
- P–Iris
- Field of view (after LDC)
- Horizontal: 99° - 41° (95° - 39°); Vertical: 74° - 30° (74° - 30°); Diagonal: 125° - 50° (110° - 48°)
- Minimum illumination
- 0.009 lux @ F1.9 (Color); 0 lux with IR Illuminators on
- IR range
- 30m / 98ft
- Day/night
- IR-cut filter for day and night function
- Compression
- H.265, H.264
- Frame rate
- 24fps
- CPU
- Ambarella CV25S88
- Onboard storage
- Capacity: From 256GB to 2TB; Card: MicroSD, SDXC
- Power input
- With IR: IEEE 802.3at Type 2 PoE+; Without IR: IEEE 802.3af Type 1 PoE; Extended temperature range: IEEE 802.3at Type 2 PoE+
- Power consumption
- With IR: 37-57V, 0.38-0.25A, 14.0W; Without IR: 37-57V, 0.09-0.06A, 3.5W; Extended temperature range: 37-57V, 0.61-0.37A, 22.6W
- Connectivity
- RJ-45 cable connector for network/PoE connection; 10 / 100 Mbps
- Operating temperature
- -40°C to 50°C / -40°F to 122°F
- Humidity
- 0 to 90%
- Certifications
- FCC, ICES, CE, UKCA, RCM, VCCI, KCC, BIS, NOM, UL/cUL/IEC 62368-1, IP67 weather rating, IK10 impact rating, FY2019 NDAA compliant
- Body
- Aluminum
- Weight
- Camera: 1464g / 51.64oz; Mount plate: 33g / 1.16oz
- Dimensions
- L: 254.0mm / 10.00in, Ø: 85.0mm / 3.35in
