Alarms · BP52

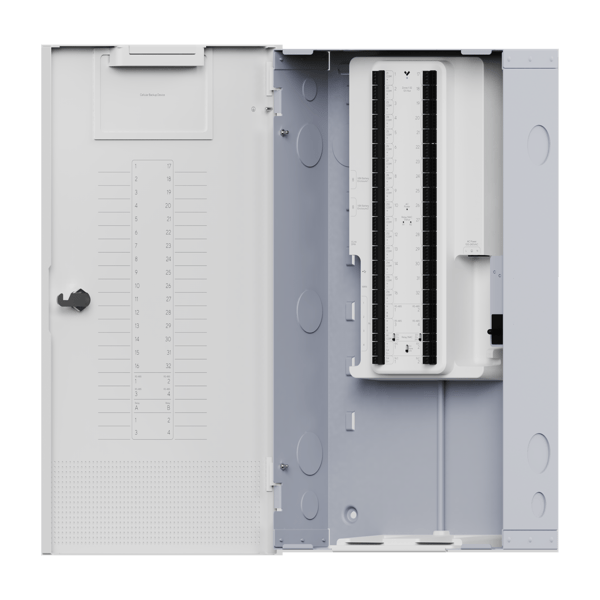

BP52 32-Zone Alarm Panel
The **Verkada BP52** is a cloud-managed, 32-zone alarm panel that acts as the central brain of a Verkada alarm system, replacing traditional panels and taking over existing sensors without new wiring.
SKU BP52-HW-NA
MSRP$899
Price is for this item.
Authorized Verkada reseller · cloud licensing configured at checkout
Overview
The Verkada BP52 is a cloud-managed, 32-zone alarm panel that acts as the central brain of a Verkada alarm system, replacing traditional panels and taking over existing sensors without new wiring.
- 32 inputs for wired sensors, each with 12V AUX power, plus a built-in VLink hub that connects up to 160 wireless sensors
- 4 RS485 outputs for keypads and expanders, 2 relay outputs for sirens and strobes, and a built-in 4-port PoE switch for hubs and keypads
- Highly available: 2 built-in slots for VBX batteries and a built-in mount for a cellular backup communicator (both sold separately)
- Cloud-managed through Command, with live sensor status on an interactive zone map, automatic health checks, offline device alerts, and automatic firmware updates
- Conventional (IDC) and addressable (SLC) fire inputs, tamper detection, and switch-selectable relay voltage
- 10-year warranty
Specifications
- Alarm inputs
- 32x inputs with 12V DC aux power; compatible with variable EOL resistors (1kΩ - 4.7kΩ)
- Relay outputs
- 2x relays for siren/strobe/NAC with switch-selectable voltage & optional dry config: 12 or 24V DC wet operation; 24V DC dry operation
- Conventional fire input (IDC)
- 2x 2-wire or 2x 4-wire Initiating Device Circuit inputs (conventional) with switch-selectable 12/24V DC aux power
- Addressable fire input (SLC)
- 2x 2-wire Signaling Line Circuit inputs (addressable) with 36V DC aux power
- RS485 outputs
- 4x RS485 outputs with 36V DC aux power
- PoE outputs
- 4x PoE+ / 802.3at capable ports, 60W total power budget
- Wireless communication
- VLink sub-GHz transceiver
- Tamper detection
- Yes
- Power input
- 100-240V AC (50-60Hz); 2x battery slots (for ACC-VBX-200WH); 2x battery enclosure ports (for ACC-VBX-ENC)
- Power consumption
- 175W max; See Output Specifications table for load limits
- Uplink
- 100/1000 Mbps RJ45 port, USB 2.0 (for ACC-CEL-LTE-2)
- Dimensions (with enclosure)
- Height: 21.9in / 55.7cm; Width: 12.7in / 32.3cm; Depth: 4.6in / 11.6cm
- Weight
- 16.2lb / 7.3kg
- Operating temperature and humidity
- 32 to 122° F / 0 to 50° C; 0-90% RH non-condensing
- Certifications
- FCC Part15B Class A, IC, ICES-003 Class A, CE, UKCA, RCM, CEC BC, UL/IEC 62368-1, CSA NO22.2 62368-1
- Included accessories
- AC cable, VLink antenna, 32x 1kΩ EOL resistors, wall mount, 2x keys for built-in lock, flathead screwdriver, 4x plywood screws
- Mounting Options
- Wall mount
- Warranty
- 10 years
