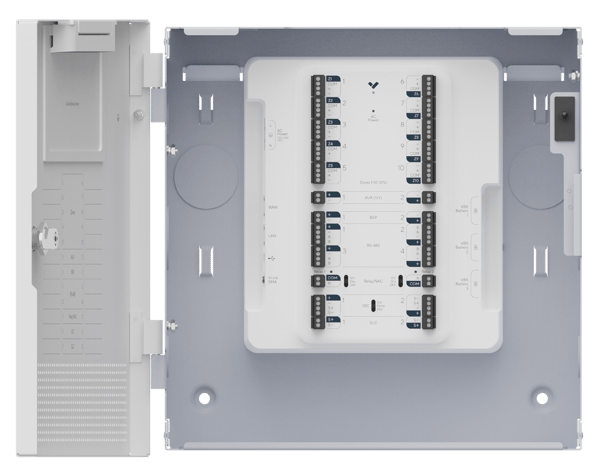

Verkada BP42 10-Zone Alarm Panel

The Verkada BP42 is a cloud-managed, 10-zone alarm panel that acts as the central brain of a Verkada alarm system for smaller sites.

Reviews & comments · Join the conversation
From$999HARDWARE

Required license priced separately. Choose your configuration below.

Get a volume quote
Overview

The Verkada BP42 is a cloud-managed, 10-zone alarm panel that acts as the central brain of a Verkada alarm system for smaller sites. It takes over existing wired sensors, extends coverage with BE32 expanders, and supports Verkada's new Better Sensor Protocol (BSP) for addressable sensor loops. A built-in VLink hub connects up to 160 wireless sensors, and a built-in battery slot plus external ports accept up to three VBX2 backup batteries so the panel keeps running through a power outage.

  • 10 wired sensor inputs, each with 12V aux power
  • 2 BSP outputs for addressable sensor loops; 2 RS-485 outputs for keypads and expanders
  • 2 relay outputs for sirens and strobes, plus a built-in PoE port for a hub or keypad
  • Built-in VLink hub for up to 160 wireless sensors
  • Optional LTE cellular backup (ACC-CEL-LTE-2) and up to three VBX2 batteries (sold separately)
  • Live sensor status, zone mapping and partitions in Verkada Command, with automatic firmware updates and offline-device alerts
  • 10-year warranty

Technical detail

Product specifications

Download datasheet (PDF)
Alarm inputs
10x wired zones with 12V DC aux power; compatible with variable EOL resistors (1kΩ–4.7kΩ)
BSP outputs
2x, for addressable sensor loops (0.4A max each)
RS-485 outputs
2x, for keypads or expanders
Relay outputs
2x for sirens/strobes; switch-selectable 12V or 25V DC wet, or dry
Fire alarm inputs
2x conventional IDC (2- or 4-wire) with 12/24V DC aux; 2x addressable SLC with 36V DC aux (SLC: future software support)
PoE output
1x PoE+ port for a hub or keypad
Wireless
Built-in VLink sub-GHz hub — up to 160 wireless sensors
Cellular backup
Optional, via ACC-CEL-LTE-2 on the built-in USB 2.0 port (add-on license required)
Backup battery
Built-in slot + ports for up to 3x VBX2 75Wh batteries (sold separately)
Uplink
100/1000Mbps RJ45
Power input
100–240V AC, 50–60Hz; 90W max consumption
Tamper detection
Yes
Dimensions (with enclosure)
12.6 × 12.6 × 4.7 in / 32.1 × 32.1 × 12 cm
Weight
10.6 lb / 4.8 kg
Operating temperature
32–122°F / 0–50°C, 0–90% RH non-condensing
Certifications
FCC Part 15B Class A, ICES-003 Class A, CE, UKCA, RCM, UL/IEC 62368-1, CSA C22.2 62368-1, UL 864, UL 2610 (pending at launch)
In the box
AC cable, AC terminal block, VLink antenna, 10x 1kΩ EOL resistors
Availability
New for fall 2026 — Verkada begins shipping October–November 2026
Warranty
10 years
