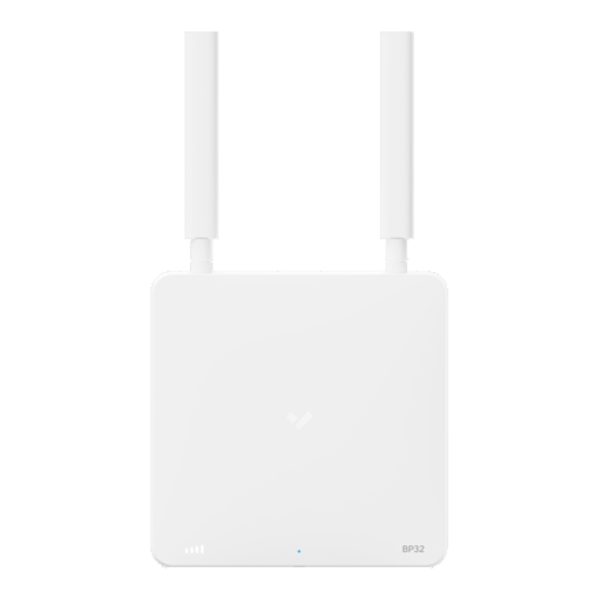

BP32 Wireless Alarm Panel
The **Verkada BP32** is a cloud-managed wireless alarm panel that acts as the central brain of a Verkada wireless alarm system, powered by a single PoE cable and compact enough to fit discreetly in tight spaces.
SKU BP32-HW-NA
MSRP$799
Price is for this item.
Authorized Verkada reseller · cloud licensing configured at checkout
Overview
The Verkada BP32 is a cloud-managed wireless alarm panel that acts as the central brain of a Verkada wireless alarm system, powered by a single PoE cable and compact enough to fit discreetly in tight spaces.
- Built-in VLink sub-GHz hub supports up to 160 wireless sensors, with unlimited expansion via WH52 hubs, WH32 repeaters, and BK22 keypads
- Operates locally with all alarm and access control devices on site for reliability and offline functionality during network outages
- Built-in CAT 4 LTE backup communicator with a Verkada SIM included keeps the panel online during network outages
- Internal 57.6 Wh rechargeable LiFePO4 backup battery provides up to 30 hours of backup with typical use
- Powered by IEEE 802.3at PoE+ (with RS485 output) or 802.3af PoE (no RS485 output); 3.1W standby, 24.5W max
- Cloud-managed through Verkada Command with automatic health checks every minute, real-time alerts, and automatic firmware updates
- 10-year warranty
Specifications
- Power Input
- IEEE 802.3at PoE+ (with RS485 output); IEEE 802.3af PoE (no RS485 output)
- Power Consumption
- 3.1W standby, 24.5W max
- Uplink
- 100/1000 Mbps RJ45 port
- Backup Battery (Internal)
- 57.6 Wh rechargeable LiFePO4 battery; 30 hours of backup with typical use and no RS485 output
- Wireless Communication
- VLink sub-GHz transceiver
- RS485 Output
- 1x RS485 output with 36V DC aux power (167 mA max); 802.3at PoE input required for aux power
- Switches
- Power switch, Mic disable switch, Tamper switch
- Modem
- CAT 4 LTE modem
- LTE Bands
- LTE FDD: 2, 4, 5, 12, 13, 14, 66, 71; HSPA+: 2, 4, 5
- SIM
- 1x Nano 4FF SIM slot; Verkada SIM included (BYO SIM not supported)
- Antenna
- 2x paddle antennas (SMA connectors)
- RF & EMC
- FCC, IC
- Safety
- UL/cUL/IEC 62368-1, CSA C22.2 No. 62368-1
- Cellular Certifications
- PTCRB, T-Mobile, AT&T
- Dimensions
- Main unit: H 7.5in / 19.1cm, W 7.5in / 19.1cm, D 1.8in / 4.4cm. With antennas: H 13.5in / 34.3cm, W 7.5in / 19.1cm, D 1.8in / 4.4cm
- Weight
- 2.8lb / 1.3kg
- Operating temperature and humidity
- 32 to 122° F / 0 to 50° C, 0-90% RH non-condensing
- Included accessories
- 2x paddle antennas, mount plate, T10 Security Torx screwdriver, 4x wall screws, 4x wall anchors
- Mounting options
- Wall or ceiling mount
- Warranty
- 10 years
