Alarms · BK22

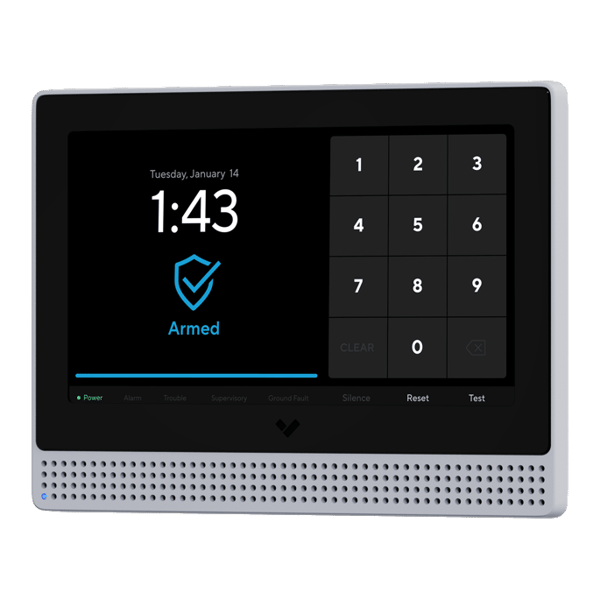

BK22 Touchscreen Alarm Keypad (New Alarms
The **Verkada BK22** is a touchscreen alarm keypad with a built-in VLink hub for wireless sensors that, in addition to arming and disarming, lets keypad users view live camera feeds and see the status of their sensors.
SKU BK22-HW
MSRP$399
Price is for this item.
Authorized Verkada reseller · cloud licensing configured at checkout
Overview
The Verkada BK22 is a touchscreen alarm keypad with a built-in VLink hub for wireless sensors that, in addition to arming and disarming, lets keypad users view live camera feeds and see the status of their sensors.
- 7" LED-backlit multi-touch display at 1024 RGB x 600 resolution
- Built-in VLink sub-GHz hub connects up to 160 wireless sensors
- Two-way audio (73dB speaker, dual microphones) for SOC teams to communicate with people on site during an emergency; supported only over PoE/LAN
- Connects to the BP32 or BP52 alarm panel via RS485 or LAN, reusing existing keypad wiring or an ethernet drop
- Cloud-managed via Command web or mobile app, with user-specific key codes and Okta/Azure AD integration to auto-revoke codes for offboarded employees
- Powered by RS485 (10-36V DC) or IEEE 802.3af PoE, 13W max consumption, with tamper detection and a 10-year warranty
Specifications
- Display
- 7" LED-backlit multi-touch, 1024 RGB x 600 resolution
- Audio
- 73dB speaker (at 1m distance), dual microphones; not supported over RS485
- Wireless
- VLink sub-GHz transceiver; wireless repeating not supported
- VLink hub capacity
- Connect up to 160 wireless sensors with the built-in VLink hub
- Uplink
- 10/100 Mbps RJ45 port
- Power input
- 10-36V DC (via RS485); IEEE 802.3af PoE
- Power consumption
- 13W max
- Tamper detection
- Yes
- Operating temperature and humidity
- 32 to 104° F (0 to 40° C); 0-90% RH non-condensing
- Dimensions
- Height: 5.3in / 13.5 cm; Width: 7.2in / 18.2 cm; Depth: 1.1in / 2.8 cm
- Weight
- 1.3lb / 0.6kg
- Certifications
- FCC, IC, CE, UKCA, RCM, UL/IEC 62368-1, CSA NO22.2 62368-1
- Mounting options
- Wall mount
- Included accessories
- Wall mount plate, T10 Security Torx screwdriver, 4x wall screws, 4x wall anchors
- Warranty
- 10 years
