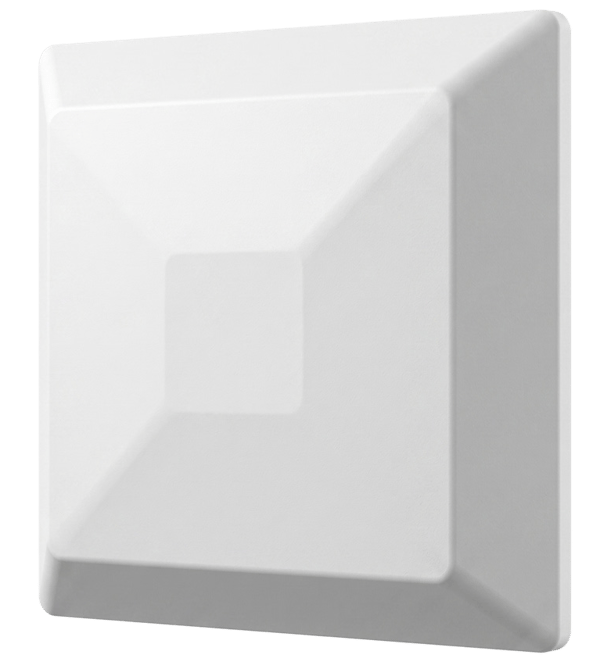

Verkada AW33 VLink External Antenna - Directional

The Verkada ACC-WH-ANT-1 is an optional directional external antenna for the AW33 Wireless Access Controller.

Reviews & comments · Join the conversation
From$799HARDWARE
Get a volume quote
Overview

The Verkada ACC-WH-ANT-1 is an optional directional external antenna for the AW33 Wireless Access Controller. It focuses the VLink signal along a single aimed path, increasing usable wireless range 2–2.5 times in that direction — for a door beyond the reach of the AW33's internal antenna, such as a detached building, outbuilding, gatehouse or parking structure with no network connection of its own. Aiming the antenna at the target lock recovers signal that would otherwise be lost to distance or intervening building materials.

Once the external antenna is installed, the AW33's internal hub is disabled — the controller uses one or the other.

  • 7.0 dBi peak gain, 902–928 MHz
  • Rated for indoor and outdoor mounting, −40°F to 158°F
  • 10-year warranty

Technical detail

Product specifications

Download datasheet (PDF)
Compatible with
AW33 Wireless Access Controller
Type
Directional
Range extension
2–2.5x in the aimed direction
Operating frequency
902–928 MHz
Peak gain
7.0 dBi
Location
Indoor / outdoor
Dimensions
10.6 × 10.6 × 2.3 in / 270 × 270 × 59 mm
Weight
2.0 lb / 920 g
Operating temperature
−40°F to 158°F / −40°C to 70°C
Availability
New for fall 2026 — Verkada begins shipping October–November 2026
Warranty
10 years
