Accessories

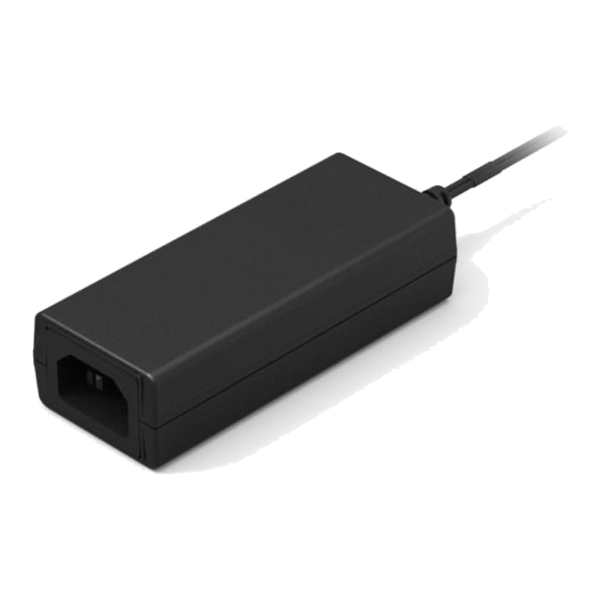

30W Wall Adapter
The **Verkada ACC–WA–30W/12V** switching power supply provides 30 watts of power for the AC12 one-door controller.
SKU ACC-WA-30W-NA
MSRP$89
Price is for this item.
Authorized Verkada reseller · cloud licensing configured at checkout
Overview
The Verkada ACC–WA–30W/12V switching power supply provides 30 watts of power for the AC12 one-door controller.
- 12 VDC output voltage with 30 watts continuous output power
- AC input voltage rating 100Vac to 240Vac, AC input frequency 47Hz to 63Hz
- Output current 2.5 Adc max with over current and over voltage protection
- DOE Standard level VI and CoC Tier 2 efficiency
- Safety requirement UL62368-1, CE, UL/CUL, UKCA, NRCAN; EMI FCC Class B, ICES003
- 59.06in / 1500mm output cable; weighs 0.35lb / 160g
Specifications
- Output voltage
- 12 Vdc
- Output power
- 30 watts continuous
- Output current
- 2.5 Adc max
- Output ripple
- 120mVp-p max
- Line and load regulation
- +-5%
- AC input voltage rating
- 100Vac to 240Vac
- AC input frequency
- 47Hz to 63Hz
- AC input current
- 0.8Arms max @ 120VAC; 0.5Arms max @ 240VAC
- Efficiency
- DOE Standard level VI and CoC Tier 2
- Over current protection
- Auto restart mode without damage
- Over voltage protection
- 20V max. the output should be auto restart during the OVP condition
- Turn on delay time
- 3S max. @ full load 115 Vac / 60 Hz
- Operating temperature
- 30°F -104°F / 0°C - 40°C
- Operating relative humidity
- 20% to 90%
- Storage temperature
- -4°F - 175°F / -20°C - 75°C
- Safety requirement
- UL62368-1, CE, UL/CUL, UKCA, NRCAN
- EMI requirement
- FCC Class B, ICES003
- Input connector
- IEC C14
- Output connector
- Two tin plated wires
- Output cable length
- 59.06in / 1500mm
- Dimension
- Length: 4.07in / 103.4mm, Width: 1.65in / 42mm, Height: 1.12in / 28.7mm
- Weight
- 0.35lb / 160g
