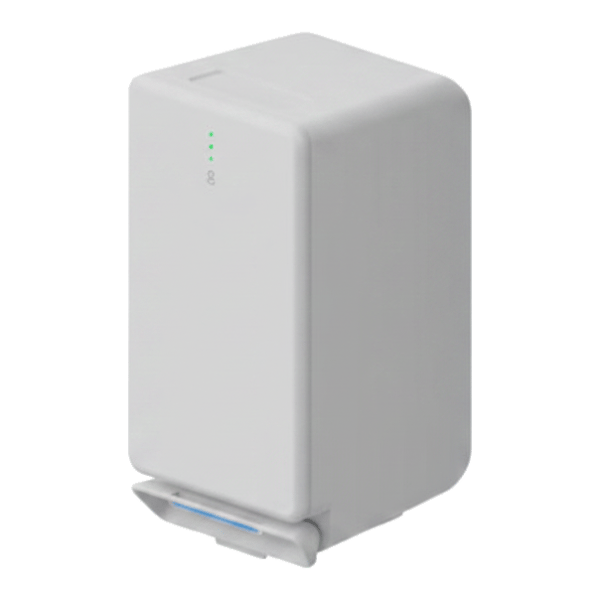

Backup Battery for BP52 Alarm Panel
The **Verkada ACC-VBX-200WH** is an advanced LiFePO4 backup battery for the BP52 Alarm panel, delivering longer lifespan and higher energy capacity than traditional sealed lead acid (SLA) batteries.
SKU ACC-VBX-200WH
MSRP$199
Price is for this item.
Authorized Verkada reseller · cloud licensing configured at checkout
Overview
The Verkada ACC-VBX-200WH is an advanced LiFePO4 backup battery for the BP52 Alarm panel, delivering longer lifespan and higher energy capacity than traditional sealed lead acid (SLA) batteries.
- Lithium iron phosphate (LiFePO4) chemistry that significantly outperforms traditional SLA batteries on lifespan and energy capacity
- Rated capacity of 202.2 Wh (7.9 Ah) at 68° F (20° C); output voltage 20-28.8V (25.6V nominal)
- 7.5A max continuous discharge current — can power the BP52 at max output
- Installs into the BP52's two integrated battery slots or into external ACC-VBX-ENC enclosures, supporting up to six 200Wh batteries (1,200Wh) per panel
- Battery health and state of charge are viewable in Verkada Command; 3 battery level LEDs onboard
- Covered by an industry-leading 10-year warranty
Specifications
- Chemistry
- Lithium iron phosphate (LiFePO4)
- Output voltage
- 20-28.8V (25.6V nominal)
- Rated capacity
- 202.2 Wh (7.9 Ah) at 68° F (20° C)
- Charge current
- 0.4-4.2A (1.58A nominal)
- Discharge current
- 7.5A max (continuous) — Can power BP52 at max output
- Operating temperature and humidity
- 32 to 122° F / 0 to 50° C, 0-90% RH non-condensing
- Storage temperature and humidity
- 3 months: -4 to 95° F / -20 to 35° C; 12 months: -4 to 77° F / -20 to 25° C; 0-65% RH non-condensing; Maximum storage duration: 1 year
- Dimensions
- Height: 7.3in / 18.6cm; Width: 3.6in / 9.1cm; Length: 4.1in / 10.3cm
- Weight
- 4.6 lb / 2.1 kg
- LEDs
- 3 battery level LEDs
- Shipment capacity
- 15%-30% state of charge
- Certifications
- CP65, Rohs, Battery Directive, CE, RCM, IEC 62133, UL 2054, UL/IEC 62368-1, CSA NO22.2 62368-1
- Warranty
- 10 years
