PoE++ (802.3bt-2018) Injector

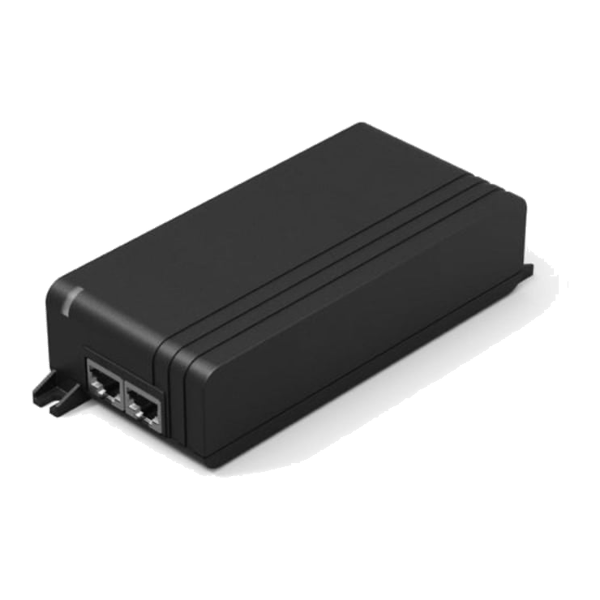

Name: Verkada PoE++ (802.3bt-2018) Injector
Brand: Verkada
Availability: InStock

The **Verkada ACC-POE-60WHS** is a high surge (HS) PoE++ injector that converts two inputs - a power cable and an Ethernet cable - into a single PoE++ port (IEEE 802.3bt/at/af standard) delivering up to 60W of power with a 6kV 100kHz Transient Ring Wave.

SKU ACC-POE-60WHS-NA

MSRP

$179

Price is for this item.

Get a quote

Authorized Verkada reseller · cloud licensing configured at checkout

Overview

The Verkada ACC-POE-60WHS is a high surge (HS) PoE++ injector that converts two inputs - a power cable and an Ethernet cable - into a single PoE++ port (IEEE 802.3bt/at/af standard) delivering up to 60W of power with a 6kV 100kHz Transient Ring Wave.

IEEE 802.3bt compliant (type 4, class 6 - 60W maximum), backward compatible with IEEE 802.3at/af devices
Designed to power the AC12 one-door controller; safe to use with any IEEE 802.3at/af Verkada device
Output power of 60W over 4-pairs, supporting 10/100/1000 Base-T applications
6kV 100kHz Transient Ring Wave surge protection (UL294 Eighth Edition, for PoE only)
Safe: low-power devices receive only the power they need, with automatic detection and protection of non-standard Ethernet terminals
Ships with a US power cord (US customers) and a UK power cord (Europe customers); wall mountable

Specifications

Model Number: ACC-POE-60WHS
Standard: IEEE 802.3bt compliant (type 4, class 6 - 60W maximum); IEEE 802.3at/af backward compatible
Output power: 60W over 4-pairs
Data rates: Supports 10/100/1000 Base-T applications
AC input operating voltage: 100VAC to 240VAC
AC input frequency: 47Hz to 63Hz
AC input current and maximum load: 1.5Arms maximum at 90VAC
Output voltage: +56VDC (nominal) +1/-3V (57-53VDC)
DC output current (maximum load): 535mA for IEEE802.3bt; 1.07A for IEEE802.3bt type 4, class 6 (PoE++)
Turn on delay time: 7 sec Max @ Min. load including detection @ 120VAC 60 Hz
Dimensions: Length: 4.07in / 103.4mm; Width: 1.65in / 42mm; Height: 1.12in / 28.7mm
Weight: 0.59lb / 270g
AC inlet: IEC320 C14
Output connector: Female RJ45
Safety requirements: UL62368-1 ed3; CAN/CSA C22.2 No.62368-1:19; CB IEC 62368-1:2020+A11:2020; CE EN 62368-1:2020+A11:2020
EMC: IEC61000-4-2, 3, 4, 5, 6, 11; IEC61000-3-2; UL294 Eighth Edition (6kV 100kHz Transient Ring Wave) - for PoE only
Operating temperature: -4°F - 104°F / -20°C - 40°C
Relative humidity: Operation 10% to 90%; Storage 5% to 95%
MTBF: MTBF>100K hrs @ max Load (MIL-HDBK-217F)
