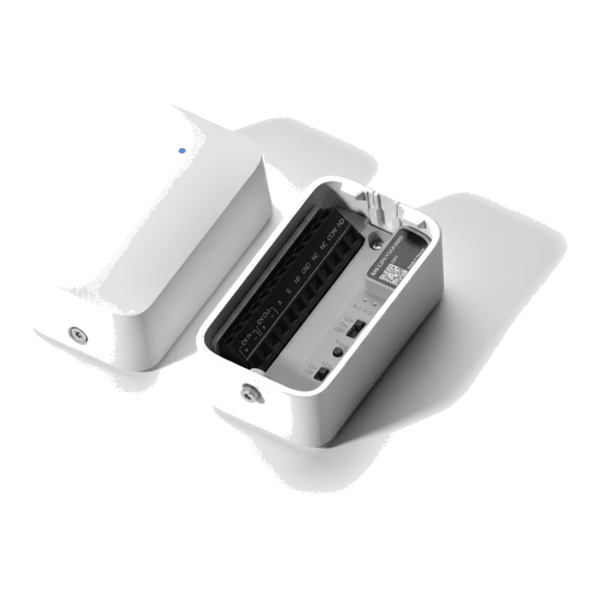

Security Relay
The **Verkada Security Relay (ACC-IOX-RELAY)** simplifies intercom and access control installations by providing direct power to lock hardware, eliminating the need for an external power supply when devices are configured as door controllers.
SKU ACC-IOX-RELAY
MSRP$199
Price is for this item.
Authorized Verkada reseller · cloud licensing configured at checkout
Overview
The Verkada Security Relay (ACC-IOX-RELAY) simplifies intercom and access control installations by providing direct power to lock hardware, eliminating the need for an external power supply when devices are configured as door controllers.
- Compatible with all Verkada intercoms and the AF64 Access Station Pro
- Moves sensitive circuitry to the secure interior side of the door, protecting against tampering and unauthorized entry if the exterior device is damaged
- I/O: 2x inputs, 1x RS-485, and 1x 12V output @ 0.5A
- 1x wet relay with switch-selectable power: 12VDC @ 0.75A max, 24VDC @ 0.5A max, or dry operation with 30VDC @ 1A max passthrough
- Built-in tamper detection; mounts to a wall, ceiling, or junction box (indoor use only, IK07)
- Backed by a 10-year warranty
Specifications
- Dimensions
- Length: 1.9in / 47.4mm; Width: 1.2in / 31mm; Height: 3.1in / 79.8mm
- Weight
- 0.2lb / 86g
- Material
- Polycarbonate
- Color
- White
- Power Input
- DC 10V - 13.6V
- Power Specs
- 0.18W standby, 20W max (0.015A - 1.67A @ 12DC input)
- Inputs / Outputs
- 2x Inputs; 1x RS-485; 1x 12V Out @ 0.5A
- Relay Output
- 1x wet relay with switch-selectable power: 12VDC operation @ 0.75A max; 24VDC operation @ 0.5A max; Dry operation with 30VDC @ 1A max passthrough
- Operating Temperature
- -10 °C-50°C, 5-85% relative humidity
- Tamper Detection
- Yes
- Mounting Options
- Wall, ceiling, or junction box
- Compliance
- FCC Part 15B Class B, ICES-003 Class B, CE, UKCA, VCCI, RCM, IK07, indoor use only
- Box Includes
- T10 security Torx hex key, mounting hardware kit, strain relief zip tie
- Box Dimensions
- Length: 3.9in / 100mm; Width: 2.2in / 55mm; Height: 5.1in / 130mm
- Box Weight
- 0.4lb / 180g
- Availability
- USA, CAN, UK, EU, AUS, NZ
- Warranty
- 10 years
