IR Illuminator for Bullet Camera

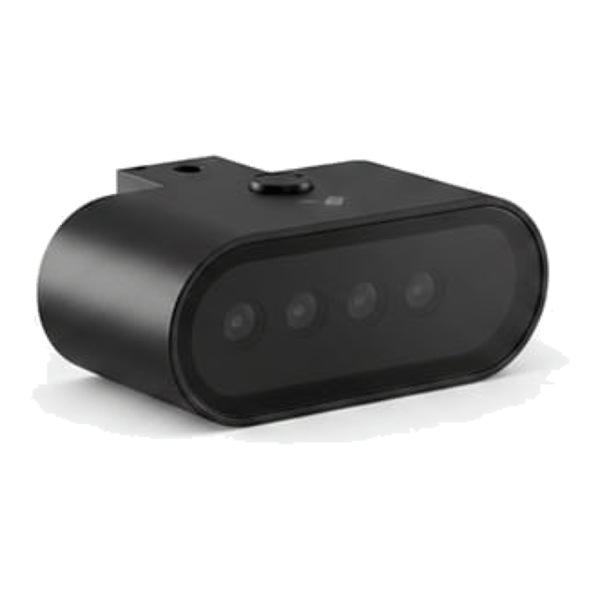

The **Verkada ACC-CAM-CB-IR-1** is an external infrared (IR) illuminator that attaches to the CB63-E and CB63-TE 4K bullet cameras and is managed within Command, extending IR range to capture detail at longer distances in low-light conditions.
SKU ACC-CAM-CB-IR-1
MSRP$349
Price is for this item.
Authorized Verkada reseller · cloud licensing configured at checkout
Overview
The Verkada ACC-CAM-CB-IR-1 is an external infrared (IR) illuminator that attaches to the CB63-E and CB63-TE 4K bullet cameras and is managed within Command, extending IR range to capture detail at longer distances in low-light conditions.
- Extends the CB63-E's IR range from 50m / 164ft to 75m / 246ft, and the CB63-TE telephoto bullet camera's range from 100m / 328ft to 150m / 492ft at maximum intensity
- Connects to the underside of the CB63-E and CB63-TE using the built-in attachment interface
- Powered by the camera itself, which must receive PoE++ (IEEE 802.3bt Type 3) for the attachment to function
- Optimizes nighttime performance when the camera is optically zoomed in
- Aluminum construction; weighs 440g / 15.52oz
- Backed by a 10-year warranty
- Only compatible with the CB63-E and CB63-TE bullet cameras
Specifications
- Model
- ACC-CAM-CB-IR-1
- Type
- IR Illuminator for 4K Bullet Camera
- Compatibility
- Only compatible with the CB63-E and CB63-TE
- IR range
- 75m / 246ft with CB63-E; 150m / 492ft with CB63-TE
- Power input
- IEEE 802.3bt Type 3 PoE++ (powered by CB63-E or CB63-TE)
- Power consumption
- Attachment (including camera): 43-57V, 1.07-0.81A, 45.9W. Attachment (excluding camera): 43-57V, 0.81-0.61A, 34.8W. Extended temperature range (including camera): 43-57V, 1.14-0.86A, 49.0W
- Dimensions
- L: 180.0mm / 7.09in, W: 71.0mm / 2.80in, H: 50.0mm / 1.97in
- Weight
- 440g / 15.52oz
- Material
- Aluminum
- Included accessories
- T25 security Torx L-key
- Box dimensions
- L: 220.0mm / 8.66in, W: 114.0mm / 4.49in, H: 61.0mm / 2.40in
- Box weight
- 600g / 21.16oz
- Warranty
- 10 years
