Outdoor Directional Wi-Fi Antenna for GW Series

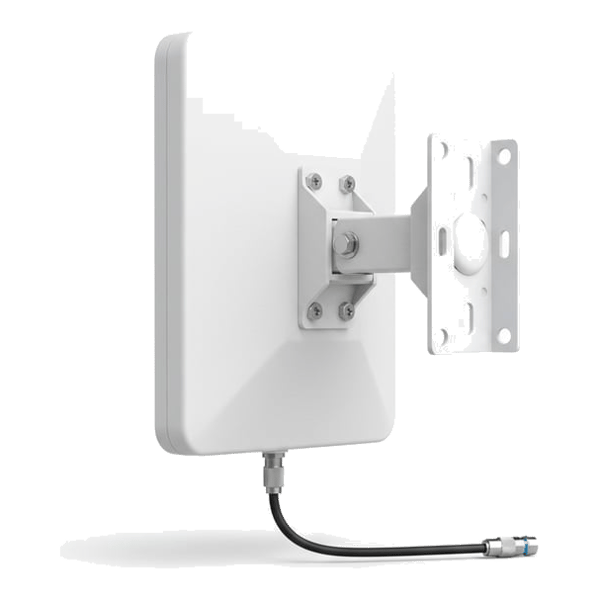

The **Verkada ACC-ANT-20** is an outdoor directional Wi-Fi antenna that improves signal strength on the GW31-E Wi-Fi Gateway when pointed toward the correct Wi-Fi access point.
SKU ACC-ANT-20
MSRP$369
Price is for this item.
Authorized Verkada reseller · cloud licensing configured at checkout
Overview
The Verkada ACC-ANT-20 is an outdoor directional Wi-Fi antenna that improves signal strength on the GW31-E Wi-Fi Gateway when pointed toward the correct Wi-Fi access point.
- Dual-band frequency range: 2.4 - 2.5 GHz and 5.15 - 5.85 GHz
- High peak gain per range: 11.4 dBi (2.4 GHz) and 13.2 dBi (5 GHz)
- Vertical / horizontal polarization with 2x N-Type male plug connectors
- Rugged outdoor operating temperature range of -30°C to 70°C (-22°F to 158°F)
- Wall or pole mounting, with pole straps (3 - 4" diameter) and #8 wall screws plus drywall anchors included
- Backed by a 10 year warranty
Specifications
- Model Number
- ACC-ANT-20
- Frequency Range
- 2.4 - 2.5 GHz / 5.15 - 5.85 GHz
- Peak Gain (Per Range)
- 11.4 dBi / 13.2 dBi
- Polarization
- Vertical / Horizontal
- Peak Beamwidth (Per Range)
- Horizontal: 68°, Vertical: 25° / Horizontal: 61°, Vertical: 13°
- Connectors
- 2x N-Type male plugs
- Cable Length
- 100cm / 39"
- Weight
- 1.4kg / 3.0lbs
- Dimensions
- Length: 300mm / 11.8", Width: 200mm / 7.9", Height: 110mm / 4.3"
- Operating Temperature Range
- -30°C to 70°C / -22°F to 158°F
- Mounting Options
- Wall or pole mounting. Pole straps (3 - 4" diameter) and #8 wall screws with drywall anchors included
- Warranty
- 10 years
